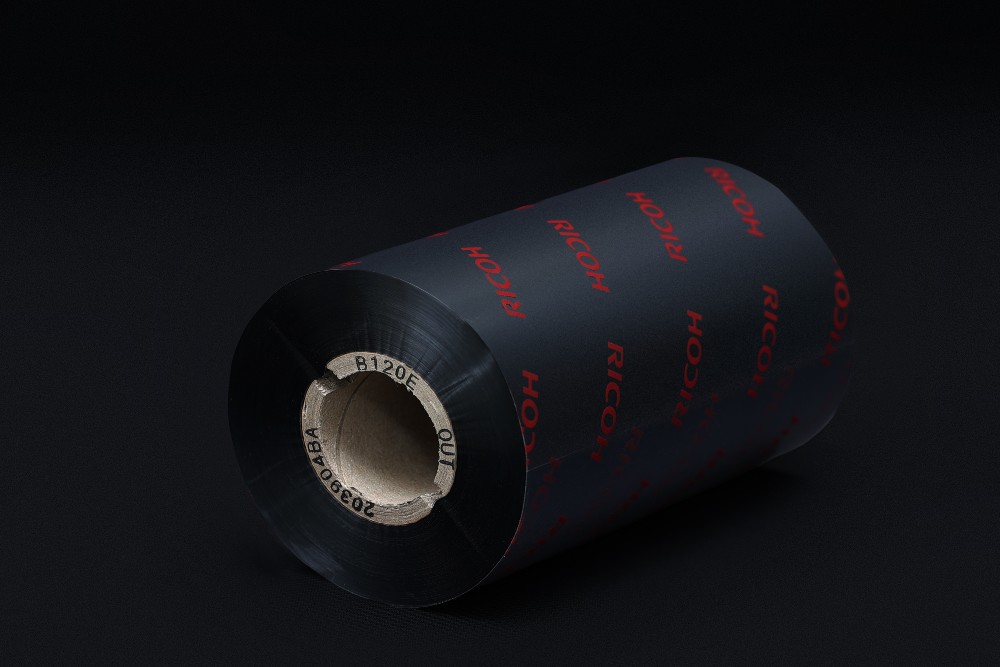

B120E Extreme Durable Wax Resin

High resistance to smear and chemicals
Excellent at high-speed printing as high as 10ips
Maximize barcode scanning rates
Minimize static electricity and ink flaking problems

Ribbon Properties

Total ribbon thickness: 9 μm
Polyester film thickness: 4.5 μm
Friction coefficient: < 0.035
Ink melting point: 84°C
Tearing resistance: > 200N/mm²
Transmission density: 1.00 mini

Download Datasheet Request sample roll

Application

B120E Durability

Storage Condition

Usage conditions: 5 to 35°C at 30 to 85% of relative humidity.

Storage conditions: Keep indoors avoiding high temperature, high humidity, direct sunlight.

Storage life: 24 months after production.

Printed Image Durability

TESTS	RESULT
Smear + heat 30°C Smear with cardboard (weight 1kg - 50 back & forwards)	ANSI A
Heat (110°C) Heat gradient 3.6kgF/cm²	No ink on fabric
Scratch 50 back and forwards with a rubbing tester	ANSI A
Light Xenon lamp at 650 W/m²	ANSI A
Water 24 hours in water	ANSI A

Certificates

TSCA RoHS WEEE REACH (EC) 1935/2004

Related products

***The above data represents product averages, allowing for industry accepted variances. These products should be tested in the end-use conditions to ensure that they meet the requirements of the specific application. Specifications may change without notice.
