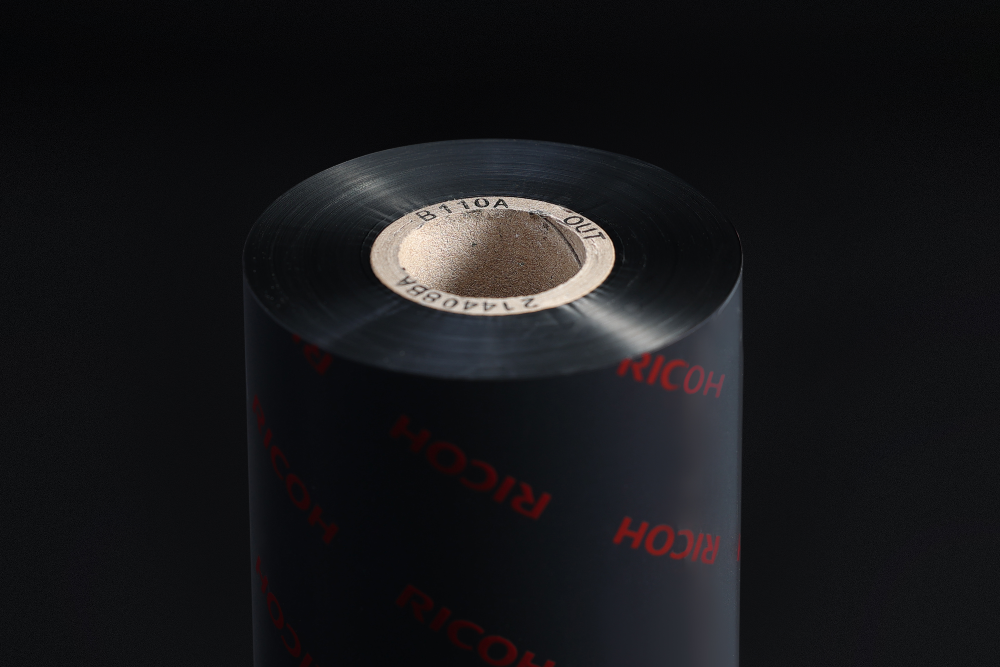

B110A Extreme Durable Wax Resin

All purpose wax resin TTR
High resistance to smear and chemicals
Maximize barcode scanning rates
minimize static electricity and ink flaking problem

Ribbon Properties

Total ribbon thickness: 9 μm
Polyester film thickness: 4.5 μm
Friction coefficient: < 0.035
Ink melting point: 84°C
Tearing resistance: > 200N/mm²
Transmission density: 1.00 mini

Download datasheet Request sample roll

Application

B110A Durability

Storage Condition

Usage conditions: 5 to 35°C at 30 to 85% of relative humidity.

Storage conditions: Keep indoors avoiding high temperature, high humidity, direct sunlight.

Storage life: 24 months after production.

Printed Image Durability

TESTS	RESULT
Smear + heat 50°C Smear with cardboard (weight 1kg - 50 back & forwards)	ANSI A
Heat (120°C) Heat gradient 3.6kgF/cm²	No ink on fabric
Scratch 50 back and forwards with a rubbing tester	ANSI A
Light Xenon lamp at 650 W/m²	ANSI A
Water 24 hours in water	ANSI A

Certificates

Related products

***The above data represents product averages, allowing for industry accepted variances. These products should be tested in the end-use conditions to ensure that they meet the requirements of the specific application. Specifications may change without notice.
