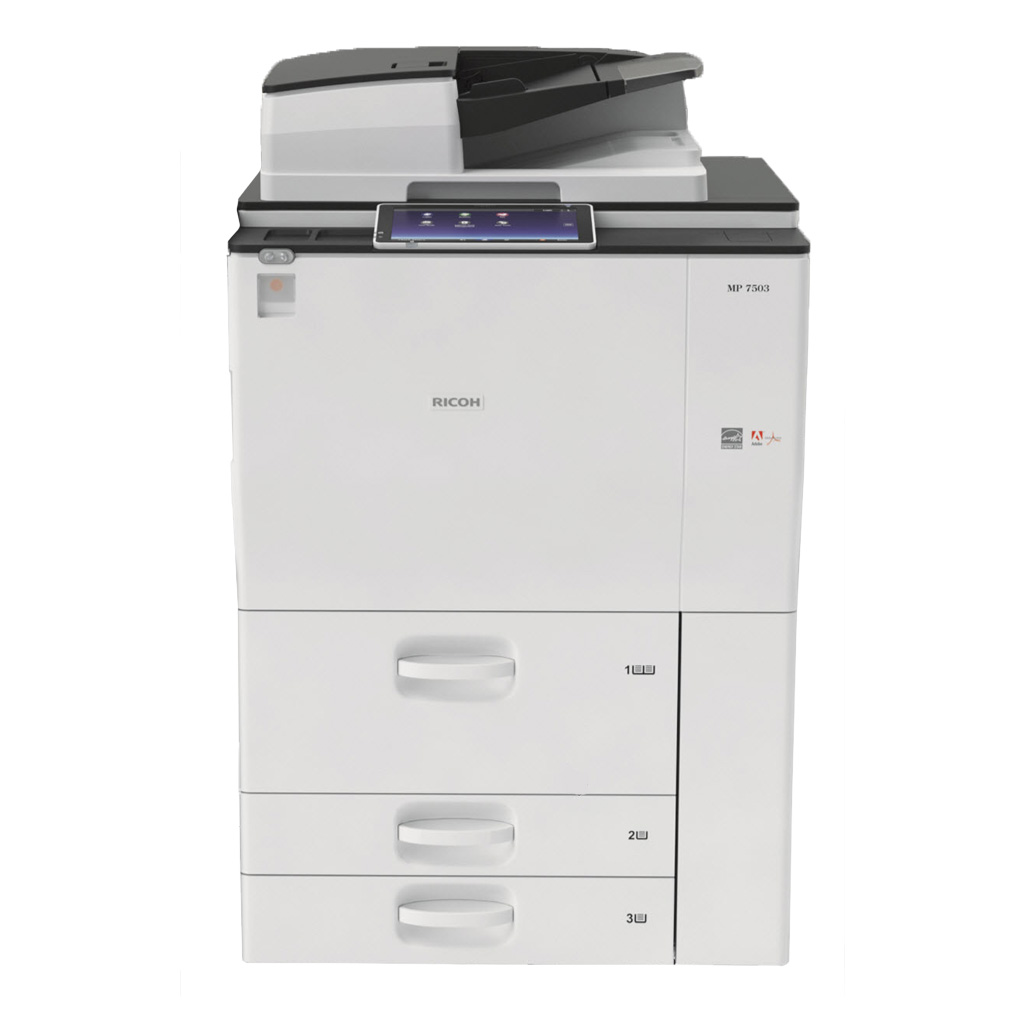

MP 7503SP A3 black and white MFP

Copy, print, scan, optional fax
Prints up to 75 ppm
3.2-second first copy time
8,300-sheet max input

Energy efficient, fast delivery

This high capacity multifunction device also comes with low running costs.Print more types of documents with a choice of paper sizes and thickness, up to A3 size in high resolution. Createshortcuts to frequently performed print jobs with the Smart Operation Panel. Download apps to save time and money, like the ability to scan-tofolders. Use the Ricoh Smart Device Connector App for added mobileconnectivity, allowing files to be printed from cloud applications. All thiswith fast print speeds that reliably support large print jobs.

Apps to make it easier

Share information and print from your smartphone or tabletwith the Ricoh Smart Device Connector app. It can access documents fromcloud applications like Google Drive, Dropbox and OneDrive. TheConnector App also allows smartphone, or tablet, printing device, projectorand white boards to all communicate with one another. It’s available forboth Android and iOS.

Download PDF brochure

Specifications

Functions: Copy, print, scan, optional fax
Colour: No
Storage: 320 GB
Memory - standard: 2 GB
Operation panel: 10.1-inch tilting colour WSVGA Smart operation panel

Physical dimensions (WxDxH)—mainframe: 690 x 803 x 1,161 mm
Weight—mainframe: 200 kg or less

Standard input capacity (sheets): 4,300
Maximum input capacity (sheets): 8,300
Maximum output capacity (sheets): 3,500
Paper input configuration - standard: 1,550-sheet x 2 tandem paper input tray, 2 x 550-sheet paper input trays, 100-sheet bypass tray, 220-sheet SPDF, duplex unit
Maximum paper size: A3
Media weight (g/m2): 52–300

Interfaces - standard

Mainframe
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB Host Type A2—2 ports
NFC tag SO14443 Type A (NFC Forum Type 2 compliant)¹

Smart Operation Panel
IEEE 802.11b/g/n (Wireless LAN)¹—2.4 GHz band only
Bluetooth 4.0¹
SD card slot— supports SDHC memory card
USB Host Type A—for USB Flash memory
USB Host Type A—for External keyboard¹
USB Host Type Mini B—for NFC card reader¹

¹—Does not support printing functions

Interfaces - optional

Mainframe
IEEE 1284
IEEE 802.11a/b/g/n (Wireless LAN)
USB Device Server (additional network interface port)

Network protocols - standard

TCP/IP (IPv4, IPv6)

Copy speed

75 cpm—A4 LEF
59 cpm—A4 SEF
39 cpm—A3 SEF

First copy time

3.2 seconds

Copy resolution

Read
600 x 600 dpi—8-bit

Write
1,200 x 1,200 dpi

Zoom range

25–400%, in 1% steps

Enlargement ratios

115%, 122%, 141%, 200%, 400%

Reduction ratios

93%, 82%, 75%, 71%, 65%, 50%, 25%

Duplex copy

Single-sided to duplex, duplex to duplex via SPDF, front and back to duplex, book to duplex

Book copy

Booklet, magazine, layout and booklet

ID card copy

Supported

User codes

1,000 user codes, 8 digits in each code

Print speed black and white

75 ppm

Print resolution

1,200 x 1,200 dpi

Printer drivers

Standard
PCL 5e, PCL 6, XPS

Optional
PostScript 3

Universal printer driver
PostScript 3

Note: The XPS driver can be downloaded from the Ricoh website.

Duplex printing

Standard

Mobile printing

Yes

Print from USB/SD

Supported

Scan speed

A4, via SPDF
Single-sided
120 ipm—200 x 200 dpi, 300 x 300 dpi

Duplex
220 ipm—black and white, 200 x 200 dpi, 300 x 300 dpi
210 ipm—colour, 300 x 300 dpi
220 ipm—colour, 200 x 200 dpi

Scan methods

Scan to USB/SD, Scan to email, Scan to webmail, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Colour scanning

Standard

Scan resolution

100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Scan to file types

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high compression PDF

Scan to email

Protocols
SMTP gateway, TCP/IP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high compression PDF, secure PDF, searchable PDF, digitally signed PDF

Multi-page
TIFF, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDF, digitally signed PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Scan to folder

Protocols
SMB, FTP

Security
Client folder logon, transmission encryption of logon name and password

Resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Scan to folder file types
Single-page
TIFF, JPEG, PDF, high compression PDF, secure PDF, searchable PDF, digitally signed PDF

Multi-page
TIFF, PDF, high compression PDF, encrypted PDF, searchable PDF, digitally signed PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

TWAIN scanning

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
Black and white, greyscale
100 x 100 dpi–1,200 x 1,200 dpi

Colour
100 x 100 dpi–600 x 600 dpi

Fax types: G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
Fax circuit: PSTN/PBX
Fax compatibilty: ITU-T (CCITT), G3—maximum 3 lines
Fax modem speed: 2,400 bps–33.6 Kbps—G3, standard with automatic shift down
Fax compression methods: MH, MR, MMR, JBIG
Fax resolution: 100 x 200 dpi—8 x 3.85 lines/mm
200 x 200 dpi—8 x 7.7 lines/mm
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mm

Note: 400 x 400 dpi is supported with the optional expansion memory.
G3 fax transmission speed: 100 x 200 dpi
2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
Fax SAF memory capacity: 4 MB, approximately 320 pages—standard
60 MB, approximately 4,800 pages—with optional memory
Fax memory backup: 1 hour
Quick dials: 2,000 numbers

Data Overwrite Security System (DOSS) - Standard: Yes
Data Overwrite Security System (DOSS) - Optional: Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
Encryption: HDD, SSH, PDF, Secure print, WEP, WPA encryption
Address book, authentication password encryption
Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
Authentication: 802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2)
IPv6
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
WiFi Protected Setup (WPS) support
Network user authentication

Windows: PCL 5c, PCL 6, and PostScript 3
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows Server 2003
Windows Server 2003 R2
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows 10
Macintosh: OS X Native v10.7 or later—PostScript 3 only
IBM: AS/400, iSeries—OS/400

Standard: @Remote Embedded
Java SDK
Web Image Monitor
Optional: @Remote Connector NX
Ricoh Scan CX
FlexRelease CX
Device Software Manager
Device Manager NX
GlobalScan NX
Printer Driver Packager NX
Streamline NX
Mobile apps: Smart Device Connector
Smart Device Print&Scan

Power source

220–240 V, 50/60 Hz, 10 Amps—Asia Pacific, China, Korea
110 V, 60 Hz, 4 Amps—Taiwan

Power consumption

1,900 W or less—maximum power
1,165.2 W or less—operating power, Asia Pacific
1,154.4 W or less—operating power, Taiwan
261 W or less—Ready Mode, Asia Pacific
264 W or less—Ready Mode, Taiwan
167 W or less—Low Power Mode, Asia Pacific
169 W or less—Low Power Mode, Taiwan
0.9 W or less—Energy Saver Mode (Sleep Mode), Asia Pacific
1.1 W or less—Energy Saver Mode (Sleep Mode), Taiwan

Typical Electricity Consumption (TEC)

5.4 kWh—Asia Pacific, China, Korea; 5.7 kWh—Taiwan

Warm-up time

20 seconds or less

Power saving mode

60 seconds shift time—Energy Saver Mode (Sleep Mode), Low Power Mode

Recovery time
