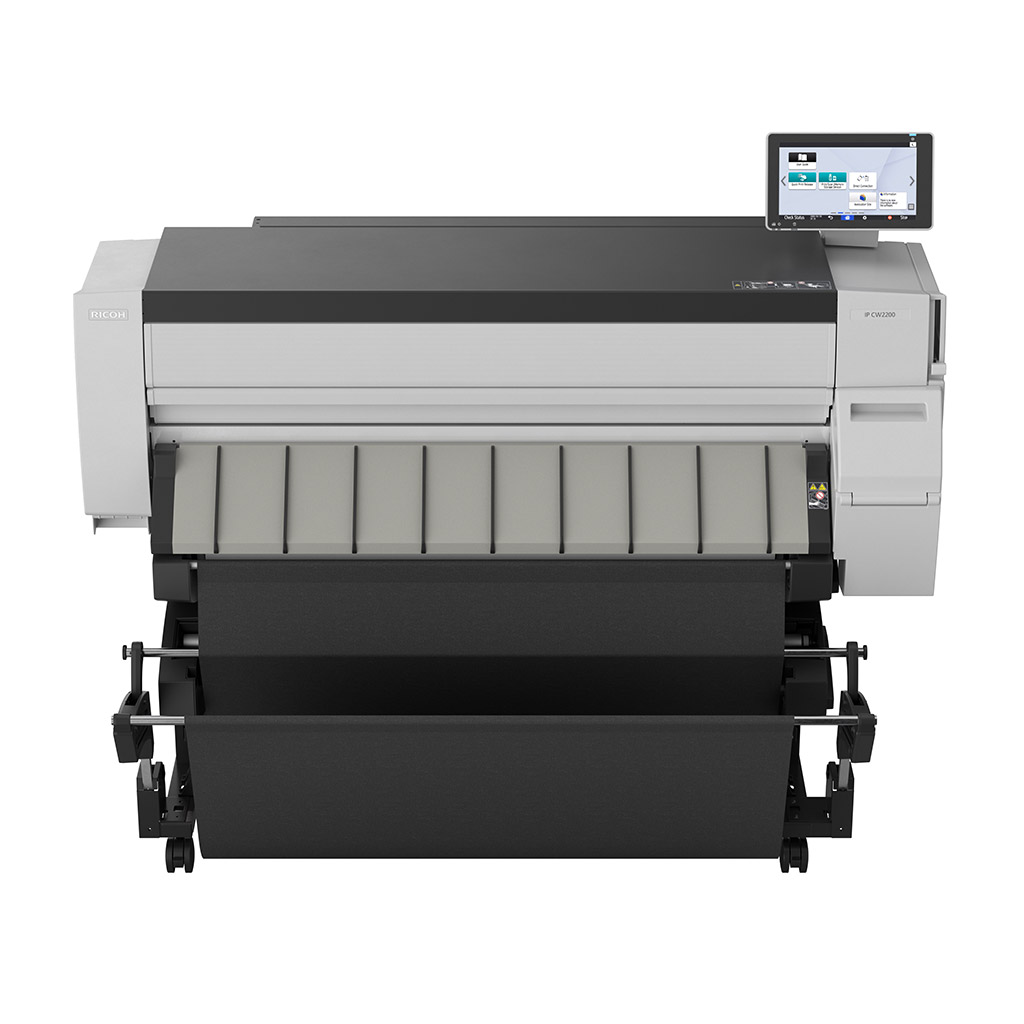

IP CW2200 Colour wide format printer

3.8 ppm—A1 black and white
10.1" Smart Operation Panel
Water-resistant ink
33 m max print length

Designed for efficiency

Print high quality colour CAD drawings and other large documents (A1/A0) faster, easier, and more securely.

Innovative print technology

Print impressive CAD drawings, from precise line drafts to boldly coloured 3D renders, with the highest accuracy and finest details with Ricoh's waterproof GEL-Jet™ technology.

Security first

The IP CW2200 comes with a range of built-in security measures, which include administrator and user authentication, to restrict access and protect files.

Effortless productivity

Automatic paper roll setting as well as a 10-sheet original stacker and max 33-metre print length make document production a breeze.

Fast and convenient
Automatic paper roll setting, fast 3.8 ppm A1 print speed, and max 33-metre print length allow work to completed easier and faster than before .
Seamless integration in mixed fleet environments
Latest generation Smart Operation Panel offers fast and simple navigation that is consistent with Ricoh's state-of-the-art A3 office devices.
Professional and durable prints
Consistently produce high quality and durable prints that are smudge-free and UV-resistant with Ricoh’s unique waterproof GEL-Jet™ ink.
Fit in anywhere
The small footprint and contemporary aesthetics make the IP CW2200 ideal for modern environments where space is an issue.

Download PDF brochure

Specifications

Functions: Print
Colour: Yes
Printer controller - standard: GWNX
HDD: 320 GB
CPU: Intel Atom Processor Apollo Lake-I 1.6 GHz
Memory - standard: 4 GB
Operation panel: 10.1" Smart Operation Panel (G2.5)

Physical dimensions (WxDxH)—mainframe: 1,384 x 660 x 1,117 mm
Physical dimensions (WxDxH)—other: 1,108 x 432 x 398 mm—Roll Unit RU6570
Weight—mainframe: 100 kg
Weight—other: 14.5 kg—Roll Unit RU6570

Average monthly volume: 120 m
Average monthly statement: Reliability targets are measured using A1 LEF paper width (841 mm) with 6% black and white/20% colour (5% x 4 colours) coverage, 40% colour ratio, and one page per job.
Max monthly volume: 1,200 m

Supply yields: Black and white printing
529 copies or 314 m per 200 ml black cartridge
708 copies or 421 m per 100 ml cyan cartridge
699 copies or 415 m per 100 ml magenta cartridge
700 copies or 416 m per 100 ml yellow cartridge

Colour printing
352 copies or 209 m per 200 ml black cartridge
472 copies or 280 m per 100 ml cyan cartridge
466 copies or 277 m per 100 ml magenta and yellow cartridge

Note: All toner yields are measured using A1 LEF paper with 6% black and white/20% colour (5% x 4 colours) coverage, and a 40% colour ratio, 60% black and white ratio.

Waste tank capacity
425 ml or 5 years, whichever comes first
120 m
40% colour ratio

Waste tank use conditions
23 degrees Celcius and 50% humidity

Standard input capacity (sheets)

Roll feed
One roll each—297–914 mm wide x unlimited length, or max diameter 176 mm

Bypass
1 sheet—914.4 x 2,000 mm

Standard output capacity (sheets)

1 sheet—basket

Note: Basket output can't be stacked because the curvature factor is small.

Paper input configuration - standard

1-sheet bypass tray, 1-roll feeder

Paper input configuration - optional

1-roll feeder, roll holder

Paper output configuration - standard

1-sheet output basket

Supported media

Plain paper, recycled paper, inkjet plain paper, tracing paper, matte film, coated paper, coated paper—CAD, special paper

Maximum paper size

914.4 mm x 33,000 mm

Media weight (g/m2)

51–220

Interfaces - standard

Mainframe
1000 Base-T/100 Base-TX/10 Base -T (Ethernet)
USB 2.0

Smart Operation Panel
IEEE 802.11 b/g/n (Wireless LAN)¹
Bluetooth 4.2²
SD Card Slot—SDHC memory card
USB Host Type A—USB Flash memory
USB Host Type A—1 port for USB keyboard (optional)²
USB Host Type mini B—for NFC card reader (optional)²
NFC Tag²

¹—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
²—Cannot be used for printing

Interfaces - optional

IEEE 802.11 a/g/n (Wireless LAN)

Network protocols - standard

TCP/IP (IPv4, IPv6)

MIB support

Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)

Private
Ricoh original MIB

Print speed colour

2.1 ppm—A1 LEF

Print speed black and white

3.8 ppm—A1 LEF

Printing process

On demand Piezo inkjet system

Ink type

Pigment-based ink—all four colours

Print resolution

Speed Priority (Drawing) Mode, Speed Priority Mode
600 x 300 dpi

Standard Mode
600 x 600 dpi

Quality Priority Mode with coated paper, film (matte) and special paper
1,200 x 1,200 dpi

Quality Priority Mode with other paper types
600 x 600 dpi

Page description languages (PDLs)

Adobe PostScript 3, PDF Direct, RP-GL/GL2, RTIFF, Media Print JPEG, Media Print TIFF

Printer drivers

Adobe PostScript 3

Fonts

136 European fonts—Adobe PostScript 3

Print from USB/SD

Supported—JPEG, TIFF, PDF

Other print features

One direction, Unauthorised copy prevention—(Adobe PostScript 3 driver), WSD printer, Colour matching, POP, Colour Universal Design (CUD), Ink Save Mode—save ratio 50%, available with Adobe PostScript 3, Sample print, Encrypted secure print, Hold print, Stored print, Auto job promotion, Bonjour (Rendezvous) support, Barrier-free colour management mode, Scheduled print, Banner page print (Job sheet print), Classification code, Web print tool, Emergency print, Black Over Print, Tray parameter change from Web Image Monitor, Poster print

Authentication: User authentication—Windows (via Kerberos), LDAP, basic, user code
802.1x wired authentication

Windows: Windows 8.1
Windows 10
Windows 11
Windows Server 2012/2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
Citrix support: XenApp 7.15 LTSR
VirtualApps/Desktops 2012 and later
Macintosh: OS X Native 10.14, 10.15, 11, 12—PostScript 3 only
Unix: Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—v6.1, v7.1, v7.2

Standard: @Remote Embedded
Web Image Monitor
Optional: RICOH Streamline NX v3
Enhanced Locked Print NX v2
Enhanced Locked Print NX FlexRelease Server v2
Card Authentication Package v2
Card Authentication Package Enterprise Server v2
Device Manager NX Lite
Device Manager NX Accounting

Power source: 220–240 V, 50/60 Hz, 1.9 A
Power consumption: 140 W—maximum power, mainframe
160 W—maximum power, full configuration
75.3 W—operating, black and white
74.7 W—operating, colour
32.8 W—Ready Mode
0.64 W—Energy Saver Mode (Sleep Mode)
Warm-up time: 40 seconds or less
Timers: System reset
Sound power level: Mainframe
21.1 dB—standby, black and white
68.4 dB—printing, black and white
67.5 dB—printing, colour

Full system
67.3 dB—printing, black and white
Sound pressure level: Mainframe
3.4 dB—standby, black and white
59.7 dB—printing, black and white
56.8 dB—printing, colour

Full system
59.2 dB—printing, black and white
Emission levels: 0.02 mg/h or less—benzene
0.1 mg/h or less—styrene
Total Volatile Organic Compounds (TVOC): 0.497 mg/h—ready
15.25 mg/h—printing
Identification of plastic components: All plastic components that weigh more than 25 g are identified in accordance with DIN 548490 and ISO 11469 standards.
