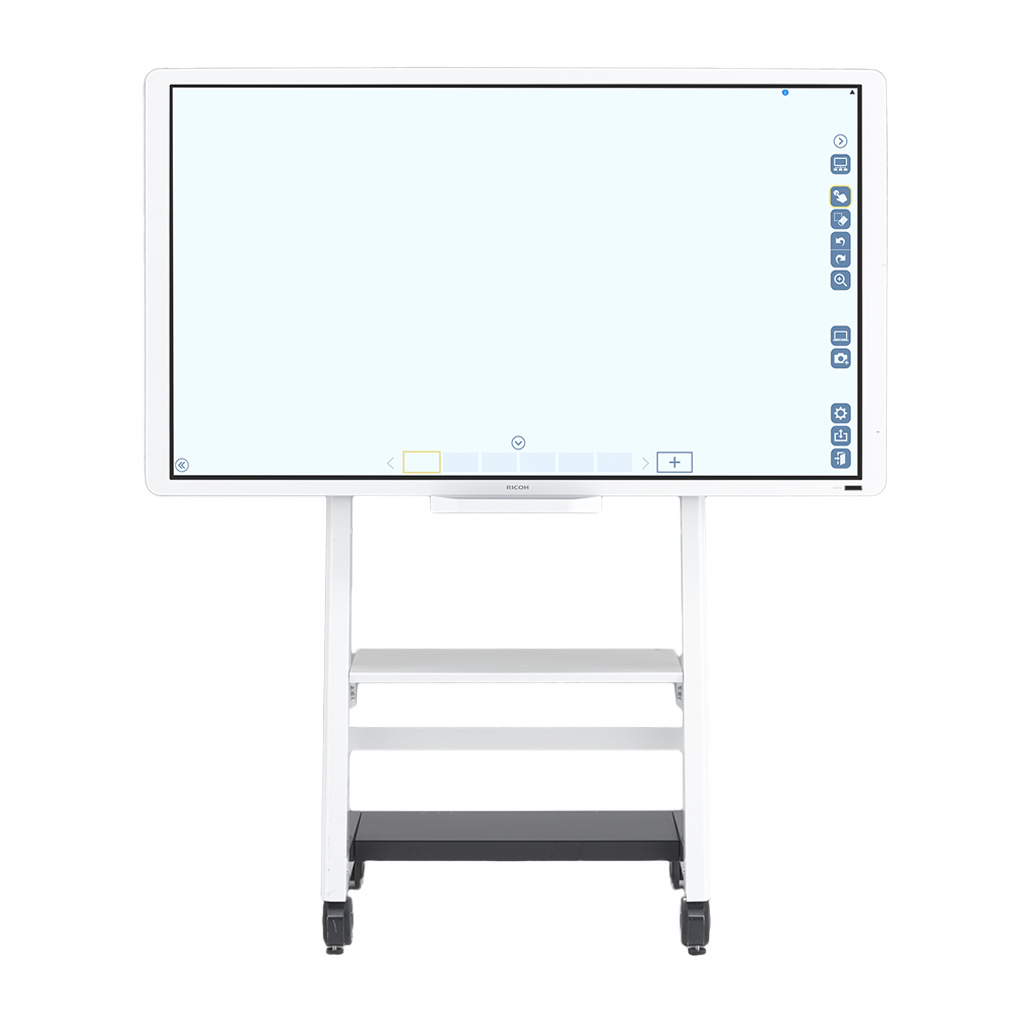

IWB D6510 Interactive whiteboard

65-inch touchscreen
1,920 x 1,080 pixels
350 cd/m² brightness
Optional remote connection

Speed up approvals and improve alignment between teams

Make team meetings productive and outcomes-oriented with this all-in-one collaboration tool. It’s offers flexible options to connect, whether you’re in the same room in another country.

Keep projects on track with an easier way to approve plans, documents and more. Interactive whiteboards offer a place where everyone can share their thoughts in real-time, no matter where they are. Easily connect via Bluetooth or different media to save time and hassle. Add on Ricoh Streamline NX to limit device access and keep information secure. The portable design can hang in your meeting room or act as a tabletop for brainstorming.

Real time collaboration
Edit and mark documents directly on the whiteboard. Multiple devices can connect for support across locations.
Vibrant visuals
Over 1 billion colours on display.
Simple connectivity
Start collaborating instantly with no software. Connect devices with WiFi, VGA, HDMI or USB.
Share results easily
Print or share results with PDFs that can be printed or sent to email, USB or directly to your office folders, network or on the cloud.

Specifications

Operation panel

1 x main switch
7 x tact switch

What's included

Touch pen
1 pcs

Note: There is also a felt-tipped touch pen available as an option, if additional pens are required.

Remote controller
Yes

Remote controller battery
2 x AAA batteries

Power cord
Yes

RGB cable
Yes

USB cable
Yes—for PC operation

HDMI cable
Yes

Bluetooth dongle
Yes

Quick guide and safety instructions
Yes

OPS slot
Yes x 1

Physical dimensions (WxDxH)—mainframe: 1,546 x 154 x 888 mm
Weight—mainframe: 57 kg

Panel type

LCD multi touch-screen display

Panel size

65 inches

Backlight

LED

Effective display area

1,428.48 x 803.52 mm

Resolution

1,920 x 1,080 pixels

Colour reproduction

1.07 billion colours maximum

Colour temperature

11,000 K—cool
6,500 K—warm
9,300 K—neutral
5,000 K—low blue light

Brightness

350 cd/m²

Aspect ratio

16:9

Contrast

4000:1

Display settings

Landscape orientation, Picture Mode—including Low Blue Light Mode, Backlight, Contrast, Brightness, Chroma, Phase, Sharpness, Colour temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source PAP Setting, Aspect, Adjust screen, Touch feature, Language, Power Save Control Setting, Touch control settings, Set monitor ID, Advanced information

Pixel pitch

0.744 mm

Response speed

8 ms

Viewing angle HV

Left and right 178 degrees, up and down 178 degrees

Audio

Input
1 x Line 3.5 mm

Output
1 x speaker out

Video

Video input
1 x VGA
1 x HDMI
1 x DVI-D
1 x DisplayPort

Video output
1 x DisplayPort

Microphone

Configuration
Built-in

Mic sensitivity
-28±3 dB

Signal to noise ratio
58 dB

Maximum input level
110 dB

Maximum pickup distance
5 m

Touch technology: ShadowSense
Touch points: 10 points maximum—four points with finger
Touch resolution: 80 pt/sec—1,920 x 1,080 spatial resolution
Touch output: USB 2.0 Type B—not available when controller is installed
Detection system electronic pen: Radio frequency transmission
Touch panel cover glass: 3 mm anti-glare

Interfaces - standard

Control
1 x serial RS-232C input
1 x serial RS-232C output
2 x USB 2.0 Type B—for touch control

USB Hub 1
2 x USB 2.0 Type A—for Bluetooth dongle

USB Hub 2
4 x USB 3.0 Type A

Bluetooth
Bluetooth v2.1+EDR v3.0, v4.0

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

Interfaces - optional

With Ricoh IWB controllers
10Base-T/100Base-Tx/1000Base-T (Wired LAN)
IEEE 802.11a/b/g/n (Wireless LAN)

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.

Windows

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows Embedded 7—Standard
Windows 8—Windows 8, Pro, Enterprise
Windows Embedded 8—Standard
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows 10—Home, Pro, Enterprise, IoT

Single-touch sensor
Windows 7—Home Basic

RICOH Interactive Whiteboard controller Type 1 (optional)
Windows Embedded Standard 8

RICOH OS-free Interactive Whiteboard controller Type 1 (optional)
Windows 7—must be installed after setup at customer site

Macintosh

Mac OS X 10.10–10.12—single-touch sensor
