A cover for the platen glass. No automated feeding to scan and copy documents.
Dimensions (W x D x H): 561 x 497 x 63.8 mm Weight: 2.3 kg or less
Notes:
Cannot be installed with ARDF DF3090,SPDF DF3100,ADF Handle Type C

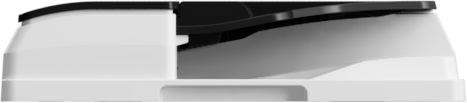

ARDF DF3090
Automatic Reversing Document Feeder. Feeds originals one page at a time into a scanner or copier without users having to manually replace each page.
Capacity: 100 sheets Dimensions (W x D x H): 565 x 500 x 125 mm Weight: 8.2 kg or less
Notes:
Cannot be installed with Platen Cover PN2000,SPDF DF3100

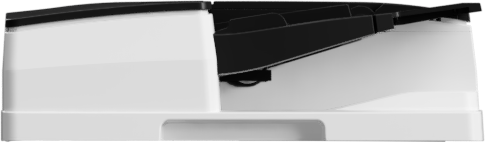

SPDF DF3100
Single-Pass Document Feeder. Feeds originals one page at a time into a scanner or copier without users having to manually replace each page. Captures both sides of the document simultaneously.
Stack capacity: 220 sheets Dimensions (W x D x H): 587 x 520 x 175 mm Weight: 13.9 or less Power consumption: 55 W or less
Notes:
Cannot be installed with Platen Cover PN2000,ARDF DF3090
ADF Handle Type C
Assists seated users or users with arm injuries to open and close an automatic document feeder.
Notes:
One of the following must also be selected: ARDF DF3090,SPDF DF3100
Cannot be installed with Platen Cover PN2000

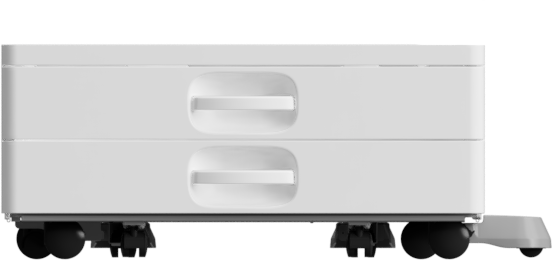

Paper Feed Unit PB3220
Optional 2-tray paper feed unit that increases the paper capacity of the device.
Capacity: 1,100 (2 x 550) sheets Paper size: A5–SRA3 Paper weight: 60–300 g/m2 Power consumption: 21 W or less Dimensions (W x D x H): 587 x 685 x 247 mm Weight: 22.1 kg
Notes:
Cannot be installed with Paper Feed Unit PB3250,LCT PB3260,Caster Table Type M3

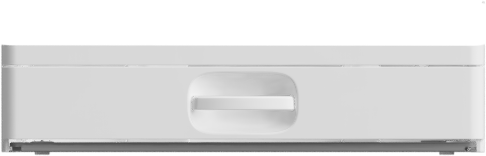

Paper Feed Unit PB3250
Optional 1-tray paper feed unit that increases the paper capacity of the device.
Capacity: 550 sheets Paper size: B6–SRA3 Envelopes: COM10, Monarch SEF, C6–C5 Custom paper size: 90–320 x 148–457.2 mm Paper weight: 60–300 g/m2 Power consumption: 19 W or less Dimensions (W x D x H): 587 x 685 x 120 mm Weight: 10.9 kg
Notes:
Cannot be installed with Paper Feed Unit PB3220,LCT PB3260,LCT RT3030,Booklet Finisher SR3220,Hybrid Finisher SR3210,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Caster Table Type M3
Provides a base with casters (wheels) to easily move the device on a floor standing configuration.
Dimensions (W x D x H): 668 x 723 x 76.2 mm—with stabiliser feet; 587 x 616 x 76.2 mm—without stabiliser feet Weight: 8.23 kg or less
Note: Mainframe feet will be retracted when the caster table is attached, reducing the total configuration height by 5 mm.
Notes:
Cannot be installed with Paper Feed Unit PB3220,LCT PB3260,LCT RT3030,Hybrid Finisher SR3210,Booklet Finisher SR3220,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC

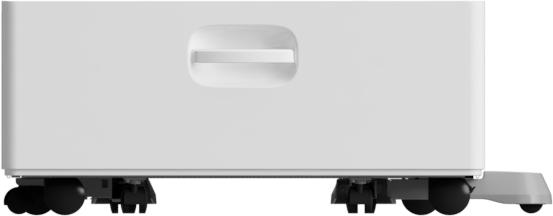

LCT PB3260
Optional tandem Large Capacity Tray significantly increasing the capacity of the device.
Capacity: 2,000 (2 x 1,000) sheets Paper size: A4 Paper weight: 60–300 g/m2 Dimensions (W x D x H): 587 x 685 x 247 mm Weight: 22 kg Power consumption: 15 W or less
Notes:
Cannot be installed with Paper Feed Unit PB3250,Paper Feed Unit PB3220,Caster Table Type M3
LCT RT3030
Optional side Large Capacity Tray significantly increasing the capacity of the device.
Capacity: 1,500 sheets Paper size: A4, B5 Paper weight: 52–300 g/m2 Dimensions (W x D x H): 340 x 544.5 x 290 mm Weight: 9.8 kg Power consumption:13 W or less
Notes:
Cannot be installed with Paper Feed Unit PB3250,Caster Table Type M3
One of the following must also be selected: LCT PB3260,Paper Feed Unit PB3220
1-Bin Tray BN3110
Provides an additional output tray above the standard internal tray or optional Bridge Unit/Internal Finisher.
Paper capacity: 125 sheets Dimensions (W x D x H): 444 x 450 x 150 mm Weight: 1.4 kg or less
Internal Shift Sort Tray SH3070
Enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.
Capacity: 250 sheets (A4 or smaller), 125 sheets (B4 or larger) Paper size: 320 mm x 600 mm or smaller; 320 mm x 1,260 mm—configurable in SP mode Paper weight: 52–300 g/m2 Dimensions (W x D x H): 420 x 489 x 107 mm; 447 x 489 x 107 mm with tray extended Weight: 1.4 kg or less Power consumption: 4.3 W or less
Notes:
Cannot be installed with Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Finisher SR3130,Bridge Unit BU3070,Side Tray M3,Internal Multi-Fold Unit FD3000,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC

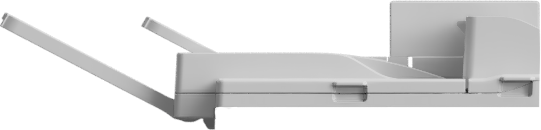

Side Tray M3
Provides an additional exit point if a finisher is not attached.
Output to internal tray: 250 sheets (A4), 125 sheets (B4) Output to left side: 125 sheets Paper size: 320 x 600 mm or smaller—output to internal tray 320 x 1,260 mm—output to internal tray, configurable in SP Mode 320 x 457.2 mm or smaller—output to left side Paper weight: 52–300 g/m2 Dimensions (W x D x H): 676 x 549 x 156 mm; 800 x 549 x 156 mm with tray extended Weight: 3.8 kg or less Power consumption: 12 W or less
Notes:
Cannot be installed with Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Finisher SR3130,Bridge Unit BU3070,Internal Shift Sort Tray SH3070,Finisher SR3230,Booklet Finisher SR3240,Internal Multi-Fold Unit FD3000,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC

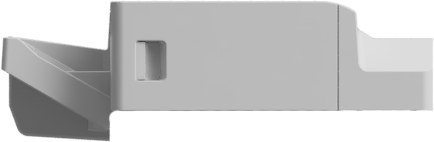

Internal Finisher SR3130
Provides multi-position stapling and optional hole-punching. Recommended for offices with limited floor space.
Capacity: 500 sheets Paper size: A6–SRA3; custom size 90–320 mm x 148–1,260 mm Paper weight: 52–300 g/m2 Staple capacity: 50 sheets Staple position: 2 staples, top and bottom Staple paper weight: 52–105 g/m2 Optional punch unit PU3040 available Dimensions (W x D x H): 546 x 523 x 170 mm; 720 x 523 x 170 mm with tray extended Weight: 12.8 kg or less Power consumption: 47 W or less; 60 W or less with punch unit
Notes:
Cannot be installed with Booklet Finisher SR3220,Hybrid Finisher SR3210,Bridge Unit BU3070,Side Tray M3,Internal Shift Sort Tray SH3070,Finisher SR3230,Booklet Finisher SR3240,Internal Multi-Fold Unit FD3000,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC

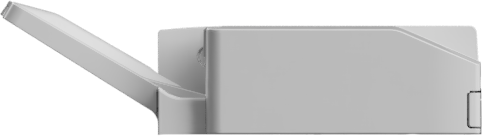

Internal Multi-Fold Unit FD3000
Offers four types of single-sheet folding, including Z-fold, half-fold, outer tri-fold, and inner tri-fold within the original footprint as it is installed in the exit tray.
Paper size: Multi-folding unit only Z-fold, half-fold—A4–A3, B4 Outer tri-fold, inner tri-fold—A4–A3 When connected to finishers SR3210 and SR3230 Z-fold—A4–A3, B4 Half-fold—A4–A3, B4, 12" x 18", 12.6" x 17.7" (SRA3) Outer tri-fold, inner tri-fold—A4–A3
Paper weight: 52–300 g/m2 Dimensions: 612 x 555 x 184 mm Weight: 15 kg
Notes:
Cannot be installed with Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Bridge Unit BU3070,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC

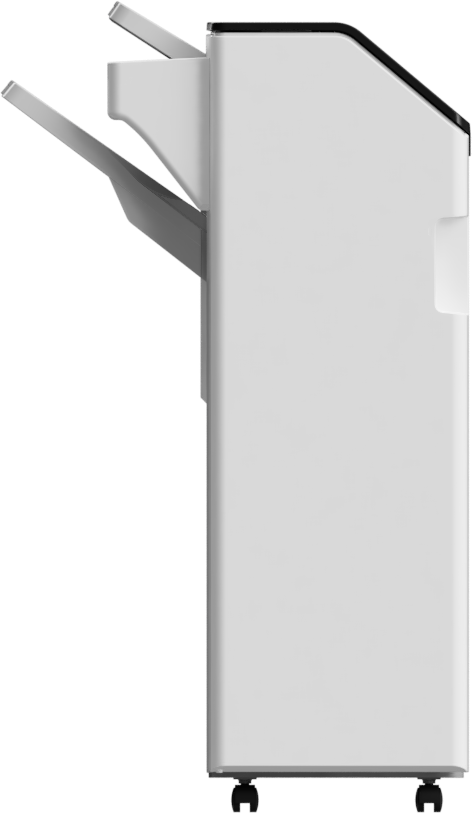

Hybrid Finisher SR3210
Offers both staple-free binding up to 5 sheets (10 pages) and conventional stapling to fasten together sheets with staples. Staple-free technology reduces need to restock staples, increases safety, and makes paper recycling easier.
Capacity: 1,000 sheets Paper size: B6–SRA3, custom size 90 x 139.7 – 320 x 600 mm Paper weight: 52–169 g/m2 (proof tray); 52–300 g/m2 (shift tray) Staple capacity: 2–50 sheets (A4 or smaller); 2–30 sheets (B4 or larger) Staple position: Top, bottom, 2 staples Stapleless binding: 2–5 sheets, single or double row, top left Optional punch unit PU3050 available Dimensions (W x D x H): 563 x 620 x 960 mm Weight: 27 kg or less Power consumption: 35.4 W or less
Notes:
Cannot be installed with Booklet Finisher SR3220,Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Finisher SR3230,Booklet Finisher SR3240,Paper Feed Unit PB3250,Caster Table Type M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Bridge Unit BU3070,Internal Multi-Fold Unit FD3000
One of the following must also be selected: Paper Feed Unit PB3220,LCT PB3260

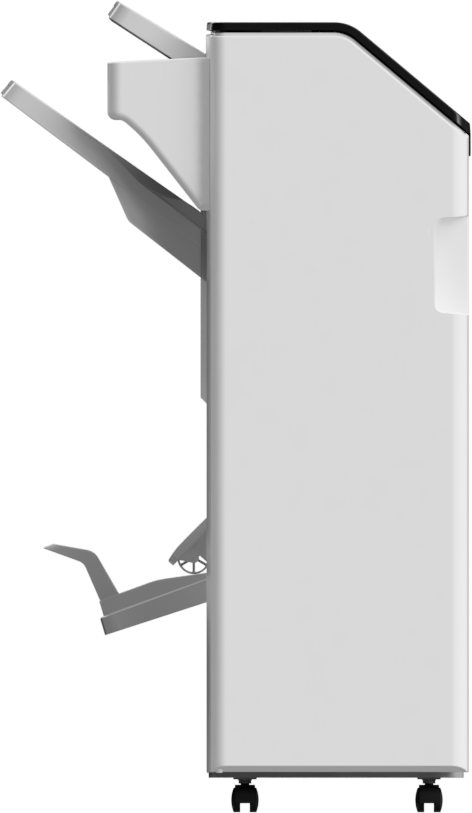

Booklet Finisher SR3220
Allows documents to be professionally finished as saddle-stitched booklets. Provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.
Capacity: 1,000 sheets Paper size: B6–SRA3, custom size 90 x 139.7–320 x 600 mm Paper weight: 52–169 g/m2—proof tray; 52–300 g/m2—shift tray Staple capacity: 50 sheets Staple positions: top, bottom, 2 staple, booklet Staple paper weight: 52-105 g/m2 Saddle stitch staple: 15 sheets (60-page booklet) Optional punch unit PU3050 available Dimensions (W x D x H): 563 x 620 x 960 mm Weight: 39.6 kg Power consumption: 35.4 W or less
Notes:
Cannot be installed with Hybrid Finisher SR3210,Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Finisher SR3230,Booklet Finisher SR3240,Paper Feed Unit PB3250,Caster Table Type M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Bridge Unit BU3070,Internal Multi-Fold Unit FD3000
One of the following must also be selected: Paper Feed Unit PB3220,LCT PB3260

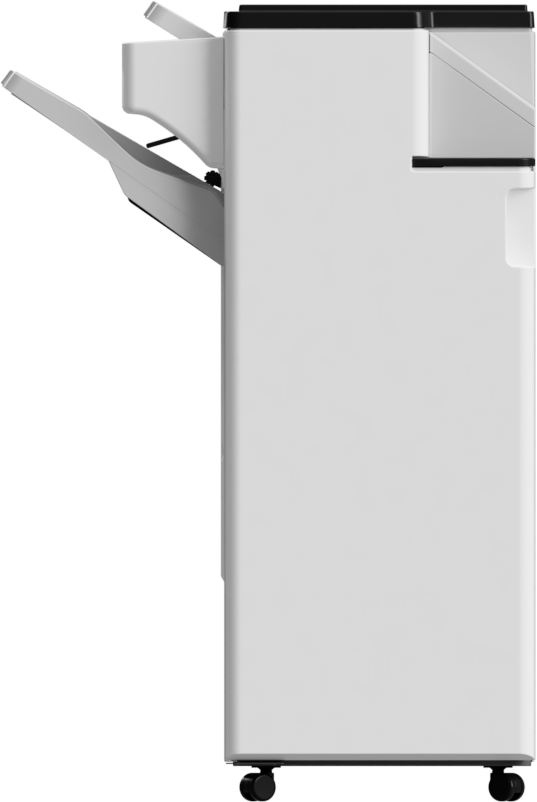

Finisher SR3230
Provides multi-position stapling and optional hole punching.
Capacity: 3,000 sheets Paper size: B6–SRA3, custom size 90 x 139.7–330.2 x 487.7 mm Paper weight: 52–220 g/m2 (proof tray); 52–300 g/m2 (shift tray) Staple capacity: 50 sheets Staple positions: Top, bottom, 2 staples, top slant Staple paper weight: 52–105 g/m2 Optional punch unit PU3060 available Dimensions (W x D x H): 657 x 613 x 960 mm Weight: 33.5 kg or less; 38 kg or less—with punch unit Power consumption: 67 W or less
Notes:
Cannot be installed with Booklet Finisher SR3240,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Paper Feed Unit PB3250,Caster Table Type M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC
One of the following must also be selected: Bridge Unit BU3070,Internal Multi-Fold Unit FD3000
One of the following must also be selected: Paper Feed Unit PB3220,LCT PB3260

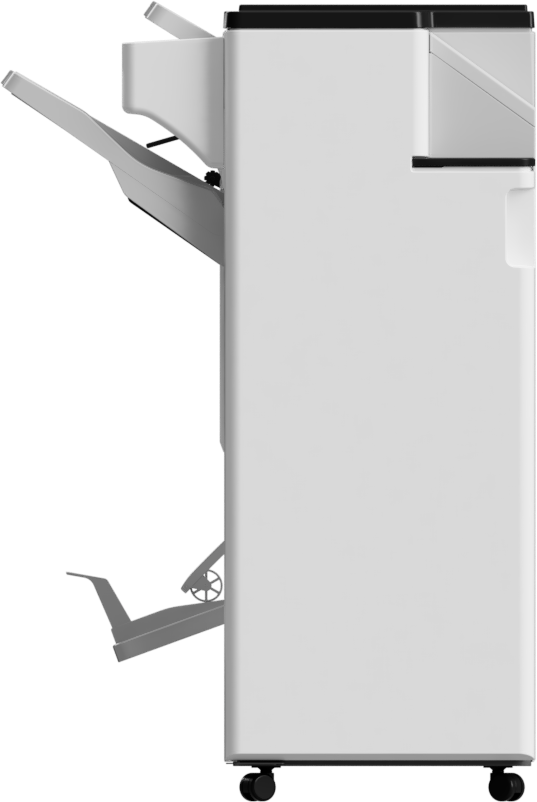

Booklet Finisher SR3240
Allows documents to be professionally finished as saddle-stitched booklets. Provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.
Capacity: 2,000 sheets Paper size: A6–13" x 19.2", B6; custom size 90 x 139.7 mm–330.2 x 487.7 mm Paper weight: 52–220 g/m2—proof tray, 52–300 g/m2—shift tray Staple capacity: 50 sheets Staple position: Top, bottom, 2 staples, top slant, booklet Staple paper weight: 52–105 g/m2 Saddle stitch staple: 20 sheets (A3–B5) Optional punch unit PU3060 available Dimensions (W x D x H): 657 x 613 x 960 mm; 756 x 613 x 960 mm with tray extended Weight: 52.5 kg or less Power consumption: 67 W or less
Notes:
Cannot be installed with Finisher SR3230,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Paper Feed Unit PB3250,Caster Table Type M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC
One of the following must also be selected: Bridge Unit BU3070,Internal Multi-Fold Unit FD3000
One of the following must also be selected: Paper Feed Unit PB3220,LCT PB3260
Punch Unit PU3040 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
By choosing this option the Internal Finisher SR3130 will be added to the configuration.
Cannot be installed with Punch Unit PU3040 EU,Punch Unit PU3040 SC,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Bridge Unit BU3070,Side Tray M3,Internal Multi-Fold Unit FD3000,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Punch Unit PU3040 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
By choosing this option the Internal Finisher SR3130 will be added to the configuration.
Cannot be installed with Punch Unit PU3040 NA,Punch Unit PU3040 SC,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Bridge Unit BU3070,Side Tray M3,Internal Multi-Fold Unit FD3000,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Punch Unit PU3040 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Notes:
By choosing this option the Internal Finisher SR3130 will be added to the configuration.
Cannot be installed with Punch Unit PU3040 NA,Punch Unit PU3040 EU,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Bridge Unit BU3070,Side Tray M3,Internal Multi-Fold Unit FD3000,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
Punch Unit PU3050 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 EU,Punch Unit PU3050 SC,Paper Feed Unit PB3250,Caster Table Type M3,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Hybrid Finisher SR3210,Booklet Finisher SR3220
Punch Unit PU3050 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 SC,Paper Feed Unit PB3250,Caster Table Type M3,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Hybrid Finisher SR3210,Booklet Finisher SR3220
Punch Unit PU3050 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3050 NA,Punch Unit PU3050 EU,Paper Feed Unit PB3250,Caster Table Type M3,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Finisher SR3230,Booklet Finisher SR3240,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3060 NA,Punch Unit PU3060 EU,Punch Unit PU3060 SC
One of the following must also be selected: Hybrid Finisher SR3210,Booklet Finisher SR3220
Punch Unit PU3060 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3060 EU,Punch Unit PU3060 SC,Paper Feed Unit PB3250,Caster Table Type M3,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC
One of the following must also be selected: Booklet Finisher SR3240,Finisher SR3230
Punch Unit PU3060 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3060 NA,Punch Unit PU3060 SC,Paper Feed Unit PB3250,Caster Table Type M3,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC
One of the following must also be selected: Booklet Finisher SR3240,Finisher SR3230
Punch Unit PU3060 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Notes:
Cannot be installed with Punch Unit PU3060 NA,Punch Unit PU3060 EU,Paper Feed Unit PB3250,Caster Table Type M3,Booklet Finisher SR3220,Hybrid Finisher SR3210,Internal Shift Sort Tray SH3070,Internal Finisher SR3130,Side Tray M3,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC,Punch Unit PU3050 NA,Punch Unit PU3050 EU,Punch Unit PU3050 SC
One of the following must also be selected: Booklet Finisher SR3240,Finisher SR3230

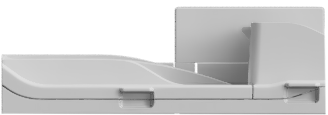

Bridge Unit BU3070
Required when a mainframe is configured with an external finisher. Transports pages from the standard exit area into a finisher for inline stapling or hole punching.
Notes:
Cannot be installed with Internal Finisher SR3130,Internal Shift Sort Tray SH3070,Side Tray M3,Internal Multi-Fold Unit FD3000,Punch Unit PU3040 NA,Punch Unit PU3040 EU,Punch Unit PU3040 SC
One of the following must also be selected: Hybrid Finisher SR3210,Booklet Finisher SR3220,Booklet Finisher SR3240,Finisher SR3230
PostScript 3 Unit Type M29
Genuine Adobe PostScript 3 printer driver.
IPDS Unit Type M29
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
XPS Direct Print Option Type M29
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
OCR Unit Type M13
Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
Fax Type M29
Enables fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320-page memory.
Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.
G3 Fax Type M29
Additional G3 line. Up to two units can be installed.
Notes:
By choosing this option the Fax Type M29 will be added to the configuration.
Fax Connection Unit Type M29
Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax. Supports max 6 sub-connections.
Notes:
By choosing this option the Fax Type M29 will be added to the configuration.
Fax Memory Unit Type M19
64 MB additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
Notes:
By choosing this option the Fax Type M29 will be added to the configuration.
Marker Type 30
A refill ink for ADF verification stamp that places a small mark on each page scanned or sent in immediate Transmission Mode.
4 markers/box
Yield: 12,000 pages
Notes:
By choosing this option the Fax Type M29 will be added to the configuration.
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,File Format Converter Type M19,Extended USB Board Type M19
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,File Format Converter Type M19,Extended USB Board Type M19
Extended USB Board Type M19
Enables printing from USB Type B port.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,IEEE 1284 Interface Board Type M19,File Format Converter Type M19
File Format Converter Type M19
Allows users to save copy and print jobs stored on the document server to a computer.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,IEEE 1284 Interface Board Type M19,Extended USB Board Type M19
NFC Card Reader Unit Type M29
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
Notes:
Cannot be installed with Card Reader Unit Built-in Type M29,External Keyboard Bracket Type M19
Card Reader Unit Built-in Type M29
A plastic card reader cover that conceals the card reader and its cabling. A card reader is not included.
Notes:
Cannot be installed with NFC Card Reader Unit Type M29,External Keyboard Bracket Type M19
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
Key Counter Bracket Type M3
4-pin interface for mounting an external key counter to an MFP.
External Keyboard Bracket Type M19
For attaching an external keyboard to the device.
Notes:
Cannot be installed with NFC Card Reader Unit Type M29,Card Reader Unit Built-in Type M29
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 100 Licence
Supports multilingual data without restrictions.
Standard inclusions
Current configuration

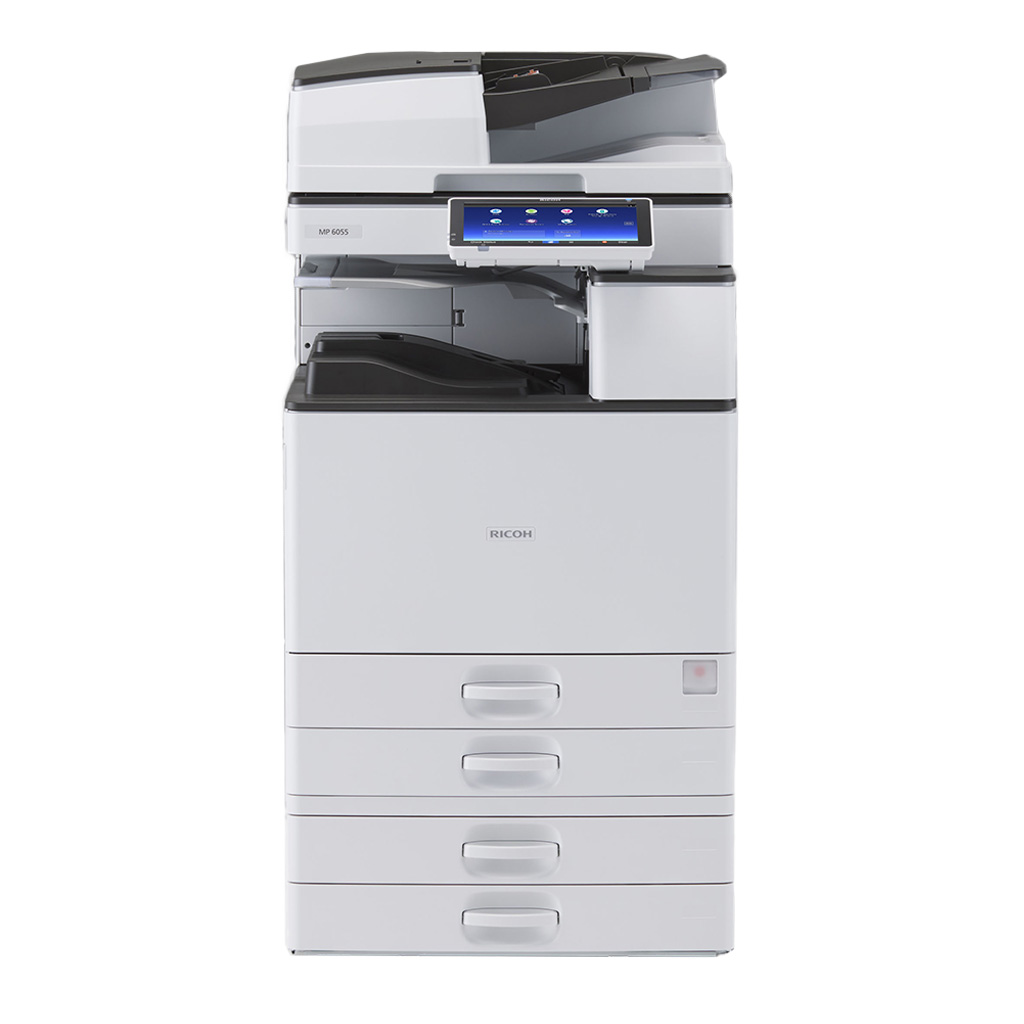

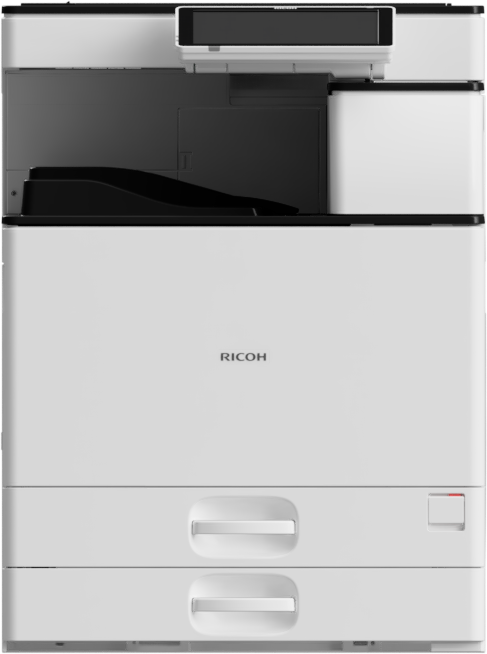

MP 5055SP
587 mm x684 mm x788 mm (W x D x H)
625 kg
