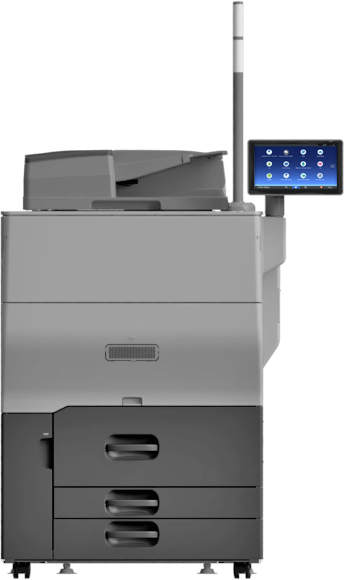

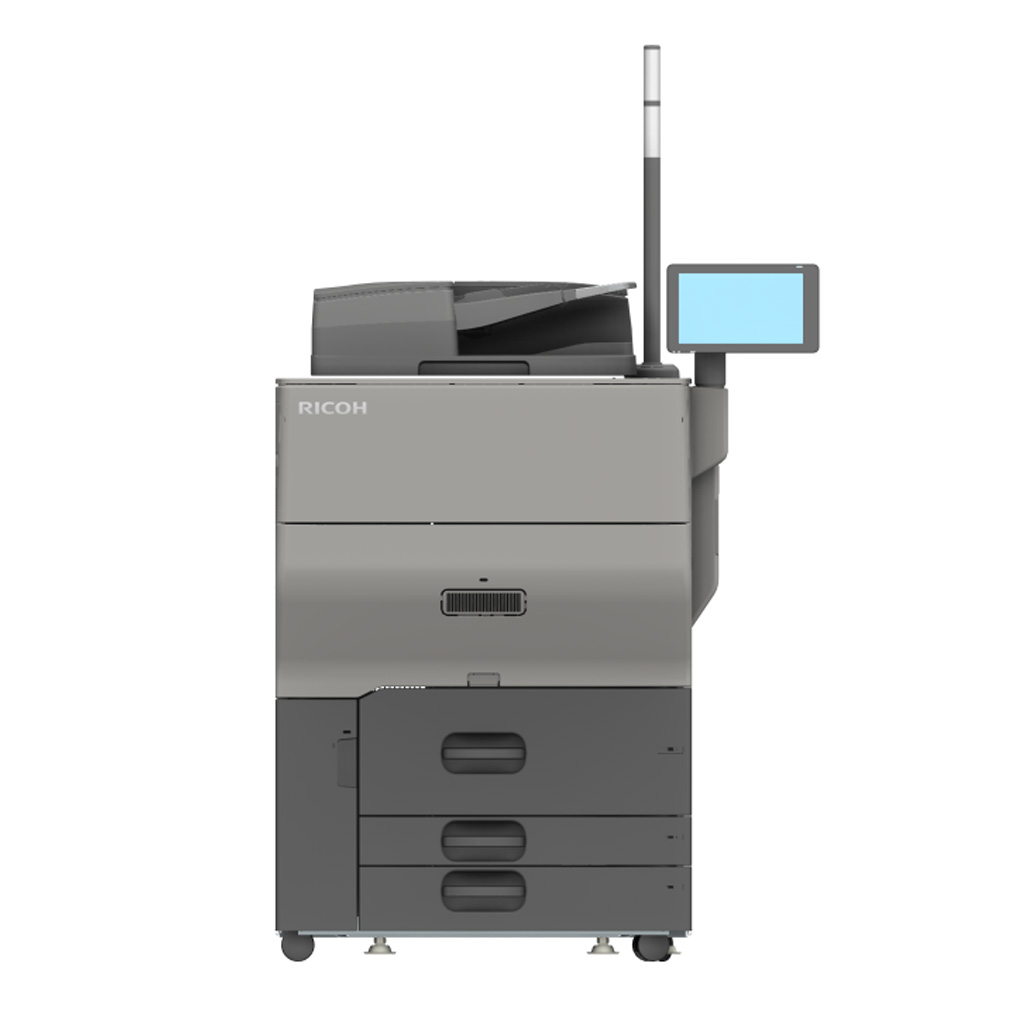

Pro C5310S là thiết bị in ấn công nghiệp đa chức năng: in, scan và copy.
Tốc độ 80 trang/phút và đi kèm với nhiều tính năng cải tiến về chất lượng hình ảnh, hỗ trợ in ấn trên đa dạng vật liệu in, và cải thiện tính khả dụng.
Pro C5310S có thể được nâng cấp bộ xử lý in với Fiery E-27B (nhúng) hoặc bộ xử lý màu E-47B (server gắn ngoài), giúp gia tăng năng suất, ổn định màu sắc cao, và giảm chi phí in ấn.
Máy cũng có khả năng liên kết với đa dạng tùy chọn phù hợp cho doanh nghiệp in ấn thương mại, bao gồm bộ cấp giấy hút hơi, bộ thành phẩm cao cấp, bộ chèn tờ bìa, bộ xếp chồng dung lượng lớn, và bộ gấp đa năng.
Thêm vào đó, Pro C5310S có thể in được giấy Carbonless (NCR) khi sử dụng tùy chọn kèm theo, giúp mở rộng khả năng in ấn linh hoạt dữ liệu biến đổi.
LCIT RT4060
Optional side Large Capacity Input Tray significantly increasing the capacity of the device.
Capacity: 4,400 sheets Paper size: A4 LEF, B5 LEF Paper weight: 52–216 g/m2 Dimensions (W x D x H): 352 x 540 x 625 mm Weight: 21.3 kg or less Power consumption: 50 W or less
Notes:
Cannot be installed with LCT RT5140,Bridge Unit BU5030 ,Vacuum-Feed LCT RT5120,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Tray BY5020,Multi-Bypass Banner Sheet Tray Type S9,Banner Sheet Guide Tray for A3/11"x17" LCIT Type S13,Carbonless Paper Unit S13
8 1/2" x 14" Paper Size Tray Type M2
Enables feeding of 8.5" x 14" and 8.5" x 11" SEF, and A4 and B4 SEF paper through an Large Capacity Tray (LCT).
Capacity: 2,750 sheets Paper size: 8.5" x 14" SEF, 8.5" x 11" SEF, A4 SEF, B4 SEF Paper weight: 52.3–216 g/m2 Dimensions (W × D × H): 150 × 541 × 625 mm Weight: 8.4 kg
Notes:
Cannot be installed with Bridge Unit BU5030 ,Vacuum-Feed LCT RT5120,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Tray BY5020,Multi-Bypass Banner Sheet Tray Type S9,LCT RT5140,Banner Sheet Guide Tray for A3/11"x17" LCIT Type S13,Carbonless Paper Unit S13

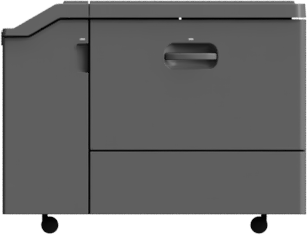

LCT RT5140
Optional Large Capacity Tray significantly increasing the capacity of the device.
Capacity: 2,200 sheets Paper size: A5–13" x 19.2" Custom size: 100–330.2 mm x 139.7–487.7 mm Paper weight: 52.3–300 g/m2 Note: 360 g/m2 paper can be fed but quality is not guaranteed. Air assisted paper feed: Supported Dimensions (W x D x H): 869 x 730 x 658 mm Weight: 83 kg or less Power consumption: 85 W or less
Notes:
Cannot be installed with LCIT RT4060,8 1/2" x 14" Paper Size Tray Type M2,Bridge Unit BU5030 ,Vacuum-Feed LCT RT5120,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Tray BY5020,Multi-Bypass Banner Sheet Tray Type S9,Carbonless Paper Unit S13
Banner Sheet Guide Tray for A3/11"x17" LCIT Type S13
An optional tray for a Large Capacity Tray (LCT) to feed banner sheet paper. Note: SR4000 or SR5000 Series Output Tray for Banner Sheet Tray Type S6 is required for banner sheet output.
Capacity: 250 sheets Paper size: 100–330.2 mm x 487.8–700 mm Note: Simplex printing up to 1,260 mm supported when sheets are fed individually. Paper weight: 52.3–300 g/m2 Dimensions (W x D x H): 516 x 718 x 135 mm Weight: 1.98 kg
Notes:
By choosing this option the LCT RT5140 will be added to the configuration.
Cannot be installed with LCIT RT4060,8 1/2" x 14" Paper Size Tray Type M2,Vacuum-Feed LCT RT5120,Bridge Unit BU5030 ,Multi-Bypass Tray BY5020,Multi-Bypass Banner Sheet Tray Type S9,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S6,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Carbonless Paper Unit S13

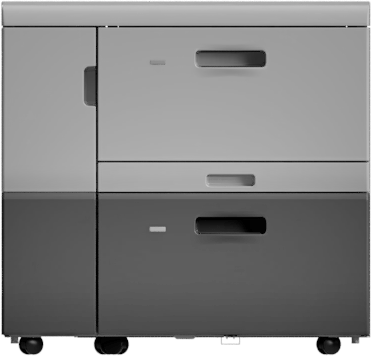

Vacuum-Feed LCT RT5120
Optional Large Capacity Tray significantly increasing the capacity of the device. This option features a vacuum-feed mechanism for excellent paper feeding accuracy.
Capacity: 4,400 sheets (2 x 2,200 sheet trays); 2,200 sheets with Vacuum-Feed Banner Sheet Tray Type S9 attached Paper size: A5–13" x 19.2" Custom size: 100–330.2 mm x 139.7–487.7 mm Paper weight: 52–470 g/m² Note: Supported paper weight depends on mainframe. Paper transfer method: Air pick Active tray indicator LED: Supported Dimensions (W x D x H) : 1,054 x 730 x 1,000 mm; 1,290 x 730 x 1,000 mm with Vacuum-Feed Banner Sheet Tray Type S9 attached Weight: 220 kg or less; 227 kg or less with Vacuum-Feed Banner Sheet Tray Type S9 attached Power source: 220–240 V Power consumption: 1,000 W or less
Notes:
By choosing this option the Bridge Unit BU5030 will be added to the configuration.
Cannot be installed with Multi-Bypass Banner Sheet Tray Type S6,LCIT RT4060,8 1/2" x 14" Paper Size Tray Type M2,LCT RT5140,Banner Sheet Guide Tray for A3/11"x17" LCIT Type S13
Bridge Unit BU5030
Bridge unit required to connect the Vacuum-Feed LCT RT5120 to the mainframe.
Configuration: Console Jam detection: Supported Power source: From mainframe Dimensions (W x D x H): 225 x 730 x 1,000 mm Weight: 41 kg Power consumption: 83.6 W
Notes:
By choosing this option the Vacuum-Feed LCT RT5120 will be added to the configuration.
Cannot be installed with Multi-Bypass Banner Sheet Tray Type S6,LCIT RT4060,8 1/2" x 14" Paper Size Tray Type M2,LCT RT5140,Banner Sheet Guide Tray for A3/11"x17" LCIT Type S13
Vacuum-Feed Banner Sheet Tray Type S9
Enables feeding of up to 700 mm banner sheet pages for a wider variety of applications. This option is attached to the upper tray of the Vacuum-Feed LCIT RT5150.
Capacity: 730 sheets Paper size: 210–330.2 mm x 420–700 mm Paper weight: 52–300 g/m² Note: Supported paper weight depends on mainframe. Power source: From LCT Dimensions (W x D x H): 1,290 x 730 x 1,000 mm—when attached to LCT; 1,290 x 730 x 1,302 mm—with cover open Weight: 7 kg or less
Notes:
By choosing this option the Vacuum-Feed LCT RT5120 will be added to the configuration.
Cannot be installed with Multi-Bypass Banner Sheet Tray Type S6,LCIT RT4060,8 1/2" x 14" Paper Size Tray Type M2,LCT RT5140,Multi-Bypass Banner Sheet Tray Type S9,Banner Sheet Guide Tray for A3/11"x17" LCIT Type S13
Carbonless Paper Unit S13
Enables users to feed carbonless paper from the Vacuum-Feed LCIT RT5120.
Notes:
By choosing this option the Vacuum-Feed LCT RT5120 will be added to the configuration.
Cannot be installed with LCIT RT4060,LCT RT5140,8 1/2" x 14" Paper Size Tray Type M2,Banner Sheet Guide Tray for A3/11"x17" LCIT Type S13,Multi-Bypass Banner Sheet Tray Type S6
Multi-Bypass Tray BY5020
Feeds up to 500 sheets of uncoated paper stocks for expanded system capacity and document output types.
Capacity: 500 sheets Paper size: A5–13" x 19.2" Custom size: 100 x 330.2 x 139.7 x 487.7 mm Paper weight: 52–216 g/m² Power source: From mainframe Paper volume sensors: In 4 steps, near end 0%, 50%, 100% Dimensions (W x D x H): 690 x 561 x 210 mm Weight: 20 kg or less
Notes:
By choosing this option the Vacuum-Feed LCT RT5120,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9 will be added to the configuration.
Cannot be installed with Multi-Bypass Banner Sheet Tray Type S6,LCIT RT4060,8 1/2" x 14" Paper Size Tray Type M2,LCT RT5140,Banner Sheet Guide Tray for A3/11"x17" LCIT Type S13
Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
Required to configure the Multi-Bypass Tray BY5020 with the Vacuum-Feed LCIT RT5150.
Notes:
By choosing this option the Vacuum-Feed LCT RT5120,Multi-Bypass Tray BY5020 will be added to the configuration.
Cannot be installed with Multi-Bypass Banner Sheet Tray Type S6,LCIT RT4060,8 1/2" x 14" Paper Size Tray Type M2,LCT RT5140,Banner Sheet Guide Tray for A3/11"x17" LCIT Type S13
Multi-Bypass Banner Sheet Tray Type S9
Extender for Multi-Bypass Tray BY5020 to accommodate oversize prints up to 700 mm in size and up to 216 g/m2 in weight.
Note: SR5000 Series Output Tray For Banner Sheet Type S6 is required for banner sheet output, as this option doesn’t include an output tray for finisher.
Capacity: 500 sheets Paper size: A5–A3, 13” x 19.2” Custom size: 100–330.2 x 139.7–700 mm Note: Simplex printing up to 1,260 mm supported when sheets are fed individually. Paper weight: 52.3–216 g/m² Dimensions (W x D x H): 1,090 x 561 x 210 mm Weight: 9.5 kg or less
Notes:
By choosing this option the Multi-Bypass Tray BY5020 will be added to the configuration.
Cannot be installed with Multi-Bypass Banner Sheet Tray Type S6,LCIT RT4060,8 1/2" x 14" Paper Size Tray Type M2,LCT RT5140,Vacuum-Feed Banner Sheet Tray Type S9,Banner Sheet Guide Tray for A3/11"x17" LCIT Type S13
Multi-Bypass Banner Sheet Tray Type S6
Extender for the bypass tray to accommodate oversize prints up to 700 mm. Note: SR4000 or SR5000 Series Output Tray for Banner Sheet Tray Type S6 is required for banner sheet output.
Capacity: 50 sheets—100.9 g/m2; 25 sheets—150 g/m2; 10 sheets—300 g/m2 Paper size: 100–330.2 mm x 487.8–700 mm Note: Simplex printing up to 1,260 mm supported when sheets are fed individually. Paper weight: 52.3–300 g/m2 Dimensions (W x D x H): 350 x 220 x 360 mm Weight: 1.1 kg or less
Notes:
Cannot be installed with Bridge Unit BU5030 ,Vacuum-Feed LCT RT5120,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Tray BY5020,Multi-Bypass Banner Sheet Tray Type S9,Banner Sheet Guide Tray for A3/11"x17" LCIT Type S13,Carbonless Paper Unit S13
A3/11"x17" Tray Unit Type M26
Converts the standard paper input tray from a tandem A4 tray to an A3 tray.
Capacity: 1,000 sheets Paper size: A5–A3, B5–B4 Dimensions (W x D x H): 520 x 514 x 207 mm Weight: 11 kg or less
Page Keeper Type M37
Supports SPDF as a double feed detection unit preventing more than one page from being scanned at a time.
Tab Sheet Holder M2
Recommended to be used when loading tab stock in the paper trays. Note: Can be used in either Tray 2 or Tray 3, but not both.
Copy Tray Type M42
A basic tray for printed and copied output when no advanced finishing—including stapling, hole punching, folding, or booklet making—is required. Output is delivered face down in a neat stack.
Capacity: 500 sheets Paper size: A6–13” x 19.2” Custom size: 90–330.2 mm x 139.7–487.7 mm Paper weight: 52.3–360 g/m2 Dimensions (W x D x H): 350 x 513 x 192 mm Weight: 2.2 kg or less
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050,Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 EU ,Punch Unit PU5030 NA,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Trimmer Unit TR5050,High Capacity Stacker SK5040,Decurl Unit DU5080,Buffer Pass Unit Type S9,Multi-Folding Unit FD5020,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Roll-Away Cart Type 5010
Decurl Unit DU5080
Reduces the natural paper curl that can occur, delivering sheets with optimal flatness. Ideal for applications that are frequently printed with high toner coverage on thin paper and paper with long grain.
Paper size: Up to 330.2 x 487.7 mm (13" x 19.2") Paper weight: 52–300 g/m2 Paper jam detection: Supported Decurler functions: Pressure adjustment; 5 steps—from operation panel Curl type: Back curl, Face curl—manual switching Purge function (stack capability): Not supported Power source: From mainframe Dimensions (W x D x H): 376 x 885 x 1,140 mm Weight: 30 kg or less Power consumption: 30 W
Notes:
Cannot be installed with Copy Tray Type M42

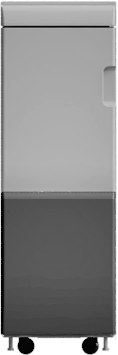

Buffer Pass Unit Type S9
Cools down printed paper to prevent toner adhesion or sticking before the paper is stacked or sent to the finishers. Recommended for printing on coated stocks, or with high toner coverage.
Paper weight: 40–470 g/m² Note: Paper weight support dependent on mainframe. Power source: 220–240 V, 50–60 Hz, 1.5 A Power consumption: Less than 200 W Dimensions (W x D x H): 330 x 730 x 1,010 mm Weight: Less than 90 kg
Notes:
Cannot be installed with Copy Tray Type M42

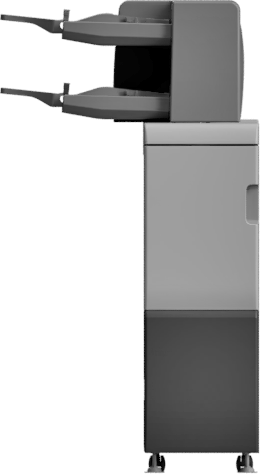

Cover Interposer Tray CI5040
Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.
Capacity: 400 sheets (200 sheets x 2 trays) Paper height: 22 mm Paper size: A5–13" x 19.2" Custom size: 139.7–330.2 mm x 139.7–487.7 mm Available size: 139.7–1,260 mm (length), 100–330.2 mm (width) Paper weight: 52.3–350 g/m2 with plain paper; 105.1—350 g/m2 with coated paper Dimensions (W x D x H): 740 x 730 x 1,350 mm; width for connecting part is 330 mm Weight: 60 kg Power source: From mainframe Power consumption: 110 W, excluding peak consumption
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050,Copy Tray Type M42
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Cover Interposer Tray Double-Feed Detection Kit Type S11
When attached to the cover interposer, detects double feeds from the interposer.
Dimensions (W x D x H): 126 x 317 x 56 mm Weight: 0.4 kg
Notes:
By choosing this option the Cover Interposer Tray CI5040 will be added to the configuration.
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050,Copy Tray Type M42

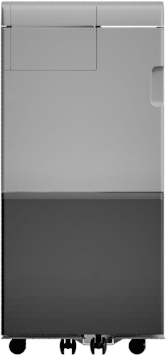

Multi-Folding Unit FD5020
Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.
Folding types: Single sheet mode Z-fold, Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out, Double parallel/print inside, Double parallel/print outside, Gate fold/print inside, Gate fold/print outside Multiple sheet mode (up to 3 sheets) Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out Note: Coated paper is also supported.
Paper size: A4—13" x 19.2" Paper weight: 64–105 g/m2—single sheet mode 64–80 g/m2—multiple sheet mode
Power source: External, 220–240 V, 50–60 Hz Power consumption: 240 W or less Dimensions (W x D x H): 470 x 730 x 1,000 mm Weight: 92 kg or less
Notes:
Cannot be installed with Cooling Fan Unit Type M26,Copy Tray Type M42

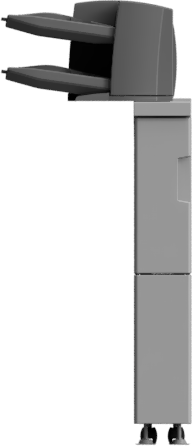

Cover Interposer Tray CI5050
Allows pre-printed covers and inserts to be easily fed into the finishing workflow. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.
Capacity: 200 sheets Paper size: A5–A3 Paper weight: 64–216 g/m2 Original set position: Centre Position: Face up, starts printing from top sheet Dimensions (W x D x H): 500 x 600 x 600 mm Weight: 12 kg or less Power consumption: 43 W or less
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Trimmer Unit TR5050,High Capacity Stacker SK5040,Copy Tray Type M42,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Roll-Away Cart Type 5010
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100

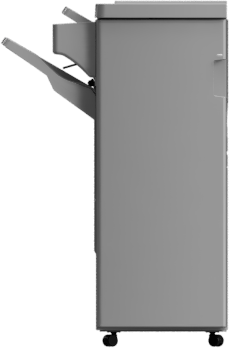

Finisher SR5090
Provides multi-position stapling and optional hole punching.
Capacity: 3,000 sheets Paper size: A3–A5, B6, A6, SRA3, 13" x 19.2" Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm; 210 x 487.8–330.2 x 1,260 mm with banner paper Paper weight: 52–220 g/m2 Staple capacity: 65 sheets Staple positions: Top, bottom, 2 staple, top slant Staple position adjustment: Supported; two position staple only Staple paper weight: 52–105 g/m2 Optional punch unit PU3090 available Output jogger: Optional Dimensions (W x D x H): 657 x 730 x 980 mm with all extendable trays closed Weight: 38 kg or less Power consumption: 67 W
Notes:
Cannot be installed with Booklet Finisher SR5100,Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Trimmer Unit TR5050,High Capacity Stacker SK5040,Copy Tray Type M42,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Roll-Away Cart Type 5010

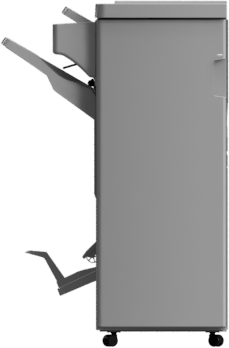

Booklet Finisher SR5100
Allows documents to be professionally finished as saddle-stitched booklets with minimal effort. Provides 65-sheet stapling and optional hole punching.
Capacity: 2,000 sheets Paper size: A3–A5, B6, A6, SRA3, 13" x 19.2" Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm; 210 x 487.8–330.2 x 1,260 mm for banner paper Paper weight: 52–220 g/m2 Staple capacity: 65 sheets Staple positions: Top, bottom, 2 staple, top slant Staple position adjustment: Supported; two position staple only Staple paper weight: 52–105 g/m2 (plain paper); 81.4–104.7 g/m2 (glossy/matte paper) Saddle stitch staple: 20 sheets (80-page booklet) Optional punch unit PU3090 available Output jogger: Optional Dimensions (W x D x H): 657 x 730 x 980 mm with all extendable trays closed Weight: 53 kg or less Power consumption: 67 W
Notes:
Cannot be installed with Finisher SR5090,Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Trimmer Unit TR5050,High Capacity Stacker SK5040,Copy Tray Type M42,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Roll-Away Cart Type 5010
SR4000 Series Output Tray for Banner Sheet Type S6
Required for banner sheet output for selected Ricoh finishers and booklet finishers.
Capacity: 50 sheets (300 g/m2, 330 x 700 mm) Paper size: width 210–330.2 mm, length 420–700 mm Paper weight 52.3–300 g/m2
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Trimmer Unit TR5050,High Capacity Stacker SK5040,Copy Tray Type M42,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Roll-Away Cart Type 5010
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100
Output Jogger Unit Type S11
A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs.
Note: Supported paper specifications are determined by the attached mainframe.
Paper size: A3 SEF, B4 SEF, A4 SEF, A4 LEF, B5 LEF, A5 LEF, 12” x 18", 13” x 19.2” Dimensions (W x D x H): 169 x 539 x 203 mm—including jogger operating range Weight: 2 kg or less Power consumption: 15 W or less
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Trimmer Unit TR5050,High Capacity Stacker SK5040,Copy Tray Type M42,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Roll-Away Cart Type 5010
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100
Cooling Fan Unit Type M26
Installed in a finisher to reduce the occurrence of blocking on jobs printed with high toner coverage.
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Trimmer Unit TR5050,High Capacity Stacker SK5040,Copy Tray Type M42,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Multi-Folding Unit FD5020,Roll-Away Cart Type 5010
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100

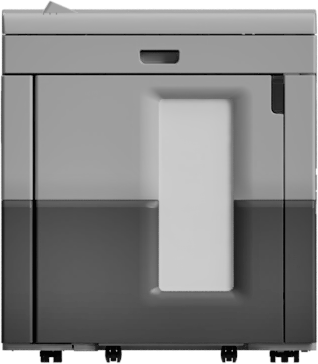

High Capacity Stacker SK5040
Allows to handle large volume of output and move it with a roll-away cart that is included as standard. Up to 2 stackers can be configured in one system. An additional roll-away cart is available.
Proof tray: Stack capacity: 250 sheets Paper size: A6–13" x 19.2" Paper weight:40–470 g/m2 Note: 487–1,260 mm banner sheet supported when finisher is not attached. Actual supported paper weight is dependent on the mainframe. Shift tray: Stack capacity: 5,000 sheets—A4–13" x 19.2"; 2,500 sheets—B5 Paper size: 139.7 x 139.7 mm–331 x 488 mm (13" x 19.2") Paper weight: 40–470 g/m2 Note: Actual supported paper weight is dependent on the mainframe.
Output jogger: Standard Roll-away cart: Includes 1 cart. Additional cart is optional. Door lock: Optional; includes a bracket for the lock Dimensions (W x D x H): 900 x 730 x 1,010 mm Weight: 131 kg or less: 135 kg or less with roll-away cart Power source: 220–240 V, 50–60 Hz, 0.8 Amps Power consumption: Less than 120 W
Notes:
By choosing this option the Decurl Unit DU5080 will be added to the configuration.
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050,Copy Tray Type M42
Roll-Away Cart Type 5010
An additonal roll-away cart for the High-Capacity Stacker SK5040.
Weight: 15 kg
Notes:
By choosing this option the High Capacity Stacker SK5040 will be added to the configuration.
Cannot be installed with Copy Tray Type M42,Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050
Finisher SR5110
Provides 100-sheet stapling and optional hole punching.
Paper size: Max. 330.2 x 487.7 mm (13" x 19.2"); min. 139.7 x 139.7 mm—without Z-fold 330.2 x 1,260 mm—with banner sheet output tray Max. 304 x 457 mm; min. 139.7 x 139.7 mm—with Z-fold
Paper weight: 40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)—without Z-fold 64–105 g/m2 —with Z-fold Note: Supported paper weight is dependent on the mainframe.
Staple capacity: 100 sheets (A4); 50 sheets (A3) Staple positions: top, bottom, 2 staple, top slant Staple paper weight: 64–80 g/m2 (without Z-fold); 64–105 g/m2 (with Z-fold) Optional punch unit PU5030 available Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray) Weight: 135 kg Power source: 220–240 V ±10%, 50/60 Hz Power consumption: 150 W
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050,Booklet Finisher SR5120,Trimmer Unit TR5050,Copy Tray Type M42

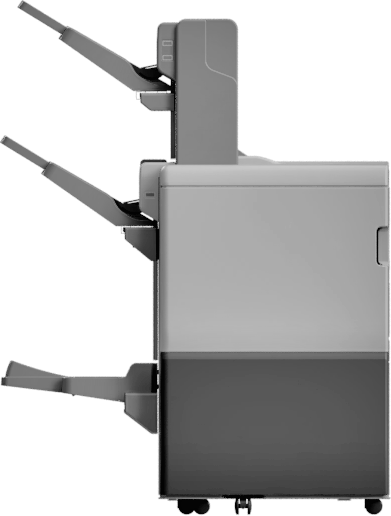

Booklet Finisher SR5120
Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Comes with dual shift trays for ‘non-stop delivery.’ Punch option is available.
Capacity: 3,500 sheets (dual shift tray)
Paper size: Without Z-fold Max. 330.2 x 487.7 mm (13" x 19.2"), min. 139.7 x 139.7 mm 330.2 x 1,260 mm—with banner sheet output tray With Z-fold Max. 304 x 457 mm, min. 139.7 x 139.7 mm
Paper weight: Without Z-fold 40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray) With Z-fold 64–105 g/m2 Note: Supported paper weight is dependent on the mainframe.
Staple capacity: 100 sheets (A4); 50 sheets (A3) Staple positions: top, bottom, 2 staple, top slant Staple paper weight: without Z-fold: 64–80 g/m2; with Z-fold: 64–105 g/m2 Saddle stitch staple: 30 sheets (120-page booklet) with 80 g/m2 paper Optional punch unit PU5030 available Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray) Weight: 160 kg Power consumption: 150 W
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050,Finisher SR5110,Copy Tray Type M42
SR5000 Series Output Tray for Banner Sheet Type S6
Required for banner sheet output for selected Ricoh finishers and booklet finishers.
Capacity: 200 sheets (0.11mm/sheet) Paper size: width 210–330.2 mm, length 420–700 mm Paper weight: 52.3–300.0 g/m2
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050,Copy Tray Type M42
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120

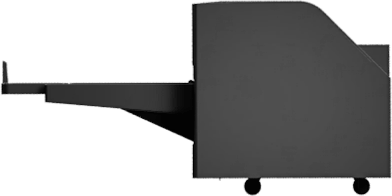

Trimmer Unit TR5050
Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5120 is required in order to attach this option.
Stacker full detection: Supported Limitless stack: Supported Note: This setting is not user configurable; it needs to be configured by a Ricoh service engineer. Power source: External, universal power supply, 100–240 V, 50 Hz Power consumption: 75 W—average; 250 W—maximum Dimensions (W x D x H): 1,115 x 591 x 555 mm Weight: 75 kg
Notes:
By choosing this option the Booklet Finisher SR5120 will be added to the configuration.
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050,Finisher SR5110,Copy Tray Type M42
Punch Unit PU3090 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Paper size: 2-hole punch A5 SEF–A3 SEF, HLT–DLT SEF A5–A4 LEF, HLT LEF, LT LEF Note: A4 SEF and A5 LEF are not supported with 2 hole punch. 4-hole punch B4 SEF, A3 SEF, DLT SEF A4 LEF, B5 LEF, LT LEF Paper weight: 52–256 g/m2 Weight: 2 kg
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Trimmer Unit TR5050,High Capacity Stacker SK5040,Copy Tray Type M42,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Roll-Away Cart Type 5010
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100
Punch Unit PU3090 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Paper size: 2-hole punch A5 SEF–A3 SEF, HLT–DLT SEF A5–A4 LEF, HLT LEF, LT LEF Note: A4 SEF and A5 LEF are not supported with 2 hole punch. 3-hole punch B4 SEF, A3 SEF, DLT SEF A4 LEF, B5 LEF, LT LEF Paper weight: 52–256 g/m2 Weight: 2 kg
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Trimmer Unit TR5050,High Capacity Stacker SK5040,Copy Tray Type M42,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU3090 SC,Punch Unit PU3090 EU,Roll-Away Cart Type 5010
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100
Punch Unit PU3090 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Paper size: A5 SEF–A3 SEF, HLT–DLT SEF A5–A4 LEF, HLT LEF, LT LEF Paper weight: 52–256 g/m2 Weight: 2 kg
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Trimmer Unit TR5050,High Capacity Stacker SK5040,Copy Tray Type M42,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Roll-Away Cart Type 5010
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100
Punch Unit PU5030 EU
Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages.
Number of punch: 2 or 4 holes interchangeable Punch registration: Supported; resist roller and side registration sensor Paper weight: 52–300 g/m2 Performance: Same as engine speed
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050,Copy Tray Type M42,Punch Unit PU5030 NA,Punch Unit PU5030 SC
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 NA
Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages.
Number of punch: 2 or 3 holes interchangeable Punch registration: Supported; resist roller and side registration sensor Paper weight: 52–300 g/m2 Performance: Same as engine speed
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050,Copy Tray Type M42,Punch Unit PU5030 SC ,Punch Unit PU5030 EU
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 SC
Installed in a finisher of a printing device to enable automatic 4-hole punching of pages.
Number of punch: 4 holes Punch registration: Supported; resist roller and side registration sensor Paper weight: 52–300 g/m2 Performance: Same as engine speed
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Output Jogger Unit Type S11,SR4000 Series Output Tray for Banner Sheet Type S6,Punch Unit PU3090 EU,Punch Unit PU3090 NA,Punch Unit PU3090 SC,Cooling Fan Unit Type M26,Cover Interposer Tray CI5050,Copy Tray Type M42,Punch Unit PU5030 NA,Punch Unit PU5030 EU
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Colour Controller E-27B
An embedded colour controller that is based on the EFI Fiery FS400 platform and is targeted towards in-plants and light volume production operations. It delivers superior out-of-the-box colour and intuitive job management tools to produce professional documents in less time.
Notes:
Cannot be installed with Colour Controller E-47B,XPS Direct Print Option Type M42
Colour Controller E-47B
An external colour controller that is based on the EFI Fiery FS400 Pro platform and is targeted at Print for Pay and mid-volume production environments. It delivers superior out-of-the-box colour and intuitive job management tools to produce professional documents in less time.
Notes:
Cannot be installed with Colour Controller E-27B,XPS Direct Print Option Type M42
PostScript 3 Unit Type M42
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
IPDS Unit Type M42
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
OCR Unit Type M13
Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
XPS Direct Print Option Type M42
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
Notes:
Cannot be installed with Colour Controller E-27B,Colour Controller E-47B
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
File Format Converter Type M19
Allows users to save copy and print jobs stored on the document server to a computer.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,IEEE 802.11a/g/n Interface Unit Type M19
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
Notes:
Cannot be installed with File Format Converter Type M19,IEEE 802.11a/g/n Interface Unit Type M19
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with File Format Converter Type M19,IEEE 1284 Interface Board Type M19
Copy Connector Type M25
Allows two mainframes to be connected for simultaneous copying of the same job.
Numeric Keypad Type S13
A numeric keypad for the Smart Operation Panel.
DataOverwriteSecurity Unit Type M19
Erases the temporary data on the hard disk drive. For customers who require ISO 15408 certification prior to the printer or MFP system being IEEE 2600.1 certified.
Media Identification Unit Type S3
Used for searching and registering media. Displays media options with similar printing setting characteristics that are already registered in the paper catalog and the customer paper list.
Extended USB Board Type M19
Enables printing from USB Type B port.
Standard inclusions
Current configuration
Pro C5310S
799 mm x880 mm x1648 mm (W x D x H)
262 kg
Selected Options:
{"configuratorid":"518ab71d-1e43-45be-b73e-ca93d2082999","productid":"11dcabc6-537b-4dc4-8f42-97ec5f65df2c","edpcode":"409397","productdisplayname":"Pro C5310S","width":799.0,"height":1648.0,"depth":880.0,"weight":262.0,"mainframe_imageurl":"-/media/all-regional/images/product-images/commercial-and-industrial-printing-solutions/cut-sheet/pro-c5300s-and-pro-c5310s/configurator/mainframe-with-sop.png?dmc=0&hash=4573E4FA834232F1DA957A58E2446A4D","configurator_hash":"1f1be0b6-e335-48cc-ae59-d4f6f93d9e1c","options":{"418191":{"edpcode":"418191","displayname":"LCIT RT4060","extras":[],"width":352.0,"height":625.0,"depth":540.0,"weight":213.0,"show_image":true,"hide_until_required":false},"416637":{"edpcode":"416637","displayname":"8 1/2\" x 14\" Paper Size Tray Type M2","extras":[],"width":150.0,"height":625.0,"depth":541.0,"weight":84.0,"show_image":false,"hide_until_required":false},"409417":{"edpcode":"409417","displayname":"LCT RT5140","extras":[],"width":869.0,"height":658.0,"depth":730.0,"weight":83.0,"show_image":true,"hide_until_required":false},"409472":{"edpcode":"409472","displayname":"Banner Sheet Guide Tray for A3/11\"x17\" LCIT Type S13","extras":[],"width":516.0,"height":135.0,"depth":718.0,"weight":198.0,"show_image":false,"hide_until_required":false},"409083":{"edpcode":"409083","displayname":"Vacuum-Feed LCT RT5120","extras":[],"width":1054.0,"height":1000.0,"depth":730.0,"weight":220.0,"show_image":true,"hide_until_required":false},"409389":{"edpcode":"409389","displayname":"Bridge Unit BU5030 ","extras":[],"width":225.0,"height":1000.0,"depth":730.0,"weight":41.0,"show_image":true,"hide_until_required":false},"409095":{"edpcode":"409095","displayname":"Vacuum-Feed Banner Sheet Tray Type S9","extras":[],"width":236.0,"height":0.0,"depth":0.0,"weight":7.0,"show_image":true,"hide_until_required":false},"409416":{"edpcode":"409416","displayname":"Carbonless Paper Unit S13","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409090":{"edpcode":"409090","displayname":"Multi-Bypass Tray BY5020","extras":[],"width":690.0,"height":210.0,"depth":561.0,"weight":20.0,"show_image":true,"hide_until_required":false},"409096":{"edpcode":"409096","displayname":"Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409099":{"edpcode":"409099","displayname":"Multi-Bypass Banner Sheet Tray Type S9","extras":[],"width":1090.0,"height":210.0,"depth":561.0,"weight":95.0,"show_image":false,"hide_until_required":false},"404879":{"edpcode":"404879","displayname":"Multi-Bypass Banner Sheet Tray Type S6","extras":[],"width":350.0,"height":360.0,"depth":220.0,"weight":11.0,"show_image":false,"hide_until_required":false},"417883":{"edpcode":"417883","displayname":"A3/11\"x17\" Tray Unit Type M26","extras":[],"width":520.0,"height":207.0,"depth":514.0,"weight":11.0,"show_image":false,"hide_until_required":false},"418368":{"edpcode":"418368","displayname":"Page Keeper Type M37","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"416642":{"edpcode":"416642","displayname":"Tab Sheet Holder M2","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418184":{"edpcode":"418184","displayname":"Copy Tray Type M42","extras":[],"width":350.0,"height":192.0,"depth":513.0,"weight":22.0,"show_image":true,"hide_until_required":false},"409405":{"edpcode":"409405","displayname":"Decurl Unit DU5080","extras":[],"width":376.0,"height":1140.0,"depth":885.0,"weight":30.0,"show_image":true,"hide_until_required":false},"409187":{"edpcode":"409187","displayname":"Buffer Pass Unit Type S9","extras":[],"width":330.0,"height":1010.0,"depth":730.0,"weight":90.0,"show_image":true,"hide_until_required":false},"409258":{"edpcode":"409258","displayname":"Cover Interposer Tray CI5040","extras":[],"width":330.0,"height":1350.0,"depth":730.0,"weight":60.0,"show_image":true,"hide_until_required":false},"409259":{"edpcode":"409259","displayname":"Cover Interposer Tray Double-Feed Detection Kit Type S11","extras":[],"width":126.0,"height":56.0,"depth":317.0,"weight":4.0,"show_image":false,"hide_until_required":false},"404541":{"edpcode":"404541","displayname":"Multi-Folding Unit FD5020","extras":[],"width":470.0,"height":1000.0,"depth":730.0,"weight":92.0,"show_image":true,"hide_until_required":false},"409418":{"edpcode":"409418","displayname":"Cover Interposer Tray CI5050","extras":[],"width":500.0,"height":600.0,"depth":600.0,"weight":12.0,"show_image":true,"hide_until_required":false},"409235":{"edpcode":"409235","displayname":"Finisher SR5090","extras":[],"width":657.0,"height":980.0,"depth":730.0,"weight":38.0,"show_image":true,"hide_until_required":false},"409234":{"edpcode":"409234","displayname":"Booklet Finisher SR5100","extras":[],"width":657.0,"height":980.0,"depth":730.0,"weight":53.0,"show_image":true,"hide_until_required":false},"404872":{"edpcode":"404872","displayname":"SR4000 Series Output Tray for Banner Sheet Type S6","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409426":{"edpcode":"409426","displayname":"Output Jogger Unit Type S11","extras":[],"width":169.0,"height":203.0,"depth":539.0,"weight":2.0,"show_image":false,"hide_until_required":false},"417677":{"edpcode":"417677","displayname":"Cooling Fan Unit Type M26","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409094":{"edpcode":"409094","displayname":"High Capacity Stacker SK5040","extras":[],"width":900.0,"height":1010.0,"depth":730.0,"weight":131.0,"show_image":true,"hide_until_required":false},"404218":{"edpcode":"404218","displayname":"Roll-Away Cart Type 5010","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409251":{"edpcode":"409251","displayname":"Finisher SR5110","extras":[],"width":1113.0,"height":1490.0,"depth":730.0,"weight":135.0,"show_image":true,"hide_until_required":false},"409252":{"edpcode":"409252","displayname":"Booklet Finisher SR5120","extras":[],"width":1113.0,"height":1490.0,"depth":730.0,"weight":160.0,"show_image":true,"hide_until_required":false},"404877":{"edpcode":"404877","displayname":"SR5000 Series Output Tray for Banner Sheet Type S6","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409255":{"edpcode":"409255","displayname":"Trimmer Unit TR5050","extras":[],"width":1115.0,"height":555.0,"depth":591.0,"weight":75.0,"show_image":true,"hide_until_required":false},"418333":{"edpcode":"418333","displayname":"Punch Unit PU3090 EU","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"hide_until_required":false},"418332":{"edpcode":"418332","displayname":"Punch Unit PU3090 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"hide_until_required":false},"418334":{"edpcode":"418334","displayname":"Punch Unit PU3090 SC","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":2.0,"show_image":false,"hide_until_required":false},"409269":{"edpcode":"409269","displayname":"Punch Unit PU5030 EU ","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409268":{"edpcode":"409268","displayname":"Punch Unit PU5030 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409270":{"edpcode":"409270","displayname":"Punch Unit PU5030 SC ","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409390":{"edpcode":"409390","displayname":"Colour Controller E-27B","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409401":{"edpcode":"409401","displayname":"Colour Controller E-47B","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418194":{"edpcode":"418194","displayname":"PostScript 3 Unit Type M42","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418200":{"edpcode":"418200","displayname":"IPDS Unit Type M42","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417430":{"edpcode":"417430","displayname":"OCR Unit Type M13","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418197":{"edpcode":"418197","displayname":"XPS Direct Print Option Type M42","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417111":{"edpcode":"417111","displayname":"Optional Counter Interface Unit Type M12","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417508":{"edpcode":"417508","displayname":"File Format Converter Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417596":{"edpcode":"417596","displayname":"IEEE 1284 Interface Board Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417493":{"edpcode":"417493","displayname":"IEEE 802.11a/g/n Interface Unit Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417657":{"edpcode":"417657","displayname":"Copy Connector Type M25","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409383":{"edpcode":"409383","displayname":"Numeric Keypad Type S13","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417499":{"edpcode":"417499","displayname":"DataOverwriteSecurity Unit Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"404882":{"edpcode":"404882","displayname":"Media Identification Unit Type S3","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417566":{"edpcode":"417566","displayname":"Extended USB Board Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false}},"rules":[{"condition":{"condition_name":"TrueCondition","trigger_options":["418191"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409417","409389","409083","409096","409095","409090","409099","409472","409416"],"should_validate_after_excute":false,"excludes":["409417","409389","409083","409096","409095","409090","409099","409472","409416"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["416637"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409389","409083","409096","409095","409090","409099","409417","409472","409416"],"should_validate_after_excute":false,"excludes":["409389","409083","409096","409095","409090","409099","409417","409472","409416"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409417"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418191","416637","409389","409083","409096","409095","409090","409099","409416"],"should_validate_after_excute":false,"excludes":["418191","416637","409389","409083","409096","409095","409090","409099","409416"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409472"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409417"],"should_validate_after_excute":false,"requires":["409417"]},{"action_name":"ExcludeOptionAction","affect_to_options":["418191","416637","409083","409389","409090","409099","409095","404879","409096","409416"],"should_validate_after_excute":false,"excludes":["418191","416637","409083","409389","409090","409099","409095","404879","409096","409416"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409083"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409389"],"should_validate_after_excute":false,"requires":["409389"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404879","418191","416637","409417","409472"],"should_validate_after_excute":false,"excludes":["404879","418191","416637","409417","409472"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409389"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409083"],"should_validate_after_excute":false,"requires":["409083"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404879","418191","416637","409417","409472"],"should_validate_after_excute":false,"excludes":["404879","418191","416637","409417","409472"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409095"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409083"],"should_validate_after_excute":false,"requires":["409083"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404879","418191","416637","409417","409099","409472"],"should_validate_after_excute":false,"excludes":["404879","418191","416637","409417","409099","409472"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409416"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409083"],"should_validate_after_excute":false,"requires":["409083"]},{"action_name":"ExcludeOptionAction","affect_to_options":["418191","409417","416637","409472","404879"],"should_validate_after_excute":false,"excludes":["418191","409417","416637","409472","404879"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409090"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409083","409096"],"should_validate_after_excute":false,"requires":["409083","409096"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404879","418191","416637","409417","409472"],"should_validate_after_excute":false,"excludes":["404879","418191","416637","409417","409472"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409096"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409083","409090"],"should_validate_after_excute":false,"requires":["409083","409090"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404879","418191","416637","409417","409472"],"should_validate_after_excute":false,"excludes":["404879","418191","416637","409417","409472"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409099"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409090"],"should_validate_after_excute":false,"requires":["409090"]},{"action_name":"ExcludeOptionAction","affect_to_options":["404879","418191","416637","409417","409095","409472"],"should_validate_after_excute":false,"excludes":["404879","418191","416637","409417","409095","409472"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404879"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409389","409083","409096","409095","409090","409099","409472","409416"],"should_validate_after_excute":false,"excludes":["409389","409083","409096","409095","409090","409099","409472","409416"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418184"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409426","404872","418333","418332","418334","417677","409418","409251","409252","409269","409268","409270","404877","409255","409094","409405","409187","404541","409258","409259","404218"],"should_validate_after_excute":false,"excludes":["409235","409234","409426","404872","418333","418332","418334","417677","409418","409251","409252","409269","409268","409270","404877","409255","409094","409405","409187","404541","409258","409259","404218"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409405"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418184"],"should_validate_after_excute":false,"excludes":["418184"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409187"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["418184"],"should_validate_after_excute":false,"excludes":["418184"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409258"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184"],"should_validate_after_excute":false,"excludes":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409259"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409258"],"should_validate_after_excute":false,"requires":["409258"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184"],"should_validate_after_excute":false,"excludes":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404541"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417677","418184"],"should_validate_after_excute":false,"excludes":["417677","418184"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409418"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404218"],"should_validate_after_excute":false,"excludes":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404218"]},{"action_name":"RequireOneAction","affect_to_options":["409235","409234"],"should_validate_after_excute":true,"require_ones":["409235","409234"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409235"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409234","409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404218"],"should_validate_after_excute":false,"excludes":["409234","409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404218"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409234"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404218"],"should_validate_after_excute":false,"excludes":["409235","409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404218"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404872"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404218"],"should_validate_after_excute":false,"excludes":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404218"]},{"action_name":"RequireOneAction","affect_to_options":["409235","409234"],"should_validate_after_excute":true,"require_ones":["409235","409234"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409426"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404218"],"should_validate_after_excute":false,"excludes":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404218"]},{"action_name":"RequireOneAction","affect_to_options":["409235","409234"],"should_validate_after_excute":true,"require_ones":["409235","409234"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417677"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404541","404218"],"should_validate_after_excute":false,"excludes":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","404541","404218"]},{"action_name":"RequireOneAction","affect_to_options":["409235","409234"],"should_validate_after_excute":true,"require_ones":["409235","409234"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409094"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409405"],"should_validate_after_excute":false,"requires":["409405"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184"],"should_validate_after_excute":false,"excludes":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404218"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409094"],"should_validate_after_excute":false,"requires":["409094"]},{"action_name":"ExcludeOptionAction","affect_to_options":["418184","409235","409234","409426","404872","418333","418332","418334","417677","409418"],"should_validate_after_excute":false,"excludes":["418184","409235","409234","409426","404872","418333","418332","418334","417677","409418"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409251"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409426","404872","418333","418332","418334","417677","409418","409252","409255","418184"],"should_validate_after_excute":false,"excludes":["409235","409234","409426","404872","418333","418332","418334","417677","409418","409252","409255","418184"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409252"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409426","404872","418333","418332","418334","417677","409418","409251","418184"],"should_validate_after_excute":false,"excludes":["409235","409234","409426","404872","418333","418332","418334","417677","409418","409251","418184"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404877"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184"],"should_validate_after_excute":false,"excludes":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409255"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409252"],"should_validate_after_excute":false,"requires":["409252"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409426","404872","418333","418332","418334","417677","409418","409251","418184"],"should_validate_after_excute":false,"excludes":["409235","409234","409426","404872","418333","418332","418334","417677","409418","409251","418184"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418333"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","418332","418334","404218"],"should_validate_after_excute":false,"excludes":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","418332","418334","404218"]},{"action_name":"RequireOneAction","affect_to_options":["409235","409234"],"should_validate_after_excute":true,"require_ones":["409235","409234"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418332"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","418334","418333","404218"],"should_validate_after_excute":false,"excludes":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","418334","418333","404218"]},{"action_name":"RequireOneAction","affect_to_options":["409235","409234"],"should_validate_after_excute":true,"require_ones":["409235","409234"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418334"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","418332","418333","404218"],"should_validate_after_excute":false,"excludes":["409251","409252","409268","409269","409270","404877","409255","409094","418184","409258","409259","418332","418333","404218"]},{"action_name":"RequireOneAction","affect_to_options":["409235","409234"],"should_validate_after_excute":true,"require_ones":["409235","409234"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409269"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184","409268","409270"],"should_validate_after_excute":false,"excludes":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184","409268","409270"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409268"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184","409270","409269"],"should_validate_after_excute":false,"excludes":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184","409270","409269"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409270"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184","409268","409269"],"should_validate_after_excute":false,"excludes":["409235","409234","409426","404872","418333","418332","418334","417677","409418","418184","409268","409269"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409390"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409401","418197"],"should_validate_after_excute":false,"excludes":["409401","418197"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409401"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409390","418197"],"should_validate_after_excute":false,"excludes":["409390","418197"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["418197"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409390","409401"],"should_validate_after_excute":false,"excludes":["409390","409401"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417508"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417596","417493"],"should_validate_after_excute":false,"excludes":["417596","417493"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417596"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417508","417493"],"should_validate_after_excute":false,"excludes":["417508","417493"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["417493"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["417508","417596"],"should_validate_after_excute":false,"excludes":["417508","417596"]}]}],"affect_group":[["418191","409417","409389","409083","409096","409095","409090","409099","416637","409472","404879","409416"],["417883"],["418368"],["416642"],["418184","409235","409234","409426","404872","418333","418332","418334","417677","409418","409251","409252","409269","409268","409270","404877","409255","409094","409405","409187","404541","409258","409259","404218"],["409390","409401","418197"],["418194"],["418200"],["417430"],["417111"],["417508","417596","417493"],["417657"],["409383"],["417499"],["404882"],["417566"]],"preselect_configs":{},"min_config":{"must_select_at_least_one_option":false,"requires":[],"requireones":[]}}
×
Invalid Configuration
The configuration selected is invalid. Please review the following and then try again.
