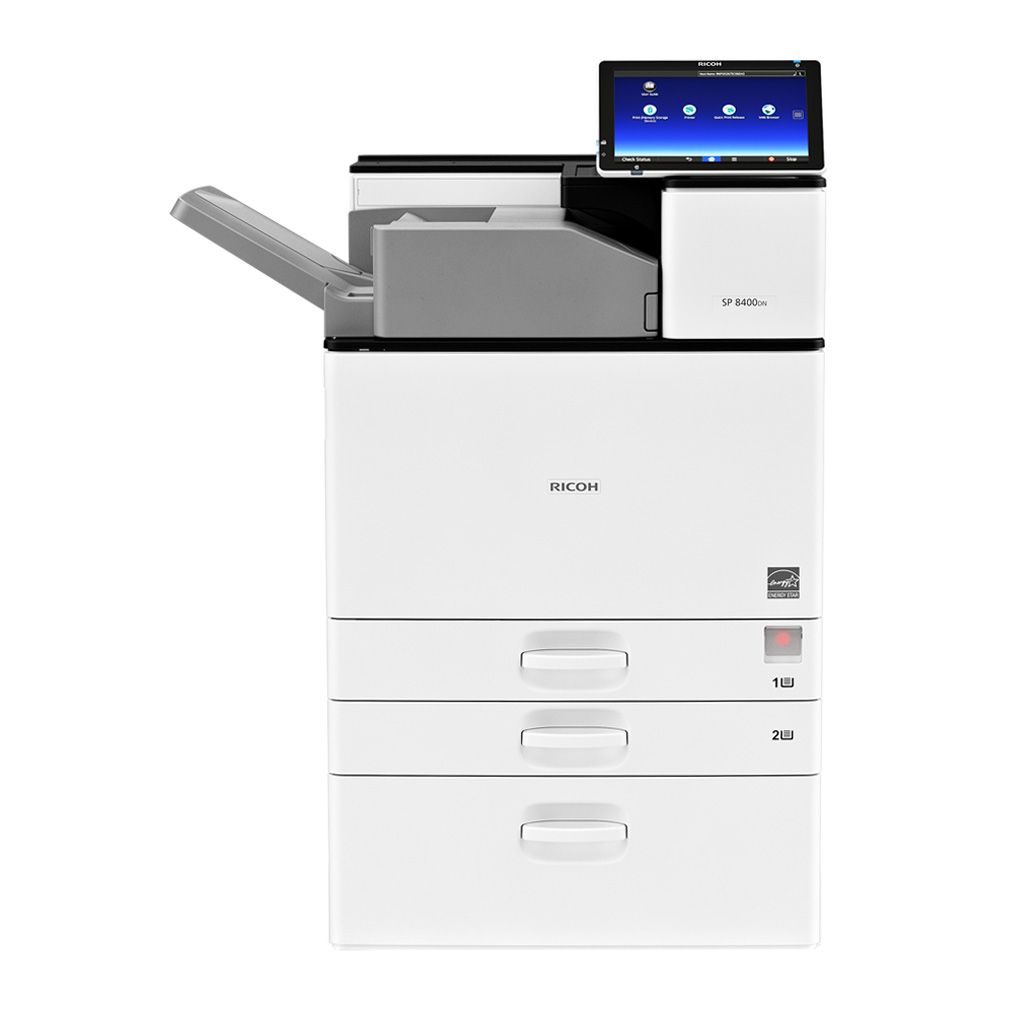

SP 8400DN A3 black and white printer

  • Prints up to 60 ppm
  • 2.2-second first print time
  • 1,200 x 1,200 dpi
  • 4,700-sheet max input

Versatile printer that can produce postcards and posters in house, saving time and money

When time is critical, you need a printer that can print it all, and fast. The SP 8400DN has the speed and capability to produce documents quickly on all types of media, expanding your capabilities.

Low environmental impact, added flexibility

Save money and produce invoices, mailers, reports, booklets and more in-house, finished and ready to go. Access documents from the easy to use Smart Operation Panel that offers functionality to improve business workflows. Never slow down with an overall printing speed of 60 prints per minute, in a low maintenance machine. High capacity paper trays and double sided printing come standard to keep up with demand.

  1. Simple to use
    Intuitive touchscreen Smart Operation Panel for easy operation.
  2. Environmentally minded
    Lower power consumption with Energy Saver mode, and a quick recovery time.
  3. Advanced security features
    Data encryption, user authentication and optional Hard Disk Overwrite protection keeps information secure.
  4. Versatile media options
    Supports paper sizes up to A3 and stocks up to 300 g/m2.
Download PDF brochure

Specifications

功能
Print
彩色
No
存儲
320 GB—optional
記憶體 - 標配
4 GB—2 GB mainframe + 2 GB Smart Operation Panel
操作面板
10.1-inch Smart Operation Panel
體積(WxDxH)- 設備主體
587 x 653 x 720 mm
重量 - 設備主體
57 kg or less
標準輸入容量(頁)
1,200
最大輸入容量(頁)
4,700
標準輸出容量(頁)
500
最大輸出容量(頁)
4,000
紙張輸入配置 - 標準
550-sheet x 2 paper input trays, 100-sheet bypass tray, duplex unit
紙張輸出配置 - 標準
500-sheet face-down output tray
支援材質媒介
Standard trays, optional paper banks
Plain paper 1, plain paper 2, recycle paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, envelope, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4

Bypass tray
Plain paper 1, plain paper 2, recycle paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, envelope, label paper, middle thick, thick paper 1, thick paper 2, thick paper 3, thick paper 4, thin paper
最大紙張尺寸
A3
紙張重量(g/m2)
52–300
連接介面 - 標準
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Host interface Type A x 2
連接介面 - 選配
USB 2.0 Type B
IEEE 1284 Type A
IEEE 802.11a/b/g/n
USB device server (additional network interface port)
網絡協議 - 標準
TCP/IP (IPv4, IPv6)
黑白列印速度
60 ppm
首張輸出速度
2.2 seconds or less
列印解析度
1,200 x 1,200 dpi
頁面描述語言(PDL)
Standard—PCL 5e, PCL 6 (XL), PostScript 3 emulation, PDF Direct emulation, Media Print (JPEG/TIFF), PJL
Optional—IPDS, XPS, Genuine Adobe PostScript 3, PDF Direct from Adobe
印表機驅動程式
Standard
PCL 5e, PCL 6 (XL), PostScript 3 emulation, XPS

Note: XPS driver can be downloaded from Ricoh website.
雙面列印
Standard
行動式列印
Yes
資料覆寫安全單元 (DOSS )- 標配
Yes
加密
Encryption—HDD, address book, authentication password
認證方式
User authentication—Windows and LDAP via Kerberos, basic, user code
802.1x wired authentication
WiFi Protected Setup (WPS)
Wireless LAN security—IEEE 802.11i, IEEE 802.11w, WEP, WPA
Quota setting
Windows
Windows Vista
Windows 7
Windows 8.1
Windows 10
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Macintosh
OS X Native v10.9 or later—PostScript 3 emulation only
Unix
Sun Solaris—9, 10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—v5.0.7, v6.0
IBM AIX—v5.3, v6.1, v7.1
SAP
Environment—R/3, S/4
SAP R/3 Device Type—supported
Barcode fonts—Code 128, Code 39, Code 93, Codabar, MSI, USPS, POSTNET, UPC/EAN
OCR fonts—OCR A, OCR B
標配
Web Image Monitor
選配
Device Manager NX
Printer Driver Packager NX
Streamline NX
Card Authentication Package
Enhanced Locked Print
行動APPs
Smart Device Connector
Smart Device Print&Scan
電源
220‑240 V, 50‑60 Hz
耗電量
1,780 W or less—maximum power
825.1 W—operating power
43.4 W—Ready Mode
0.89 W—Energy Saver Mode (Sleep Mode)
一般用電量 (TEC)
2.7 kWh
暖機時間
21 seconds or less
節能模式
1 minute default—Auto switch—Energy Saver Mode (Sleep Mode)
恢復時間
7 seconds—Energy Saver Mode (Sleep Mode)
環境標準
Restriction of Hazardous Substances (RoHS)
WEEE
EPEAT (Gold)
環保標章
BAM, Thai Green Label—target
