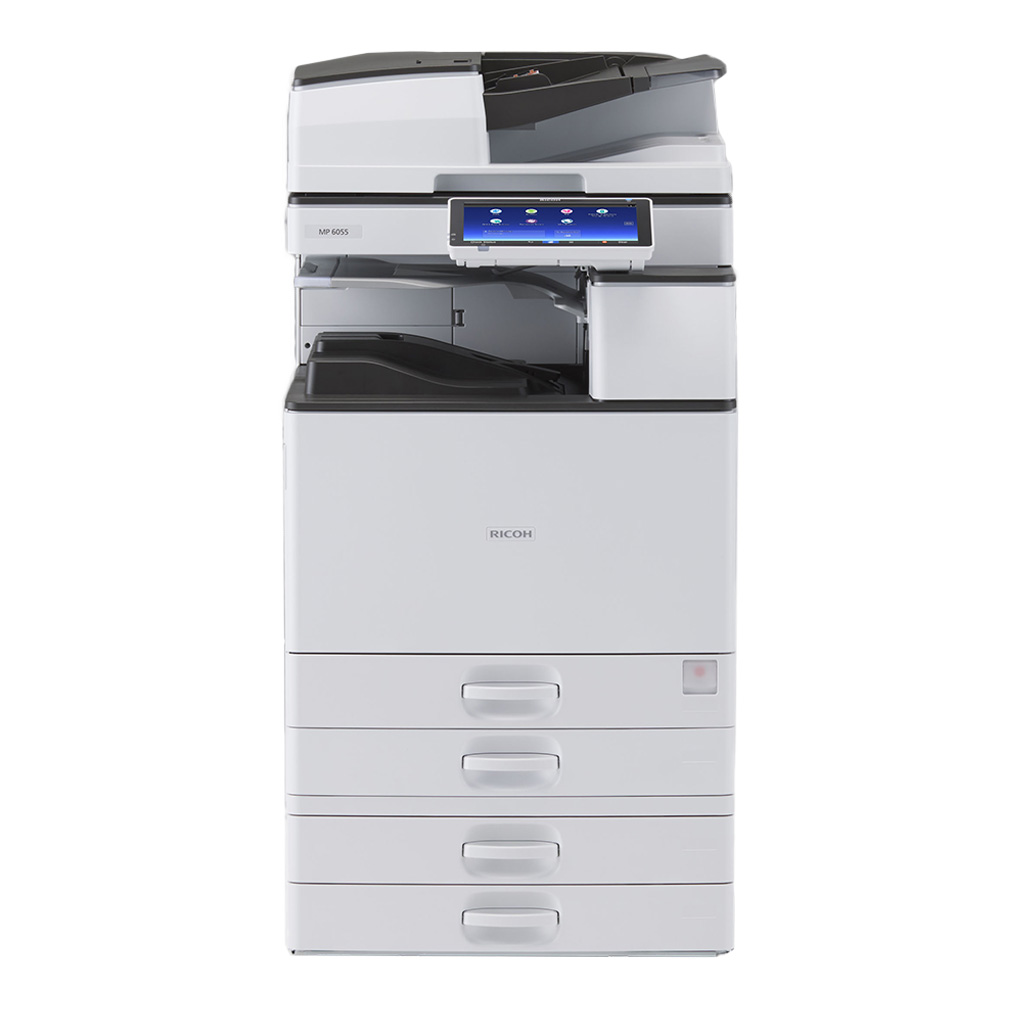

MP 6055SP A3 black and white MFP

  • Copy, print, scan, and optional fax
  • Prints up to 60 ppm
  • 1,200 x 1,200 dpi
  • 2.8 kWh TEC

All-in-one printing meets app functionality. The MP 6055SP combines fast printing in house with the ability to boost office productivity.

  1. Simplify your work
    Create shortcuts to your favourite settings with the Smart Operation Panel.
  2. Keep data safe
    Information is kept secure with data encryption, the DataOverwriteSecurity System and User Authentication.
  3. Powerful technology
    Intel processor, 2GB memory and 320GB hard drive easily handles big files.
  4. High quality
    Documents are set to impress with 1200 x 1200 dpi resolution.

Extend your all-in-one options

Turn paper files into digital deliveries via email or network folder. Set yourdocuments on the single pass duplex document feeder for fast scanning at220 images per minute. Download single function apps from Ricoh toautomate everyday tasks with a single touch. The Smart Operation Panelhelps with its intuitive touch interface to save time when setting jobs. Access3,000 frequently used files with the built-in document server. Highresolution print jobs can be folded or collated and stapled in one pass,producing professionally finished documents.

Apps to make it easier

Share information and print from your smartphone or tabletwith the Ricoh Smart Device Connector app. It can access documents fromcloud applications like Google Drive, Dropbox and OneDrive. TheConnector App also allows smartphone or tablet, printing device, projectorand white boards all to communicate with one another. It’s available forboth Android and iOS.


Download PDF brochure


Specifications

功能
Copy, print, scan, optional fax
彩色
No
存儲
320 GB
記憶體 - 標配
2 GB
操作面板
10.1-inch tilting colour WSVGA Smart Operation Panel
體積(WxDxH)- 設備主體
587 x 684 x 963 mm
重量 - 設備主體
76.5 kg or less
標準輸入容量(頁)
1,200
最大輸入容量(頁)
4,700
標準輸出容量(頁)
500
最大輸出容量(頁)
3,625
紙張輸入配置 - 標準
2 x 550-sheet paper trays, 100-sheet bypass tray, 220-sheet SPDF DF3100, duplex unit
紙張輸出配置 - 標準
500-sheet face-down internal output tray
支援材質媒介

Standard paper input trays
Plain paper, recycled paper, colour paper, special paper, letterhead, pre-printed paper, pre-punched paper, bond paper, cardstock, plain paper backside, envelopes, thin paper, plain paper 1, plain paper 2, middle thick paper, thick paper 1–4

Optional paper banks
Plain paper, recycled paper, colour paper, special paper, letterhead, pre-printed paper, pre-punched paper, bond paper, cardstock, plain paper backside, thin paper, plain paper 1, plain paper 2, middle thick paper, thick paper 1–4

Bypass tray
Plain paper, recycled paper, colour paper, special paper, letterhead, pre-printed paper, pre-punched paper, bond paper, cardstock, plain paper backside, envelopes, OHP transparencies, label paper, thin paper, plain paper 1, plain paper 2, middle thick paper, thick paper 1–4
最大紙張尺寸
A3
紙張重量(g/m2)
52–300
連接介面 - 標準
Mainframe
10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
USB 2.0 Host Type A—2 ports
NFC tag

Smart Operation Panel
IEEE 802.11b/g/n (Wireless LAN)
Bluetooth 4.0
SD card slot
USB Host Type A—USB Flash memory
USB Host Type A—External keyboard
USB Host Type mini B—NFC card reader
連接介面 - 選配
IEEE 1284/ECP
IEEE 802.11a/g/n (Wireless LAN)
USB 2.0 Type B
網絡協議 - 標準
TCP/IP (IPv4, IPv6)
影印速度
60 cpm
首張輸出時間
2.9 seconds
影印解析度
600 x 600 dpi
變焦範圍
25%–400% in 1% steps
放大比例
115%, 122%, 141%, 200%, 400%
縮小比例
93%, 82%, 75%, 71%, 65%, 50%, 25%
雙面影印
Single-sided to duplex, duplex to duplex—with document feeder, book to duplex, front and back to duplex
書本影印
Booklet, magazine, layout, and booklet
證件影印
Supported
使用者代碼
1,000 user codes, 8 digits in each code
黑白列印速度
60 ppm
列印解析度
1,200 x 1,200 dpi—1-bit
頁面描述語言(PDL)

Standard
PCL 5e, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Adobe PostScript 3, PDF Direct from Adobe

印表機驅動程式

Standard
PCL 5e, PCL 6, PostScript 3 emulation

Optional
Adobe PostScript 3

雙面列印
Standard
行動式列印
Yes
從USB / SD列印
Supported
掃描速度
A4 LEF, 200 x 200 dpi, 300 x 300 dpi
SPDF

110 ipm—single-sided
180 ipm—duplex
掃描方式
Scan to USB/SD, Scan to email, Scan to webmail,
Scan to folder (SMB, FTP), Scan to PDF/A, Scan to URL, Scan to searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.
彩色掃描
Standard
掃描解析度
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi,
600 x 600 dpi; default 200 x 200 dpi
掃描到文件類型

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high compression PDF

掃描到電子郵件

Protocols
SMTP gateway, POP, IMAP4

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

掃描到文件夾

Protocols
SMB, FTP

Security
Client folder logon, transmission encryption of logon name and password

Resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi; default 200 x 200 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Scan to folders file types
Single-page
TIFF, JPEG, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF, PDF/A, high compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

TWAIN掃描

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
100 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi

Note: Selectable maximum resolution depends on the original size.

傳真類型
G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
傳真電路
PSTN, PBX
傳真兼容性
ITU-T (CCITT), G3—maximum 3 lines
傳真數據機速度
2,400 bps–33.6 Kbps—G3, standard with automatic shift down
傳真壓縮方式
MH, MR, MMR, JBIG
傳真解析度

Standard mode
100 x 200 dpi—8 x 3.85 lines/mm

Detail mode
200 x 200 dpi—8 x 7.7 lines/mm

Super fine mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mm

Note: Super fine mode is supported with the optional SAF memory.

G3傳真傳輸速度
100 x 200 dpi
2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
傳真SAF儲存容量

Standard
4 MB—approximately 320 pages

With optional SAF memory
60 MB—approximately 4,800 pages

傳真儲存備份
1 hour—with optional SAF memory
快速撥號
2,000 numbers
資料覆寫安全單元 (DOSS )- 標配
Yes
加密
HDD, PDF, Secure print encryption
Address book, authentication password encryption
Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
認證方式
DHCP option 60 and 77
802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2, WEP)
IPv6
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
WiFi Protected Setup (WPS) support
Network user authentication
Windows
Windows Vista
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows 8
Windows 8.1
Windows Server 2012
Windows Server 2012 R2
Windows 10
Macintosh
OS X Native v10.9 or later—PostScript 3 only
Unix
Sun Solaris—9, 10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, 4, 5, 6
SCO OpenServer—5.0.7, 6.0
IBM AIX—5L Version 5.3, 6.1, 7.1
SAP
Environment—R/3 3.0 and higher
Platform—SAP R/3, SAP R/3 Enterprise, mySAP ERP, SAP HANA
PDL—PCL
Character set—Latin-1, Latin-2, Unicode
Document types—SAPScript, Smartforms, ABAP
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN
OCR fonts—OCR A, OCR B
IBM
AS/400, iSeries—OS/400
標配
@Remote Embedded
Java SDK
Web Image Monitor
選配
@Remote Office
Card Authentication Package
Card Authentication Package Server
Device Manager NX
FlexRelease CX
Enhanced Locked Print NX
Enhanced Locked Print NX FlexRelease Server
GlobalScan NX
Printer Driver Packager NX
Streamline NX
Printer as a Service (PaaS)
行動APPs
Smart Device Connector
Smart Device Print&Scan
電源
220-240 V, 50-60 Hz, 8 Amps—Asia Pacific
110 V, 60 Hz, 13.6 Amps—Taiwan
耗電量
1,780 W or less—maximum
821.7 W—operating power
48.8 W—Ready Mode
0.82 W—Energy Saver Mode (Sleep Mode)
一般用電量 (TEC)
2.8 kWh
暖機時間
20 seconds
節能模式
60 seconds shift time—Energy Saver Mode (Sleep Mode)
恢復時間
8.8 seconds—Energy Saver Mode (Sleep Mode)
其他環境功能
Eco-friendly indicator, On/off timer, Remote Power Off, Default duplex printing, Eco counter
