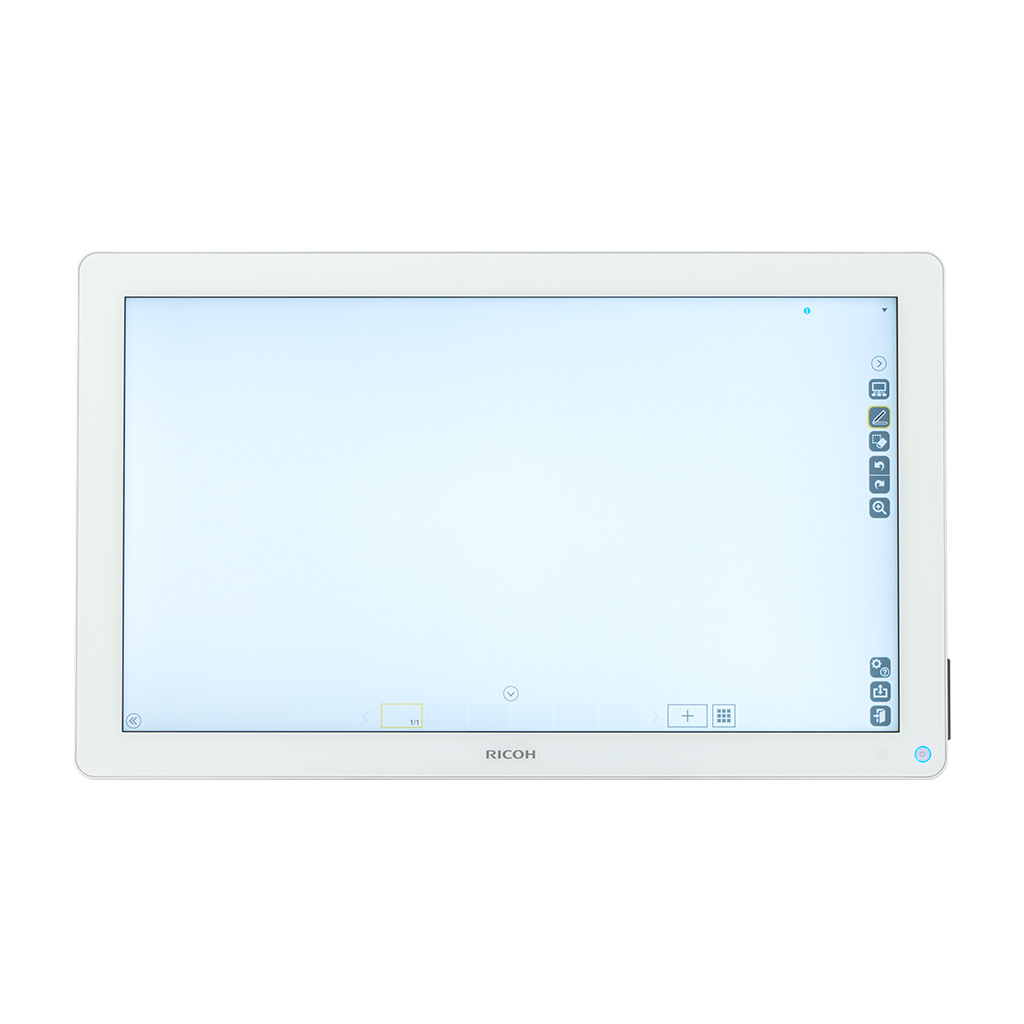

IWB D3210 Interactive whiteboard

  • 32-inch touchscreen
  • Projected Capacitive Touch (PCAP) technology
  • Optional controllers
  • Optional remote connection

Real-time, remote collaboration

Ideal for smaller meeting spaces, Ricoh’s compact, 32” Interactive Whiteboard D3210 supports 180° screen rotation and can be laid flat and used as an interactive table top. Share files instantly and allow teams to annotate in real-time for all to see, and it also provides accurate character recognition function. With its stylish design, vivid display and intuitive controls stimulating engagement, your conference calls, team meetings and one-to-ones can be much more productive and collaborative.

Impress your clients with easily understood visuals and real-time on-screen annotations

With superior visuals and an impressive suite of touch screen functionality, Ricoh Interactive Whiteboard D3210 allows for efficient content sharing in all your customer-facing discussions. It’s the ideal solution for huddle space meetings for estate agencies, banks, car dealerships, architects, developers and designers to name a few.

  1. Collaborate in real time
    Connect multiple devices across locations for interactive collaboration with your global teams and have them edit and mark documents directly on the whiteboard in your virtual meeting.
  2. Make real-time notes in your own handwriting
    Write, scribble or draw with the touch pen, using the whiteboard’s OCR recognition tool, an innovative handwriting recognition software.
  3. Go easy on the eyes
    Low blue light mode and anti-glare screen reduces eye strain and provides a more comfortable viewing experience.
  4. Share results in a single click
    Whiteboard visuals can be printed or sent as PDFs direct to email inboxes, to your USB device or directly to your office folders, on the cloud or network.

Download PDF Brochure


Specifications

操作面板
Main power switch x 1
Up button x 1
Down button x 1
Left  button x 1
Right button x 1
Menu button x 1
Enter (Input) button x 1
其他套件

Touch pen x 1
Pen tray
Mounting parts for flat orientation
Plastic clamp
Remote controller
AAA size remote controller battery
2 m power cord
3 m VGA cable
1.8 m USB 3.0 cable
5 m HDMI cable
OPS slot
User manual (Read This First guide)
Quick guide

體積(WxDxH)- 設備主體
789 x 70 x 480 mm
重量 - 設備主體
15 kg or less
面板類型
LCD multi touch-screen display
面板尺寸
32 inches
背光模組
LED
投影尺寸(寬X高)
719.2 x 413.7 mm
解析度
1,920 x 1,080 pixels
色彩還原
16.77 million colours maximum
色溫
9,300 K—cool
8,500 K—warm
6,500 K—neutral
5,000 K—low blue light
亮度
500 cd/m2
螢幕比例
16:9
對比度
3000:1
顯示設置

Picture Mode—including Low Blue Light Mode, Backlight, Contrast, Brightness, Saturation, Sharpness, Colour Temperature, Treble, Bass, Balance, Volume, Mute Speaker, Audio Source PAP Setting, Aspect, Adjust Screen, Touch Feature, Language, Power Save Control Setting, Touch Control Setting, Set Monitor ID, OSD Rotation, Advanced Information, Reset

像素間距
0.364 x 0.364 mm
響應速度
10 ms or less
視角 (H/V)
Left and right 178 degrees, up and down 178 degrees
音訊

Input
1 x Line 3.5 mm

Output
1 x speaker out (12 W + 12 W)

影片

Video input
1 x VGA
1 x HDMI (HDCP 1.4-compliant)
1 x DisplayPort

Video output
1 x DisplayPort

觸控技術
Projected Capacitive Touch (PCAP)
觸控點
10 points maximum—four points with finger
觸控解析度
4,096 x 4,096
觸控輸出
USB 3.0 Type B—not available when controller is installed
觸控面板覆蓋玻璃
2 mm anti-glare
連接介面 - 標準

Control
1 x serial RS-232C input
1 x serial RS-232C output
1 x USB 3.0 Type B—for touch control

USB Hub
4 x USB 3.0 Type A

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

連接介面 - 選配
With Ricoh IWB controllers
10Base-T/100Base-Tx/1000Base-T (Wired LAN)
IEEE 802.11a/b/g/n (Wireless LAN)
Bluetooth

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.
Windows

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows Embedded 7—Standard
Windows 8—Windows 8, Pro, Enterprise
Windows Embedded 8—Standard
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows 10—Home, Pro, Enterprise, IoT

Single-touch sensor
Windows 7—Home Basic

RICOH Interactive Whiteboard controller Type 2 (optional)
Windows 10 IoT Enterprise 64-bit

Macintosh
Mac OS X 10.8–10.13—single-touch sensor
支援語言
On-screen display languages
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Chinese
電源
100–240 V, 50–60 Hz
耗電量
215 W or less—operating
295 W or less—full configuration
0.3 W or less—in Standby Mode
減少環境有害材料
Restriction of Hazardous Substances (RoHS)
環境標準
REACH
ErP Lot 6
EU battery (2006/66/EC)
EU packaging (94/62/EC)
WEEE
Directive 2006/66/EC
Directive 2005/20/EC
安全標準
EN62368-1 (CE marking)
EN62368-1, AfPS GS 2014, EKI-ITB 2000 (TUV/GS)
IE62368-1 (CB attestation)
電磁兼容性(EMC)標準

EN55032, EN55024,EN61000-3-2, EN61000-3-3
EN62311(CE)
AS/NZS CISPR32 (C-Tick)

無線LAN標準
EN300328 (CE Marking)
EN301489-1, EN301489-17 (CE Marking)
ACMA—Australia
iDA—Singapore
操作環境

Temperature
0–32ºC—operating

Humidity
10–80%—operating
