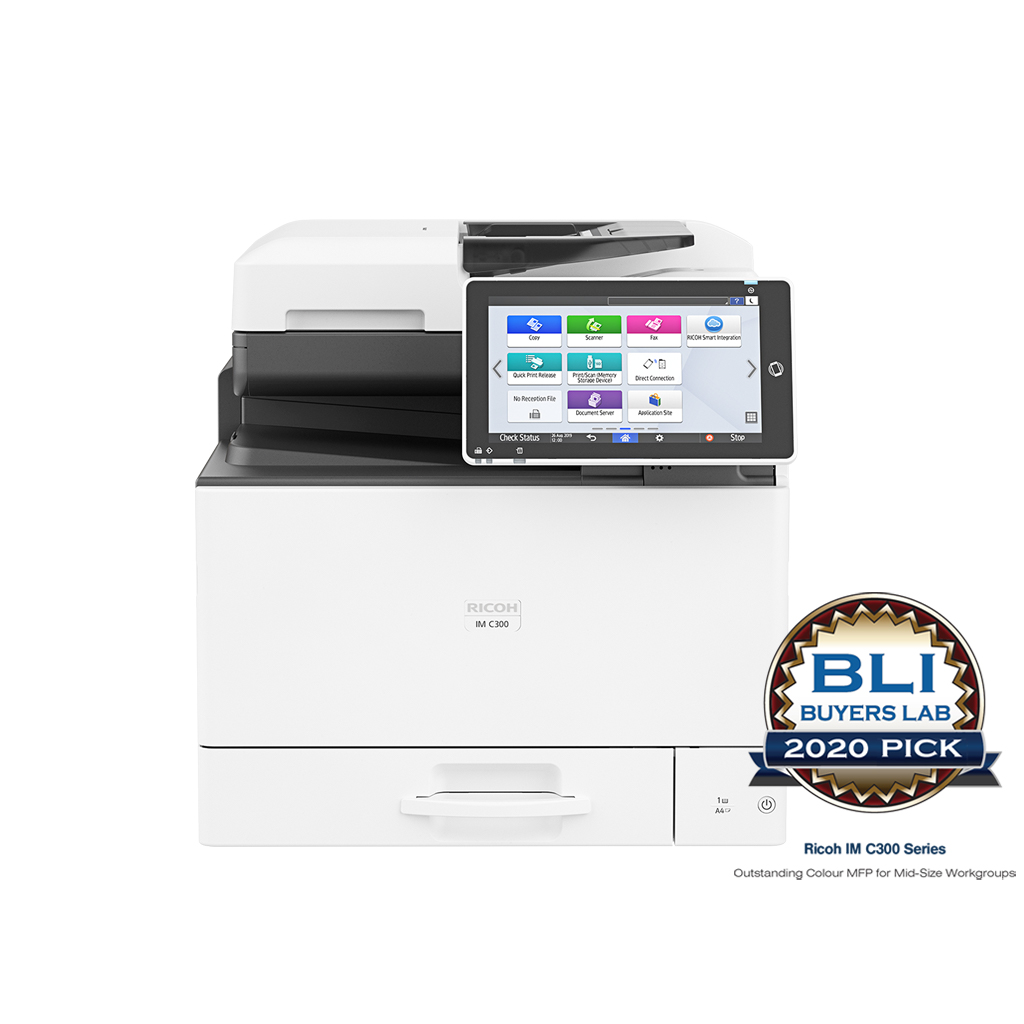

IM C300F A4 colour MFP

  • Copy, print, scan, fax
  • Prints up to 30 ppm
  • Continuous updates via RICOH Always Current Technology
  • RICOH Smart Integration workflows
配置您的設備
Related Links
Colour High flyer
Keep up with your dynamic digital workplace

Ricoh Intelligent Devices

Provides smooth access to functionality upgrades and productivity enhancements when they are released. Not only does your device's software gets automatic updates to the latest features, it also includes additional functionality or smart solution that businesses may require in the future.

  1. Future-proof technology
    Assist organisations throughout the world to transform into digital workplaces by managing and converting information into intelligence with today's technology.
  2. Delivering performance
    With print speeds up to 30 pages per minute, printouts are powered at a faster speed, while ensuring crisp and sharp printouts at an impressive printing resolution.
  3. Intuitive experience
    Equipped with industry-leading 10.1-inch Smart Operation Panel which not only delights you with an intuitive operating experience but also makes your work life easier.

Download PDF brochure

Specifications

功用

Copy, print, scan, fax

色彩
Yes
存儲
320 GB
記憶體 - 標準
2 GB
操作板面
10.1-inch Smart Operation Panel (G2.5)
實體尺寸（長闊高）—大型機
498 x 561 x 510 mm
重量—大型機
47 kg or less
標準輸入量（張）
350
最大輸入量（張）
2,000
標準輸出量（張）
100
最大輸出量（張）
200
紙張輸入配置 - 標準
250-sheet paper input tray, 100-sheet bypass tray, 50-sheet SPDF, duplex unit
紙張輸出配置 - 標準
100-sheet face-down paper output tray
支援媒體

Standard tray
Plain Paper, Middle Thick Paper, Thick Paper 1–2, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, Cardstock, Back copied paper, Waterproof paper, Coated paper

Bypass tray
Plain Paper, Middle Thick Paper, Thick Paper 1–3, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, Cardstock, OHP, Label Paper, Back-copied paper, Waterproof paper, Envelope, Coated paper

Optional paper feed unit
Plain Paper, Middle Thick Paper, Thick Paper 1–2, Recycled Paper, Coloured Paper, Special Paper 1–3, Letterhead, Pre-printed Paper, Bond Paper, Cardstock, Back copied paper, Waterproof paper, Coated paper

最大紙張尺寸
A4
媒體量
60–220
介面 - 標準
Mainframe
10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
USB Host Type A—2 ports
USB Device Type B—1 port

Smart Operation Panel
IEEE 802.11 b/g/n (Wireless LAN)1
Bluetooth2
SD Card Slot—SDHC memory card
USB Host Type A—USB Flash memory
USB Host Type A—1 port for USB keyboard (optional)2
USB Host Type mini B—for NFC card reader (optional)2
microSD card slot—ROM storage expansion2
NFC Tag 2

1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
2—Does not support print functions
介面 - 可選

IEEE 1284/ECP
IEEE 802.11a/b/g/n (Wireless LAN)1
USB Device Server Option Type M37 (additional network interface port)

1—Cannot be used with Bluetooth at the same time

網路協議 - 標準
TCP/IP (IPv4, IPv6)
影印速度
30 cpm—black and white and colour
首次影印時間
7.2 seconds or less—black and white
8.6 seconds or less—colour
影印解像度
Platen
600 x 600 dpi

SPDF
600 x 300 dpi, 300 x 600 dpi, 600 x 600 dpi
縮放範圍
25%–400% in 1% steps
放大比例
141%, 200%
縮放比例
93%, 71%, 50%
雙面影印
Simplex to simplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
書本影印
Booklet, magazine, layout and booklet
身份證影印
Supported
使用者編碼
1,000 user codes
色彩列印速度
30 ppm
黑白列印速度
30 ppm
首次列印時間
7.2 seconds—black and white, 8.6 seconds—colour
列印解像度
1,200 x 1,200 dpi
頁面描述語言
Standard
PCL 5c, PCL 6, PostScript3 emulation, PDF Direct emulation

Optional
Adobe PostScript 3, PDF Direct from Adobe, XPS
印表機驅動程式

Standard
PCL 5c, PCL 6, PostScript3 emulation

Optional
Adobe PostScript 3

雙面列印
Standard
行動列印
Yes
從USB/SD列印
Supported
掃瞄速度

40 ipm—single-sided, 200 x 200 dpi, 300 x 300 dpi
80 ipm—duplex, 200 x 200 dpi, 300 x 300 dpi

掃瞄模式
Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)

Note: Scan to searchable PDF requires the optional OCR unit.
色彩掃瞄
Standard
掃瞄解像度
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi
掃瞄至檔案類型
Single- and multi-page TIFF
Single-page JPEG (greyscale or full colour)
Single- and multi-page PDF, PDF/A
Single- and multi-page high compression PDF
掃瞄至電子郵件

Protocols
SMTP gateway, POP3, TCP/IP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, secure PDF, digitally signed PDF, searchable PDF

Multi-page
TIFF, PDF (default), PDF/A, high-compression PDF, secure PDF, digitally signed PDF, searchable PDF
Note: Searchable PDF requires the optional OCR unit.

掃瞄至資料夾

Protocols
SMB, FTP

Security
Client folder logon, transmission encryption of logon name and password

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by client folder name

Scan to folder file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, digitally signed PDF, searchable PDF

Multi-page
TIFF, PDF, PDF/A, high-compression PDF, secure PDF, digitally signed PDF, searchable PDF
Note: Searchable PDF requires the optional OCR unit.

TWAIN掃瞄
Scan speed
30 ipm—simplex
38 ipm—duplex

Scan mode
Standard, Photo, OCR, Filing

Scan resolution
SPDF—100 x 100 dpi– 600 x 600 dpi
Platen glass—100 x 100 dpi—1,200 x 1,200 dpi
Note: Some limitations in resolution depending on scanning area.
傳真類型
G3 fax (1 line), Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
傳真機電路
PSTN, PBX
傳真兼容性
ITU-T (CCITT), G3
傳真數據機速度
2,400 bps–33.6 Kbps—G3, standard with Automatic Shift Down
傳真壓縮方法
MH, MR, MMR, JBIG
傳真解像度
200 x 100 dpi—8 x 3.85 lines/mm
200 x 200 dpi—8 x 7.7 lines/mm
G3傳真傳送速度
2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
傳真記憶體備份
1 hour
快速撥號
2,000 numbers
數據覆寫保安系統（DOSS）- 標準
Yes
數據覆寫保安系統（DOSS）- 可選
Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
加密功能
HDD encryption
Encrypted Secure Print
Encrypted PDF Mode
Authentication password encryption
認證
802.1x wired authentication
WiFi Protected Setup (WPS)
IEEE 802.11i security (WEP, WPA2)
IPv6
Quota setting/account limit
User authentication—Windows and LDAP via Kerberos, basic, user code
Network user authentication
Windows
PCL 5c, PCL 6, and PostScript 3
Windows 7
Windows 8.1
Windows 10
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Macintosh
OS X Native v10.11 or later—PostScript 3 only
UNIX
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, 4.x, 5.x, 6.x
SCO OpenServer—5.0.7, 6.0
IBM AIX—5L Version 6.1, 7.1, 7.2
SAP
Environment—R/3, S/4
SAP R/3 Device Type—supported
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS, UPC/EAN
OCR fonts—OCR A, OCR B
標準
@Remote Embedded
Web Image Monitor
可選
@Remote Office
@Remote Enterprise Pro
Card Authentication Package
Device Manager NX Lite
Device Manager NX Accounting
Enhanced Locked Print NX
GlobalScan NX
Printer Driver Packager NX
RICOH Streamline NX
手機應用程式
Smart Device Connector
電源
220–240 V, 50/60 Hz—Asia Pacific
110 V, 60 Hz—Taiwan
耗電量
1,200 W or less—maximum
600 W—operating (guaranteed)
427 W—operating (nominal, black and white)
502 W—operating (nominal, colour)
50.6 W—Ready Mode (nominal)
0.66 W—Energy Saver Mode (nominal)
典型用電量
0.34 kWh
預熱時間
19 seconds—Quick Mode from main switch
48 seconds—without Quick Mode
節能模式
60 seconds or less shift time—Energy Saver Mode (Sleep Mode)
恢復時間
7.7 seconds
環保標籤
Energy Efficiency Labelling Scheme (Hong Kong), Thai Green Label
其他環保功能

Eco-friendly indicator screen, System reset timer
