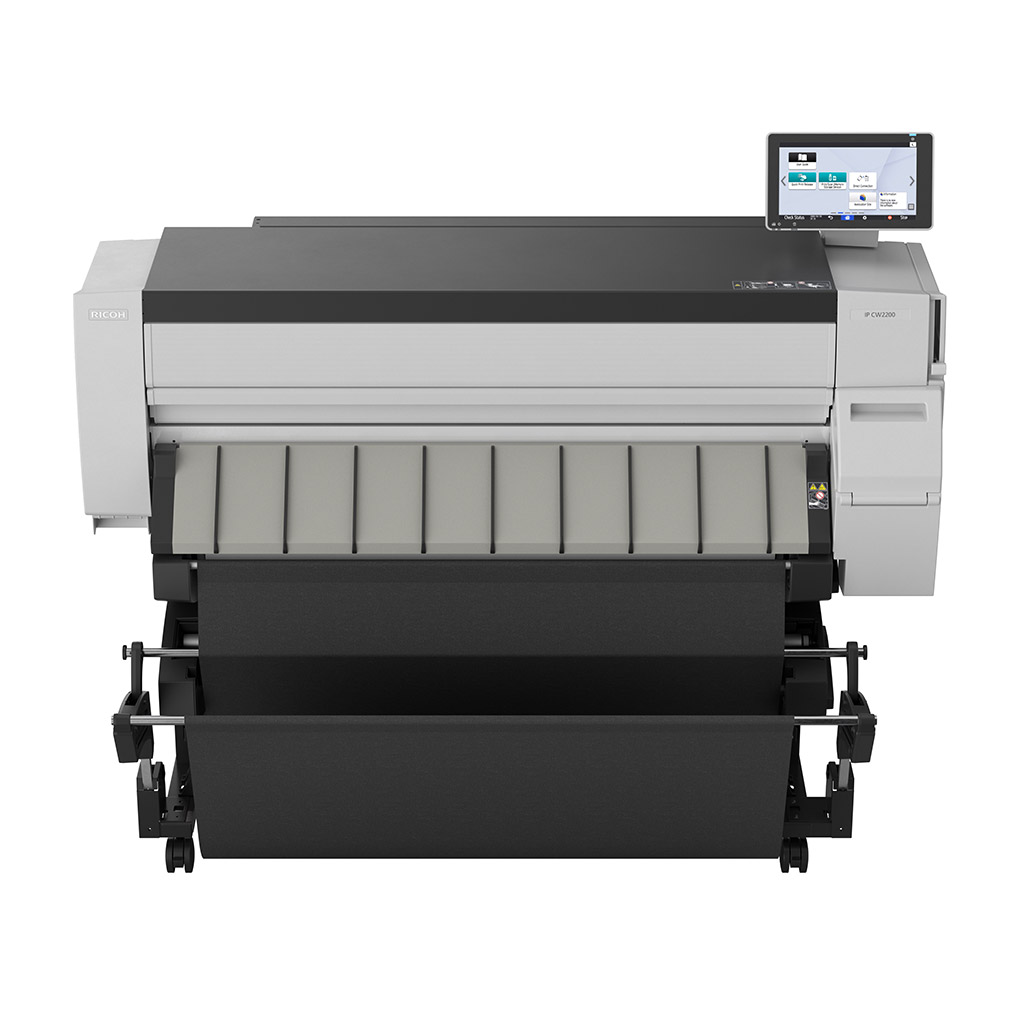

Ricoh Image
最新

IP CW2200 Colour wide format printer

  • 3.8 ppm—A1 black and white
  • 10.1" Smart Operation Panel
  • Water-resistant ink
  • 33 m max print length
加入比較
Designed for efficiency

Print high quality colour CAD drawings and other large documents (A1/A0) faster, easier, and more securely.

Innovative print technology

Print impressive CAD drawings, from precise line drafts to boldly coloured 3D renders, with the highest accuracy and finest details with Ricoh's waterproof GEL-Jet™ technology.

Security first

The IP CW2200 comes with a range of built-in security measures, which include administrator and user authentication, to restrict access and protect files.

Effortless productivity

Automatic paper roll setting as well as a  10-sheet original stacker and max 33-metre print length make document production a breeze.


  1. Fast and convenient
    Automatic paper roll setting, fast 3.8 ppm A1 print speed, and max 33-metre print length allow work to completed easier and faster than before .
  2. Seamless integration in mixed fleet environments
    Latest generation Smart Operation Panel offers fast and simple navigation that is consistent with Ricoh's state-of-the-art A3 office devices.
  3. Professional and durable prints
    Consistently produce high quality and durable prints that are smudge-free and UV-resistant with Ricoh’s unique waterproof GEL-Jet™ ink.
  4. Fit in anywhere
    The small footprint and contemporary aesthetics make the IP CW2200 ideal for modern environments where space is an issue.

Download PDF brochure

Specifications

功能
Print
彩色
Yes
色彩控制器 - 標配
GWNX
存儲
320 GB
CPU處理器
Intel Atom Processor Apollo Lake-I 1.6 GHz
記憶體 - 標配
4 GB
操作面板
10.1" Smart Operation Panel (G2.5)
體積（WxDxH）- 設備主體
1,384 x 660 x 1,117 mm
體積（WxDxH）- 其他
1,108 x 432 x 398 mm—Roll Unit RU6570
重量 - 設備主體
100 kg
重量 - 其他
14.5 kg—Roll Unit RU6570
月平均印量
120 m
平均印量說明
Reliability targets are measured using A1 LEF paper width (841 mm) with 6% black and white/20% colour (5% x 4 colours) coverage, 40% colour ratio, and one page per job.
月最大印量
1,200 m
耗材張數
Black and white printing
529 copies or 314 m per 200 ml black cartridge
708 copies or 421 m per 100 ml cyan cartridge
699 copies or 415 m per 100 ml magenta cartridge
700 copies or 416 m per 100 ml yellow cartridge

Colour printing
352 copies or 209 m per 200 ml black cartridge
472 copies or 280 m per 100 ml cyan cartridge
466 copies or 277 m per 100 ml magenta and yellow cartridge

Note: All toner yields are measured using A1 LEF paper with 6% black and white/20% colour (5% x 4 colours) coverage, and a 40% colour ratio, 60% black and white ratio.

Waste tank capacity
425 ml or 5 years, whichever comes first
120 m
40% colour ratio

Waste tank use conditions
23 degrees Celcius and 50% humidity
標準輸入容量（頁）

Roll feed
One roll each—297–914 mm wide x unlimited length, or max diameter 176 mm

Bypass
1 sheet—914.4 x 2,000 mm

標準輸出容量（頁）

1 sheet—basket

Note: Basket output can't be stacked because the curvature factor is small.

紙張輸入配置 - 標準
1-sheet bypass tray, 1-roll feeder
紙張輸入配置 - 選配
1-roll feeder, roll holder
紙張輸出配置 - 標準
1-sheet output basket
支援材質媒介

Plain paper, recycled paper, inkjet plain paper, tracing paper, matte film, coated paper, coated paper—CAD, special paper

最大紙張尺寸
914.4 mm x 33,000 mm
紙張重量（g/m2）
51–220
連接介面 - 標準

Mainframe
1000 Base-T/100 Base-TX/10 Base -T (Ethernet)
USB 2.0

Smart Operation Panel
IEEE 802.11 b/g/n (Wireless LAN)1
Bluetooth 4.22
SD Card Slot—SDHC memory card
USB Host Type A—USB Flash memory
USB Host Type A—1 port for USB keyboard (optional)2
USB Host Type mini B—for NFC card reader (optional)2
NFC Tag2

1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
2—Cannot be used for printing
連接介面 - 選配
IEEE 802.11 a/g/n (Wireless LAN)
網絡協議 - 標準
TCP/IP (IPv4, IPv6)
MIB支持
Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)

Private
Ricoh original MIB
彩色列印速度
2.1 ppm—A1 LEF
黑白列印速度
3.8 ppm—A1 LEF
印刷過程
On demand Piezo inkjet system
墨水種類
Pigment-based ink—all four colours
列印解析度

Speed Priority (Drawing) Mode, Speed Priority Mode
600 x 300 dpi

Standard Mode
600 x 600 dpi

Quality Priority Mode with coated paper, film (matte) and special paper
1,200 x 1,200 dpi

Quality Priority Mode with other paper types
600 x 600 dpi

頁面描述語言（PDL）
Adobe PostScript 3, PDF Direct, RP-GL/GL2, RTIFF, Media Print JPEG, Media Print TIFF
印表機驅動程式
Adobe PostScript 3
字型
136 European fonts—Adobe PostScript 3
從USB / SD列印
Supported—JPEG, TIFF, PDF
其他列印功能
One direction, Unauthorised copy prevention—(Adobe PostScript 3 driver), WSD printer, Colour matching, POP, Colour Universal Design (CUD), Ink Save Mode—save ratio 50%, available with Adobe PostScript 3, Sample print, Encrypted secure print, Hold print, Stored print, Auto job promotion, Bonjour (Rendezvous) support, Barrier-free colour management mode, Scheduled print, Banner page print (Job sheet print), Classification code, Web print tool, Emergency print, Black Over Print, Tray parameter change from Web Image Monitor, Poster print
認證方式
User authentication—Windows (via Kerberos), LDAP, basic, user code
802.1x wired authentication
Windows
Windows 8.1
Windows 10
Windows 11
Windows Server 2012/2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
Citrix support
XenApp 7.15 LTSR
VirtualApps/Desktops 2012 and later
Macintosh
OS X Native 10.14, 10.15, 11, 12—PostScript 3 only
Unix
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—v6.1, v7.1, v7.2
標配
@Remote Embedded
Web Image Monitor
選配
RICOH Streamline NX v3
Enhanced Locked Print NX v2
Enhanced Locked Print NX FlexRelease Server v2
Card Authentication Package v2
Card Authentication Package Enterprise Server v2
Device Manager NX Lite
Device Manager NX Accounting
電源
220–240 V, 50/60 Hz, 1.9 A
耗電量
140 W—maximum power, mainframe
160 W—maximum power, full configuration
75.3 W—operating, black and white
74.7 W—operating, colour
32.8 W—Ready Mode
0.64 W—Energy Saver Mode (Sleep Mode)
暖機時間
40 seconds or less
計時器
System reset
噪音功率層級
Mainframe
21.1 dB—standby, black and white
68.4 dB—printing, black and white
67.5 dB—printing, colour

Full system
67.3 dB—printing, black and white
噪音壓力層級
Mainframe
3.4 dB—standby, black and white
59.7 dB—printing, black and white
56.8 dB—printing, colour

Full system
59.2 dB—printing, black and white
排放層級
0.02 mg/h or less—benzene
0.1 mg/h or less—styrene
總揮發性有機化合物（TVOC）
0.497 mg/h—ready
15.25 mg/h—printing
識別塑料部件
All plastic components that weigh more than 25 g are identified in accordance with DIN 548490 and ISO 11469 standards.
