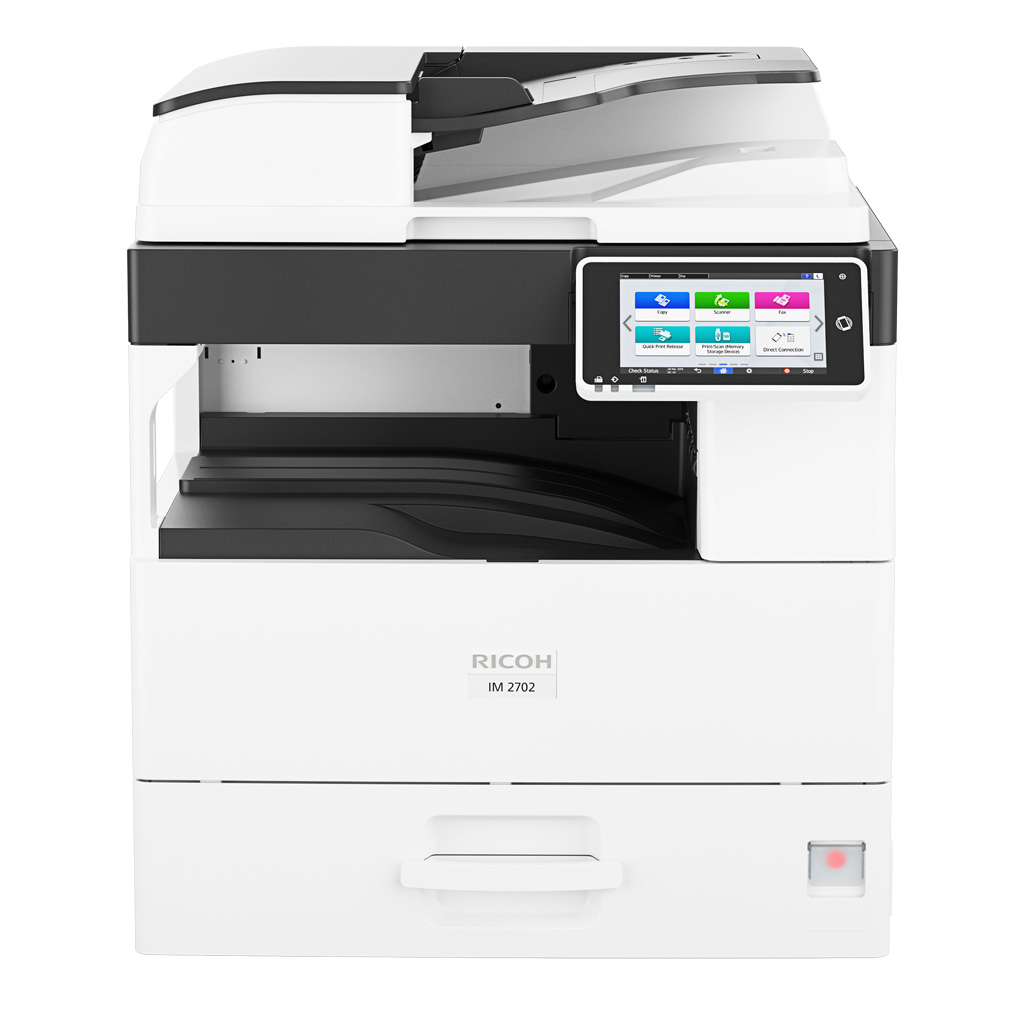

IM 2702 A3 black and white MFP

  • Copy, print, scan, optional fax
  • Prints up to 27 ppm
  • 7" Smart Operation Panel
  • Mobile printing
여기에서 기기 구성
Related Links
Realistically affordable
The new intelligent A3 mono multifunction printer to empower your workplace

The new intelligent A3 mono multifunction printer to empower your workplace

RICOH IM 2702 is a budget friendly device that comes with a host of improved features, making it easier to use and connect to, while at the same time increase productivity. It offers a fast print speed at 27 pages per minute, larger standard paper tray, as well as a new generation 7” Smart Operation Panel.

  1. Easy setup and maintenance
    Preassembled PCDU simplifies the process of setting up the device without requiring the support of a technician
  2. Smart operation
    Print or scan documents easily from mobile devices via the Ricoh Smart Device Connector app
  3. Solutions friendly
    Support for cloud workflow applications which connect the device to external cloud services and third-party apps via the RICOH Smart Integration platform
  4. Security in our DNA
    Document confidentiality can be maintained by suspending print jobs, and only be released when authentication is done at the device

Specifications

기능
Copy, print, scan, optional fax
컬러
No
보관
Not available
메모리 - 표준
4 GB—2 GB mainframe + 2 GB Smart Operation Panel
오퍼레이션 패널
7" colour touch operation panel
물리적 크기 (WxDxH)-기기 본체
587 x 581 x 677 mm—depth including the input tray
무게 - 기기 본체
46.5 kg or less
표준 용지입력 용량(매수)
600
최대 용지입력 용량(매수)
1,600
표준 용지출력 용량(매수)
250
최대 용지출력 용량(매수)
250
용지 입력 구성 - 표준
500-sheet paper input tray, duplex unit, 100-sheet bypass tray, 100-sheet ARDF
용지 출력 구성 - 표준
250-sheet face-down output tray
지원하는 미디어

Standard paper input tray
Thin paper, Plain paper 1, Plain paper 2, Recycled, Colour Paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock

Bypass tray
Thin paper, Plain paper 1, Plain paper 2, Recycled, Colour paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock, Thick paper 1, Thick paper 2, Label paper, OHP, Envelope

Optional paper banks
Plain paper 1, Plain paper 2, Recycled, Colour paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock

최대 용지 크기
A3
미디어 무게(g/m2)
52–216
인터페이스 - 표준

Mainframe
10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
IEEE802.11a/b/g/n (Wireless LAN)
USB2.0-Device (Type-B)
USB2.0-Host

Smart Operation Panel
IEEE 802.11 ac/a/b/g/n (Wireless LAN)
Bluetooth 4.2
SD card slot—SDHC memory card
USB Host Type A—for USB Flash memory
USB Host Type A—1 port for USB keyboard, card reader, or camera
USB Host Type mini B—for NFC card reader
microSD card slot—for service engineer access
NFC tag

네트워크 프로토콜 - 표준
TCP/IP
복사 속도
27 cpm
첫 복사 시간
6.5 seconds or less
복사 해상도
300 x 600 dpi (default), 600 x 600 dpi
확대 범위
25–400%
확대 비율
115%, 122%, 141%, 200%, 400%
축소 비율
93%, 82%, 71%, 50%, 25%
양면 복사
Standard
책 복사
Not supported
ID카드 복사
Supported
흑백 출력 속도
27 ppm
첫 출력 시간
6.5 seconds or less
출력 해상도
600 x 600 dpi
페이지 설명 언어(PDLs)
Standard
PCL 5e, PCL 6, PostScript 3
프린터 드라이버
Standard
PCL 5e, PCL 6, PostScript 3 emulation
양면 출력
Standard
모바일 프린팅
AirPrint, Mopria®
USB/SD에서 인쇄
Supported
스캔 속도
50 ipm
스캔 방법
Scan to email, Scan to folder (SMB), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to USB/SD
컬러 스캐닝
Standard
스캔 해상도
100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi
스캔 to 타입

Single- and multi-page TIFF
Single- and multi-page PDF
Single-page JPEG (greyscale)
Single- and multi-page high compression PDF

스캔 to 이메일

Protocols
SMTP gateway, POP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi

Scan to email file types
JPEG, PDF—true colour, greyscale
TIFF, PDF—black and white

스캔 to 폴더

Protocols
SMB

Security
LanMan1.0, NTLMv1/v2, GSS API

Resolution
100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi,  600 x 600 dpi

Search for client folders
By name and ID

Scan to file types
JPEG, PDF—True colour, greyscale
TIFF, PDF—black and white

TWAIN 스캐닝

Scan mode
True colour, greyscale, black and white

Scan resolution
100–1,200 dpi
Note: 1,200 dpi scanning is supported only for A5 and smaller paper size.

팩스 타입
G3 fax, LAN-Fax—optional
팩스 회로
PSTN
팩스 호환성
ITU-T (CCITT), G3—maximum 1 line
팩스 모뎀 속도
2,400 bps–33.6 Kbps with automatic shift down
팩스 압축 방법
MH, MR, MMR
팩스 해상도
200 x 100 dpi—8 x 3.85 lines/mm
200 x 200 dpi—8 x 7.7 lines/mm
G3 팩스 전송 속도
3 seconds approximately—ITU-T No. 1 chart, TTI off, MFT off
팩스 SAF 메모리 용량
4 MB
단축번호
400 numbers
암호화

Authentication password

인증
User authentication—Windows and LDAP via Kerberos, basic, user code
802.1x wired authentication
Quota setting/Account limit
Windows
PCL 6, PostScript 3
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows Server 2012
Windows 8.1
Windows Server 2012 R2
Windows 10
Windows Server 2016
Windows Server 2019
Macintosh
OS X Native v10.11 or later—PostScript 3 only
Unix
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2
표준
@Remote Embedded
Web Image Monitor
옵션

Card Authentication Package
Device Manager NX
Enhanced Locked Print NX and FlexiServer
GlobalScan NX (from May 2019, firmware upgrade necessary for devices manufactured prior)
Printer Driver Packager NX
Smart Operation Panel Designer v1.43 or newer

전원
220–240 V, 50/60 Hz, 8 Amps
소비 전력
1,550 W or less—mainframe, maximum power
500 W or less—printing
113 W or less—Ready Mode
55 W or less—Low Power Mode
1 W or less—Energy Saver Mode (Sleep Mode)
일반 전기 소비량(TEC)
1,309 Wh
예열시간
25 seconds—Quick Mode
65 seconds—Normal Mode
전력 절약 모드
30 minutes shift time—to Low Power Mode
1 minute shift time—to Energy Saver Mode (Sleep Mode)
복구 시간

10 seconds or less—from Low Power Mode
13 seconds or less—from Energy Saver Mode (Sleep Mode)

그린 라벨
Blue Angel Mark (BAM)
