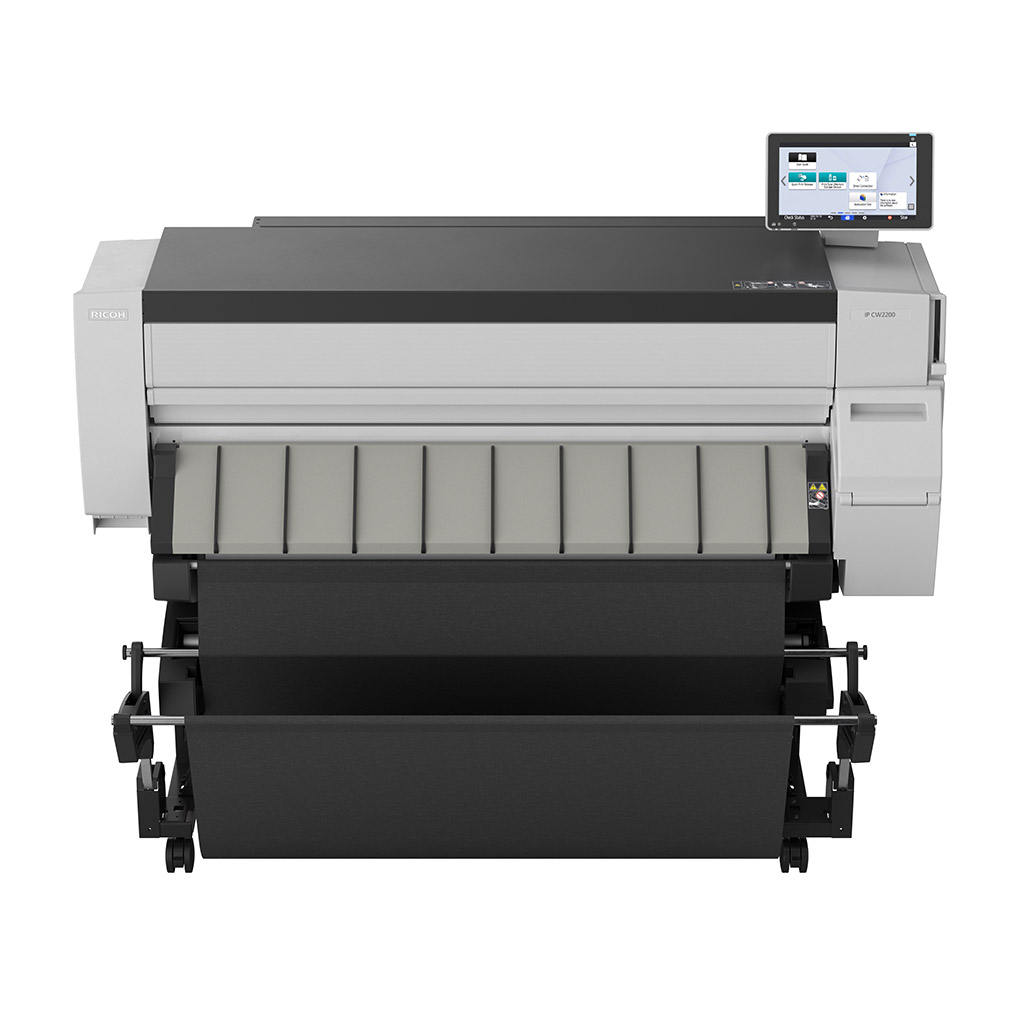

IP CW2200 Colour wide format printer

  • 3.8 ppm—A1 black and white
  • 10.1" Smart Operation Panel
  • Water-resistant ink
  • 33 m max print length
여기에서 기기 구성
Designed for efficiency

Print high quality colour CAD drawings and other large documents (A1/A0) faster, easier, and more securely.

Innovative print technology

Print impressive CAD drawings, from precise line drafts to boldly coloured 3D renders, with the highest accuracy and finest details with Ricoh's waterproof GEL-Jet™ technology.

Security first

The IP CW2200 comes with a range of built-in security measures, which include administrator and user authentication, to restrict access and protect files.

Effortless productivity

Automatic paper roll setting as well as a  10-sheet original stacker and max 33-metre print length make document production a breeze.


  1. Fast and convenient
    Automatic paper roll setting, fast 3.8 ppm A1 print speed, and max 33-metre print length allow work to completed easier and faster than before .
  2. Seamless integration in mixed fleet environments
    Latest generation Smart Operation Panel offers fast and simple navigation that is consistent with Ricoh's state-of-the-art A3 office devices.
  3. Professional and durable prints
    Consistently produce high quality and durable prints that are smudge-free and UV-resistant with Ricoh’s unique waterproof GEL-Jet™ ink.
  4. Fit in anywhere
    The small footprint and contemporary aesthetics make the IP CW2200 ideal for modern environments where space is an issue.

Download PDF brochure

Specifications

기능
Print
컬러
Yes
프린터 컨트롤러 - 표준
GWNX
보관
320 GB
CPU
Intel Atom Processor Apollo Lake-I 1.6 GHz
메모리 - 표준
4 GB
오퍼레이션 패널
10.1" Smart Operation Panel (G2.5)
물리적 크기 (WxDxH)-기기 본체
1,384 x 660 x 1,117 mm
물리적 크기 (WxDxH)-기타
1,108 x 432 x 398 mm—Roll Unit RU6570
무게 - 기기 본체
100 kg
무게 - 기타
14.5 kg—Roll Unit RU6570
월간 평균 사용량
120 m
월간 평균 일람표
Reliability targets are measured using A1 LEF paper width (841 mm) with 6% black and white/20% colour (5% x 4 colours) coverage, 40% colour ratio, and one page per job.
월간 최대 사용량
1,200 m
소모품 용량
Black and white printing
529 copies or 314 m per 200 ml black cartridge
708 copies or 421 m per 100 ml cyan cartridge
699 copies or 415 m per 100 ml magenta cartridge
700 copies or 416 m per 100 ml yellow cartridge

Colour printing
352 copies or 209 m per 200 ml black cartridge
472 copies or 280 m per 100 ml cyan cartridge
466 copies or 277 m per 100 ml magenta and yellow cartridge

Note: All toner yields are measured using A1 LEF paper with 6% black and white/20% colour (5% x 4 colours) coverage, and a 40% colour ratio, 60% black and white ratio.

Waste tank capacity
425 ml or 5 years, whichever comes first
120 m
40% colour ratio

Waste tank use conditions
23 degrees Celcius and 50% humidity
표준 용지입력 용량(매수)

Roll feed
One roll each—297–914 mm wide x unlimited length, or max diameter 176 mm

Bypass
1 sheet—914.4 x 2,000 mm

표준 용지출력 용량(매수)

1 sheet—basket

Note: Basket output can't be stacked because the curvature factor is small.

용지 입력 구성 - 표준
1-sheet bypass tray, 1-roll feeder
용지 입력 구성 - 옵션
1-roll feeder, roll holder
용지 출력 구성 - 표준
1-sheet output basket
지원하는 미디어

Plain paper, recycled paper, inkjet plain paper, tracing paper, matte film, coated paper, coated paper—CAD, special paper

최대 용지 크기
914.4 mm x 33,000 mm
미디어 무게(g/m2)
51–220
인터페이스 - 표준

Mainframe
1000 Base-T/100 Base-TX/10 Base -T (Ethernet)
USB 2.0

Smart Operation Panel
IEEE 802.11 b/g/n (Wireless LAN)1
Bluetooth 4.22
SD Card Slot—SDHC memory card
USB Host Type A—USB Flash memory
USB Host Type A—1 port for USB keyboard (optional)2
USB Host Type mini B—for NFC card reader (optional)2
NFC Tag2

1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
2—Cannot be used for printing
인터페이스 - 옵션
IEEE 802.11 a/g/n (Wireless LAN)
네트워크 프로토콜 - 표준
TCP/IP (IPv4, IPv6)
MIB 지원
Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)

Private
Ricoh original MIB
컬러 출력 속도
2.1 ppm—A1 LEF
흑백 출력 속도
3.8 ppm—A1 LEF
출력 프로세스
On demand Piezo inkjet system
잉크 타입
Pigment-based ink—all four colours
출력 해상도

Speed Priority (Drawing) Mode, Speed Priority Mode
600 x 300 dpi

Standard Mode
600 x 600 dpi

Quality Priority Mode with coated paper, film (matte) and special paper
1,200 x 1,200 dpi

Quality Priority Mode with other paper types
600 x 600 dpi

페이지 설명 언어(PDLs)
Adobe PostScript 3, PDF Direct, RP-GL/GL2, RTIFF, Media Print JPEG, Media Print TIFF
프린터 드라이버
Adobe PostScript 3
폰트
136 European fonts—Adobe PostScript 3
USB/SD에서 인쇄
Supported—JPEG, TIFF, PDF
기타 출력 기능
One direction, Unauthorised copy prevention—(Adobe PostScript 3 driver), WSD printer, Colour matching, POP, Colour Universal Design (CUD), Ink Save Mode—save ratio 50%, available with Adobe PostScript 3, Sample print, Encrypted secure print, Hold print, Stored print, Auto job promotion, Bonjour (Rendezvous) support, Barrier-free colour management mode, Scheduled print, Banner page print (Job sheet print), Classification code, Web print tool, Emergency print, Black Over Print, Tray parameter change from Web Image Monitor, Poster print
인증
User authentication—Windows (via Kerberos), LDAP, basic, user code
802.1x wired authentication
Windows
Windows 8.1
Windows 10
Windows 11
Windows Server 2012/2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
Citrix 지원
XenApp 7.15 LTSR
VirtualApps/Desktops 2012 and later
Macintosh
OS X Native 10.14, 10.15, 11, 12—PostScript 3 only
Unix
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—v6.1, v7.1, v7.2
표준
@Remote Embedded
Web Image Monitor
옵션
RICOH Streamline NX v3
Enhanced Locked Print NX v2
Enhanced Locked Print NX FlexRelease Server v2
Card Authentication Package v2
Card Authentication Package Enterprise Server v2
Device Manager NX Lite
Device Manager NX Accounting
전원
220–240 V, 50/60 Hz, 1.9 A
소비 전력
140 W—maximum power, mainframe
160 W—maximum power, full configuration
75.3 W—operating, black and white
74.7 W—operating, colour
32.8 W—Ready Mode
0.64 W—Energy Saver Mode (Sleep Mode)
예열시간
40 seconds or less
타이머
System reset
소음 수준
Mainframe
21.1 dB—standby, black and white
68.4 dB—printing, black and white
67.5 dB—printing, colour

Full system
67.3 dB—printing, black and white
음압 수준
Mainframe
3.4 dB—standby, black and white
59.7 dB—printing, black and white
56.8 dB—printing, colour

Full system
59.2 dB—printing, black and white
배출 레벨
0.02 mg/h or less—benzene
0.1 mg/h or less—styrene
총 휘발성 유기화합물(TVOC)
0.497 mg/h—ready
15.25 mg/h—printing
플라스틱 성분 식별
All plastic components that weigh more than 25 g are identified in accordance with DIN 548490 and ISO 11469 standards.
