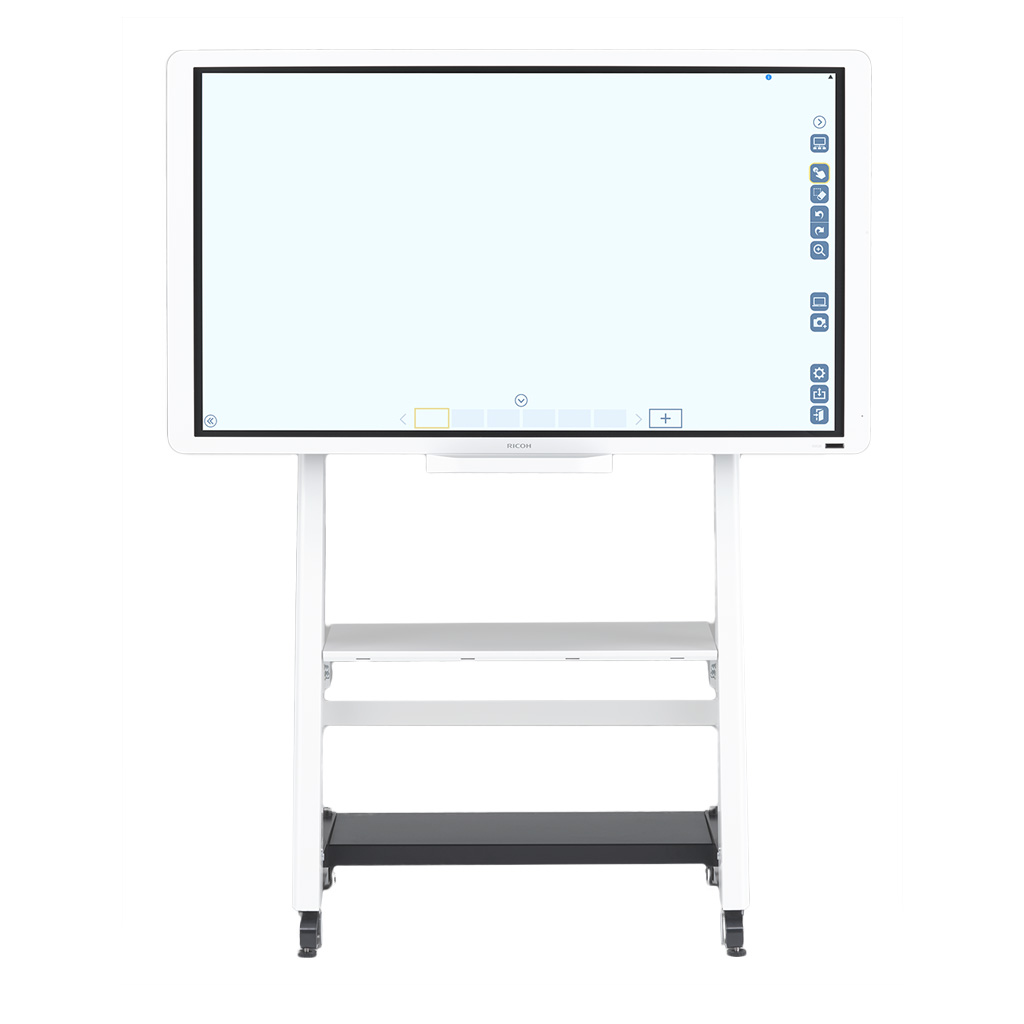

IWB D5520 Interactive whiteboard

  • 55-inch touchscreen
  • 1,920 x 1,080 pixels
  • 450 cd/m2 brightness
  • Optional remote connection

Speed up collaboration across your teams and offices

One tool that provides all you need to achieve aligned teams and offices, no matter where they are. Provide the ability to edit and annotate across locations, then share and distribute easily.

Connect and collaborate in person or across locations

Real time collaboration across different office locations is no longer a challenge. It doesn’t matter if you’re in the same office or continent, Ricoh’s Interactive Whiteboards offer a variety of ways to come together, discuss, agree and share outcomes. Easily connect via Bluetooth or different media. Add Ricoh Streamline NX for card-based authentication to limit device access and keep information secure.

  1. Real time collaboration
    Edit and mark documents directly on the whiteboard. Multiple devices can connect for support across locations.
  2. Portable and convenient
    Lightweight, portable and adaptable enough to hang on a wall or use as a tabletop.
  3. Straight forward connectivity
    Start collaborating instantly with no software. Connect devices with WiFi, VGA, HDMI or USB.
  4. Share results easily
    Whiteboards can be shared by printing or sending a PDF by email, to USB or directly to your office folders, on the cloud or network.

Specifications

操作面板
1 x main switch
7 x tact switch
其他套件

Touch pen
1 pcs

Note: There is also a felt-tipped touch pen available as an option, if additional pens are required.

Remote controller
Yes

Remote controller battery
2 x AAA batteries

Power cord
Yes

RGB cable
Yes

USB cable
Yes—for PC operation

HDMI cable
Yes

Bluetooth dongle
Yes

Quick guide and safety instructions
Yes

OPS slot
Yes x 1

體積(WxDxH)- 設備主體
1,345 × 119 x 770 mm
重量 - 設備主體
43 kg
面板類型
LCD multi touch-screen display
面板尺寸
55 inches
背光模組
LED
投影尺寸(寬X高)
1,209.6 x 680.4 mm
解析度
1,920 x 1,080 pixels
色彩還原
16.7 million colours maximum
色溫
11,000 K—cool
6,500 K—warm
9,300 K—neutral
5,000 K—low blue light
亮度
450 cd/m2
螢幕比例
16:9
對比度
1100:1
顯示設置

Landscape orientation, Picture Mode—including Low Blue Light Mode, Backlight, Contrast, Brightness, Chroma, Phase, Sharpness, Colour temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source PAP Setting, Aspect, Adjust screen, Touch feature, Language, Power Save Control Setting, Touch control settings, Set monitor ID, Advanced information

像素間距
0.63 mm
響應速度
12 ms
視角 (H/V)
Left and right 178 degrees, up and down 178 degrees
音訊

Input
1 x Line 3.5 mm

Output
1 x speaker out

影片

Video input
1 x VGA
1 x HDMI
1 x DVI-D
1 x DisplayPort

Video output
1 x DisplayPort

麥克風

Configuration
Built-in

Mic sensitivity
-28±3 dB

Signal to noise ratio
58 dB

Maximum input level
110 dB

Maximum pickup distance
5 m

觸控技術
ShadowSense
觸控點
10 points maximum—four points with finger
觸控解析度
80 pt/sec—1,920 x 1,080 spatial resolution
觸控輸出
USB 2.0 Type B—not available when controller is installed
偵測系統電子筆
Radio frequency transmission
觸控面板覆蓋玻璃
3 mm anti-glare
連接介面 - 標準

Control
1 x serial RS-232C input
1 x serial RS-232C output
2 x USB 2.0 Type B—for touch control

USB Hub 1
2 x USB 2.0 Type A—for Bluetooth dongle

USB Hub 2
4 x USB 3.0 Type A

Bluetooth
Bluetooth v2.1+EDR v3.0, v4.0

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

連接介面 - 選配
With Ricoh IWB controllers
10Base-T/100Base-Tx/1000Base-T (Wired LAN)
IEEE 802.11a/b/g/n (Wireless LAN)

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.
Windows

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows Embedded 7—Standard
Windows 8—Windows 8, Pro, Enterprise
Windows Embedded 8—Standard
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows 10—Home, Pro, Enterprise, IoT

Single-touch sensor
Windows 7—Home Basic

RICOH Interactive Whiteboard controller Type 1 (optional)
Windows Embedded Standard 8

RICOH OS-free Interactive Whiteboard controller Type 1 (optional)
Windows 7—must be installed after setup at customer site

Macintosh
Mac OS X 10.10–10.12—single-touch sensor
支援語言
On-screen display languages
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish
電源
100–240 V, 50–60 Hz
耗電量
255 W or less—full configuration
0.5 W or less—in Standby Mode
減少環境有害材料
Restriction of Hazardous Substances (RoHS)
環境標準
REACH
EU battery (2006/66/EC)
EU packaging (94/62/EC)
ErP Lot 3
ErP Lot 7
WEEE
Directive 2006/66/EC
Directive 2005/20/EC
安全標準
EN60950-1 (CE marking)
EN60950-1 (TUV)
IEC60950-1 (CB attestation)
AS/NZS 3112:2000—Australia, New Zealand
CNS14336 (RPC)—Taiwan
電磁兼容性(EMC)標準
EN55022
EN61000-3-2 or EN61000-3-12
EN61000-3-3 or EN61000-3-11
EN55024 (CE)
AS/NZS CISPR 22 (C-Tick)
CNS13438 (RPC)—Taiwan
有線LAN標準
NCC—Taiwan
無線LAN標準
EN300328 (CE Marking)
EN301489-1, EN301489-17 (CE Marking)
ACMA—Australia
iDA—Singapore
NCC—Taiwan
WPC—India
操作環境

Temperature
0–40ºC—operating
-20–60ºC—storage

Humidity
10–90%—operating
10–80%—storage
