Edit, scan and print large documents in wide format, affordably.

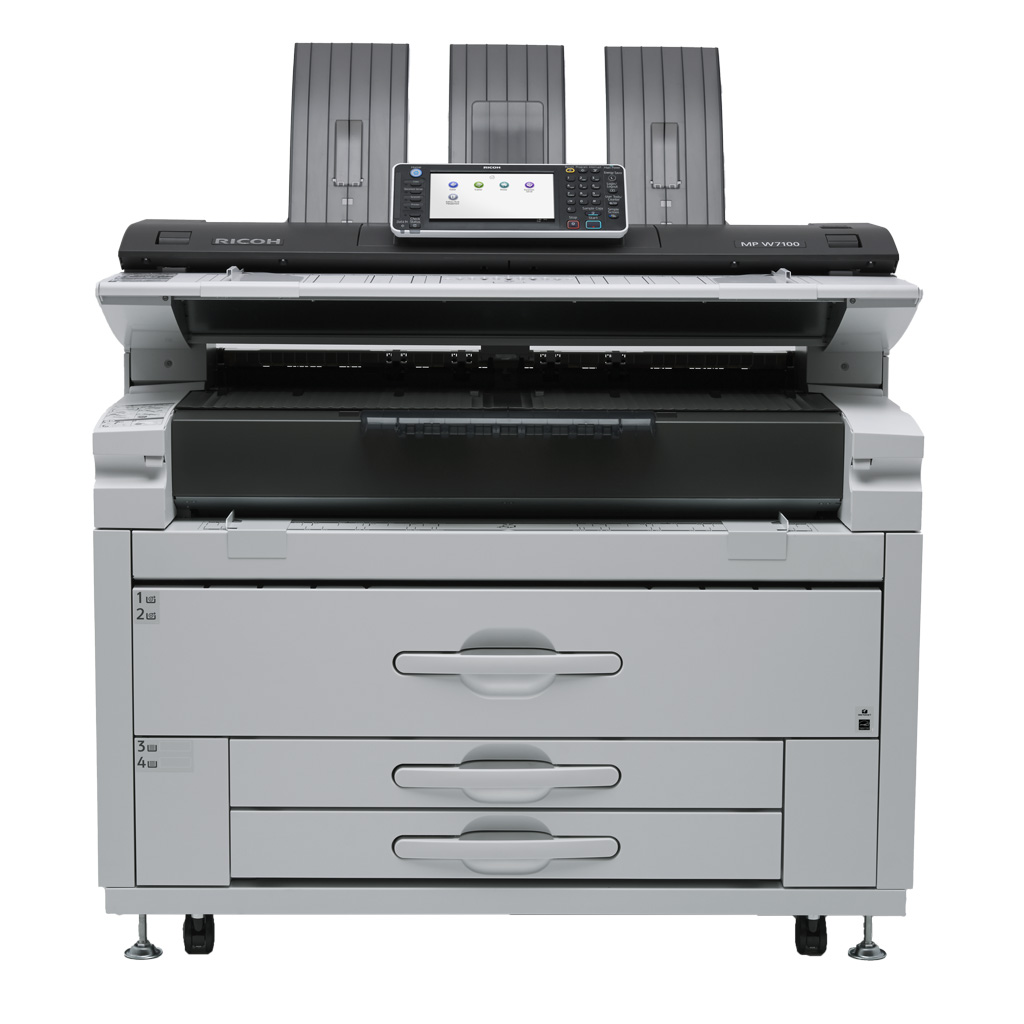

Small office budgets can now do more with CAD documents. The MP W7100SP is an affordable wide format printer that produces big prints, fast and with ease.
Collaborate to save time, money
Engineers, architects, contractors, you need access to print big plans in small spaces, on demand. Shortcut through print tasks with an operation panel that lets you customise settings. Preview documents with thumbnails to check a document before printing. Scan documents and send them to email, folders, FTP or external devices like USB to make light work of last minute changes.
- Think big
Print up to 15,000mm output size - Mark up digital files
Edit files with the optional Ricoh PrintCopy Tool for faster approvals - Remote management
Check on document printing, supply levels and cancel jobs without leaving your desk - Safe and sound data
Advanced encryption tools protect information when you printing or distributing files
Specifications
- 功用
- Copy, print, scan
- 色彩
- No
- 打印機控制器 - 標準
- GWNX
- 存儲
- 320 GB
- 文件伺服器
- 3,000 pages—storage
3,000—document
Maximum 1,000 pages per document - CPU
- 1.06 GHz
- 記憶體 - 標準
- 2.5 GB
- 操作板面
- 9-inch colour LCD operation panel
- 實體尺寸（長闊高）—大型機
- 1,250 x 755 x 1,193 mm
- 實體尺寸（長闊高）—其他
- 1,124 x 369 x 236 mm—Roll feeder RU6540
1,014 x 644 x 236 mm—Paper bank CT6510 - 重量—大型機
- 287 kg
- 重量—其他
- 36 kg—Roll feeder RU6540
38 kg—Paper bank CT6510
- 平均月用打印量
- 1,200 metres
- 最大月用打印量
- 6,500 metres
- 機器壽命
- 1,683,000 copies or 5 years, whichever comes first
- PM循環
- 16,840 copies or 10,000 metres
- 平均呼叫影印量
- 7,700 copies or 4,565 metres
- 平均無故障影印量
- 14,160 copies or 8,400 metres
- 消耗品量
- 1,430 m per 800g toner cartridge
30,000 m (1 kg x 2 bags) developer
Note: 2 bags required for setup.
All yields are measured with the A1/6% Ricoh chart.
- 標準輸入量（張）
- 2 paper rolls—2-roll feeder
1 sheet—bypass tray - 最大輸入量（張）
- 4 paper rolls or 2 paper rolls + 500 sheets (2 x 250 sheets)
- 標準輸出量（張）
Inner
99 sheets plain paper—A1 LEF
10 sheets application paper—A1 LEF
1 sheet filmRear
10 sheets plain paper—A1 portrait, A0 SEF
1 sheet application paper—A1 portrait, A0 SEF
1 sheet film- 紙張輸入配置 - 標準
- 1-sheet bypass tray, 2-roll feeder
- 紙張輸入配置 - 可選
- 2-roll feeder, roll holder, 250-sheet x 2 paper tray
- 紙張輸出配置 - 標準
- Front upper tray, rear straight through tray, rear output tray
- 紙張輸出配置 - 可選
- Original tray, original hanger, multi-stacker
- 最大紙張尺寸
- 914 mm x 15,000 mm
- 媒體量
- 64–110
- 無限紙張供應
- Supported—only with roll feeder option
- 介面 - 標準
- Gigabit Ethernet (10Base-T/100Base-Tx/1000Base-T)
USB 2.0
SD card slot - 介面 - 可選
- IEEE802.11a/g/n (Wireless LAN) with WPA support
IEEE 1284
SD card for NetWare printing
2 x option slots
USB Host interface for third party IC card reader - 網路協議 - 標準
- TCP/IP (IPv4, IPv6)
- 網路協議 - 可選
- IPX/SPX—with NetWare printing option
- MIB 支援
- Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)
SNMP v3 (RFC2574)
Private
Ricoh original MIB
- 影印速度
- 120 mm/second or
10 cpm—A1 LEF - 首次影印時間
- 13 seconds or less—A1 LEF, from roll feeder
- 影印解像度
- 600 dpi
- 原稿尺寸
- 914.4 x 15,000 mm
- 原稿紙張闊度
- 210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 680, 707, 728, 841, 880, 914.4 mm (marking only for 490, 680 mm)
Note: APS and rotate sort do not work for 440, 490, 620, 625, 680, 707, 880 mm - 原稿輸入容量
- Sheet
- 原稿輸出容量
- Rear upper, rear straight through, front upper
- 原稿收紙器
- Rear upper
50 sheets—A1
Stack size—A4–A1 LEF
Rear straight through
100 sheets—A2 LEF or less
1 sheet—A1 LEF or more
Stack size—A2 LEF–A0 SEF - 影印紙張闊度
- 210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914.4 mm
- 最大尺寸
- 914 x 15,000 mm—roll feeder
914 x 2,000 mm—bypass tray - 最小尺寸
- 210 x 210 mm
- 設定位置
- Centre
- 縮放比例
- 1:1
- 紙張剪裁模式
- Preset size, synchronised cut, variable cut
- 灰階
- 256 levels—scanning
2 levels—writing - 影像移位
- Front, rear, left, right—0 to ± 200 x 1 mm
- 預設工作頁數
- A0—100 or more
A1—100 or more
A2—200 or more
A3—400 or more
A4—400 or more - 緊急按鈕
- Standard—key
- 清空資訊
- Roll—5 degrees
Tray—3 degrees - 縮放範圍
- 25%–400% in 0.1% steps
- 放大比例
- 141.4%, 200%, 282.8%, 400%
- 縮放比例
- 25%, 35.4%, 50%, 70.7%
- 影像濃度調節
- Lighter to darker, 9 levels
- 影像濃度調節
- 9 steps—automatic, manual
- 影印模式
- Text mode, Text/Photo mode, Photo mode, Drawing mode, Generation Text mode, Generation Photo mode, Pasted Original mode, Background Line mode, Highlighter mode
- 紙張選擇
Automatic Paper Selection (APS)
1st roll tray—available when roll feeder option is installed
2nd roll tray—only available when 2-roll feeder option is installed
A2 cutsheet tray (optional)
Bypass tray- 自動紙張選擇
- Supported
- 急件插入影印
- Supported
- 電子分類
- Standard—not available for custom sizes 880, 800, 707, 680, 660, 625, 620, 490, 440 mm
- 邊界／消除調節
- Margin adjustment0–200 mm in 1 mm steps
Erase
Edge—3–50 mm
Inside—5 areas (A0 or less)
Outside—1 area (A0 or less) - 影像設計
- Image overlay, format overlay, negative or positive, mirroring, double copy, repeat copy
- 戳記
- Preset
8 stamps; upper right, upper centre, upper left, centre right, centre, centre left, lower right, lower centre, lower left
User presets
Maximum 40 stamps; upper right, upper centre, upper left, centre right, centre, centre left, lower right, lower centre, lower left
Date stamp
Upper right, upper centre, upper left, lower right, lower centre, lower left
Page stamp
Upper right, upper centre, upper left, lower right, lower centre, lower left - 其他影印功能
- Non-standard size input, original insertion direction, designated width scan, half speed scan, sample copy (1st set out of multiple sets is printed) , partial copy (210–30,000 mm length can be defined as partial), combine (up to A2 size), clear (clear/stop key), copy auto clear, auto off, Energy Saver key, auto Energy Save mode, reset key, auto start, user code, key operator code, display of paper type, Auto reduce and enlargement, user auto reduce and enlargement, preset reduce and enlargement, zoom, repeat copy—1-99 (10-key input)
- 色彩列印速度
- 黑白列印速度
- 10 ppm
- 列印程序
- Electro-photographic printing
- 定影
- Method
Heat and pressure
Roller materials
Teflon—heat roller
Silicone rubber—pressure roller
Fusing oil
Minimal used - 墨粉顯影
- Magnetic brush dual component dry toner system
- 列印解像度
- 600 dpi
- 頁面描述語言
- PostScript 3, RPCS, HP-GL, HP-GL2 (HP-RTL), TIFF (CALS)
- 印表機驅動程式解像度
RPCS
600 dpiPostScript 3
300, 600 dpiRP-GL/RP-GL2
400, 600 dpiRTIFF
200, 300, 400, 600 dpi- 字體
- 136 European fonts—PostScript 3
- 支援文件格式
- PrintTool software
HP-GL, HP-GL2, HP-RTL, TIFF, WMF, BMP, CALS, PCX, JPEG, PDF (up to v1.7), Calcomp, XLS, DOC/DOCX, PPT
Note: XLS, DOC/DOCX, PPT file formats are supported only when printing status is ready with installed printer driver
PrintCopyTool software—optional
DWG, DXF, DWF - 非列印範圍
- Leading edge—5 mm
Trailing edge—5 mm
Each side—5 mm - 其他列印功能
- Sample print, Locked print, Hold print, Stored print, Stored print (shared), Store and print, Store and print (shared), PDF Direct Print, Counter blade cleaning system, Charge system—Scorotron (corona charge), File format converter
- 掃瞄速度
- 42.5–340 mm/second—black and white
50–200 mm/second—colour - 掃瞄模式
- CIS
- 色彩掃瞄
- Supported
- 掃瞄類型
- Black and white
Drawing (default), Text, Text/Photo, Text/Drawing, Photo, Greyscale
Colour
Text/Photo, Photo - 掃瞄解像度
600 dpi, TWAIN—1,200 dpi
Optical resolution
Scan to email/folder—150, 200 (default), 300, 400, 600 dpi
TWAIN—150–1,200 dpi- 自動偵測尺寸
- Auto detect, preset paper size, custom size
- 原稿尺寸
- 914.4 x 15,000 mm—maximum, 210 x 210 mm—minimum
- 影像編輯
- Erase border, positive/negative, mirror image
- 影像濃度調節
- Lighter to darker, 9 levels
- 掃瞄至電子郵件
- Requirement
SMTP (mail server) gateway and TCP/IP
Authentication
SMTP, POP before SMTP authentication
Resolution
150, 200 (default), 300, 400, 600 dpi
Supported file types
Multipage TIFF (default), single page TIFF, single- and multipage PDF, single page JPEG, single- and multipage high compression PDF, PDF/A - 掃瞄至電子郵件—其他功能
- Compression method
1 bit—MH, MR, MMR (default). It can be changed in SP mode.
JPEG—Supported (default)
High compression—Not supported
Maximum email addresses
2,000 addresses
Maximum group address
Standard 100 groups (Maximum 500 addresses per group)
Maintain email addresses
Via operation panel, Web Image Monitor, SmartDeviceMonitor for Admin
Address search
Mainframe address book—email and folder search available
LDAP—email address search available
Maximum addresses per send
500—from HDD
100—Direct input
100—LDAP
Attention
To, cc, bcc
Body message
Manual input—supported
User presets—Not supported
Preset message—This e-mail includes attached file sent from <device name>.
Scan to email size
With restriction—128–102,400 KB, default 2,048 KB
Without restriction—975 MB
Other features
PDF security setting, program user setting, divide and send email - 掃瞄至資料夾
- Protocols
SMB, FTP, NCP
Security
Client folder login (login name and password), encryption of login name and password during transmission
Resolution
150, 200 (default), 300, 400, 600 dpi
Search client folder
SMB—browsing directly to the designated folders
FTP—by client folder name
Supported file types
Multipage TIFF (default), single page TIFF, single- and multipage PDF, single page JPEG, high compression PDF, PDF/A - 掃瞄至資料夾—其他功能
- Register client folder address
Maximum 2,000 folders
Maintain client folder address
Direct input on operation panel, Web Image Monitor, SmartDeviceMonitor for Admin
Destination client folder address input via operation panel
SMB—network path->client folder->password
FTP server—network path->user account->password
Maximum folders per send
50
Group address
Maximum 100 destinations (to folder 50, to email 100)
Scan file size
Up to 2,000 MB
Scan to folders size when combined with scan to email
128–45,389 KB, default—2,048 KB (with restriction)
Other features
PDF security setting, program user setting, resend - TWAIN掃瞄—其他功能
- Standard size
A4–A0, B4–B1
Image adjustment
XY resolution, brightness, contrast, threshold/gamma adjustment, halftone pattern, rotation, mirror, tone reversal
Memory
Minimum required memory for operating system + 8 MB
CPU
Pentium 150 MHz or more, or minimum required CPU for operating system
HDD
More than 100 MB of disk space is required
Network protocols
TCP/IP, UDP/IP, ICMP/IP - TWAIN掃瞄
- Resolution
Black and white
150–1,200 dpi in 1 dpi steps
Colour
150–600 dpi
Scan mode
Standard, photo, OCR, filing - 其他掃瞄功能
- Preview before transmission, automatic file naming and number setting, simultaneous transmission, Encrypted PDF transmission
- 數據覆寫保安系統（DOSS）- 可選
- Type H—supports the requirements for Common Criteria certification, conforming to IEEE 2600.1
- 加密功能
- Authentication password encryption
Encrypted communication over Secure Sockets Layer (SSL)
HDD data encryption—optional HDD encryption unit is required
Locked print data encryption
Address book encryption
Encryption of data sent via Scan to email (S/MIME)
PDF encryption (password and transmission) - 認證
- User authentication—Windows (via Kerberos), LDAP, basic, user code
Administrator authentication
802.1x wired authentication - 其他安全功能
- Secure Internet Protocol communication (IPsec)
SNMPv3 support
Restrict use of destination for ‘scan to’ functions
- Windows
- PostScript 3
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows Server 2003
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2 - Macintosh
- Mac OS 10.7 or later—PostScript 3
- 支援語言
- English, Brazilian Portuguese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Romanian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish
- 標準
- @Remote Embedded
Smart Device Monitor for Admin
Web Image Monitor
Device SDK - 可選
- @Remote Office
Device Manager NX
PrintCopyTool
- 電源
- 220–240 V, 50–60 Hz, 16 A (max)
- 耗電量
- 2,100 W or less—maximum power
1 Wh or less—Energy Saver Mode (Sleep Mode) - 預熱時間
- 120 seconds or less
- 恢復時間
- 30 seconds or less—from Auto Off Timer (Off Mode)
120 seconds or less—from Energy Saver Mode (Sleep Mode) - 聲功率級
- 57 dB or less—standby
73 dB or less—copying - 排放水平
- Ozone—3.0 mg/h or less
Dust—4.0 mg/h or less
Styrene—1.8 mg/h or less
Benzene—0.05 mg/h
Total Volatile Organic Compounds (TVOC)—18 mg/h - 減少環境敏感材料
- All free
- 環境標準
- Energy Star
EPEAT Gold
R&TTE—2.4 GHz, 5 GHz
C-Tick—Australia, New Zealand
EN62311 (CE marking)
REACH
Directive 2006/66/EC
Directive 94/62/EC
WEEE
India E-waste
RECSI - 安全標準
- CE Marking
GS Mark (TUV certification authority)
CB Certification
CCC
EMC
EMC—Australia (RCM Mark)
NZEMC (RCM Mark) - 塑膠成分識別
- All plastic components weighing more than 25 g are identified in accordance with DIN548490 and ISO11469.
