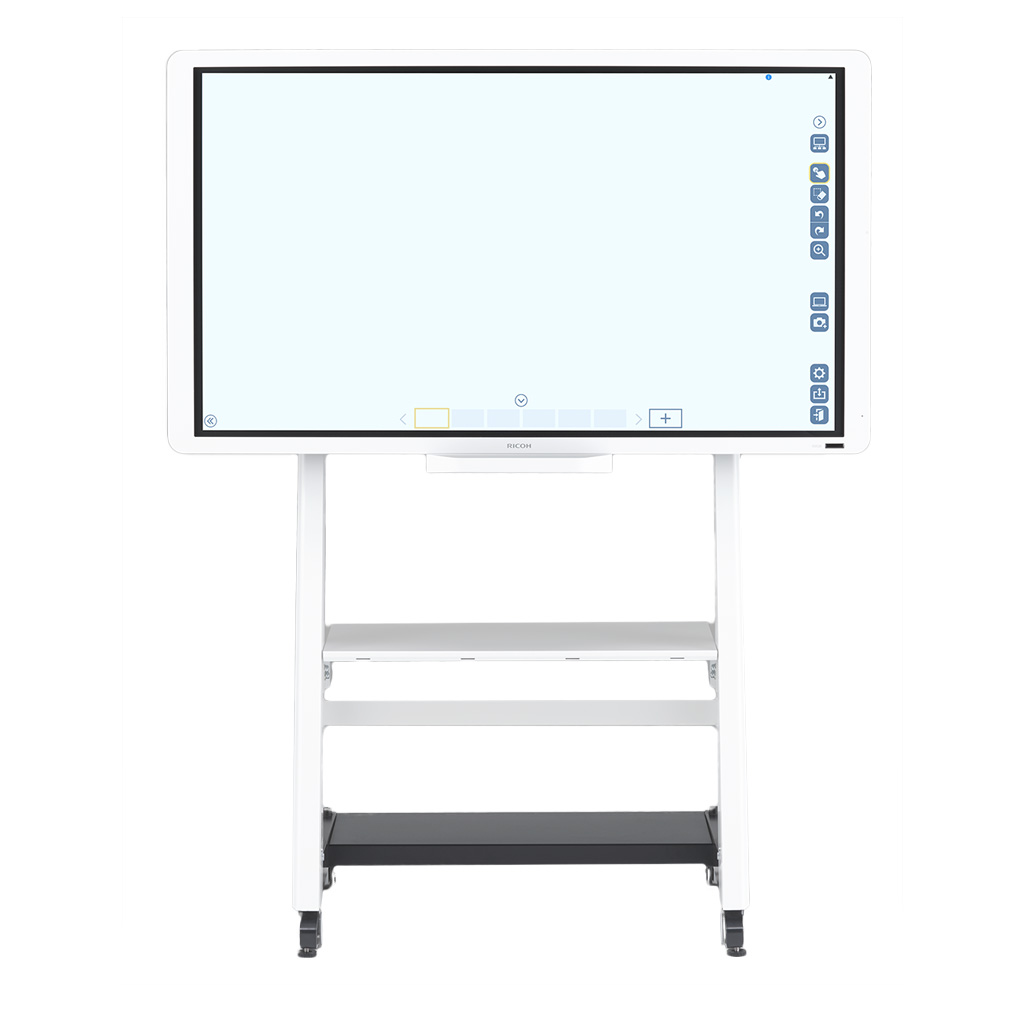

IWB D5520 Interactive whiteboard

  • 55-inch touchscreen
  • 1,920 x 1,080 pixels
  • 450 cd/m2 brightness
  • Optional remote connection

Speed up collaboration across your teams and offices

One tool that provides all you need to achieve aligned teams and offices, no matter where they are. Provide the ability to edit and annotate across locations, then share and distribute easily.

Connect and collaborate in person or across locations

Real time collaboration across different office locations is no longer a challenge. It doesn’t matter if you’re in the same office or continent, Ricoh’s Interactive Whiteboards offer a variety of ways to come together, discuss, agree and share outcomes. Easily connect via Bluetooth or different media. Add Ricoh Streamline NX for card-based authentication to limit device access and keep information secure.

  1. Real time collaboration
    Edit and mark documents directly on the whiteboard. Multiple devices can connect for support across locations.
  2. Portable and convenient
    Lightweight, portable and adaptable enough to hang on a wall or use as a tabletop.
  3. Straight forward connectivity
    Start collaborating instantly with no software. Connect devices with WiFi, VGA, HDMI or USB.
  4. Share results easily
    Whiteboards can be shared by printing or sending a PDF by email, to USB or directly to your office folders, on the cloud or network.

Specifications

오퍼레이션 패널
1 x main switch
7 x tact switch
포함 사항

Touch pen
1 pcs

Note: There is also a felt-tipped touch pen available as an option, if additional pens are required.

Remote controller
Yes

Remote controller battery
2 x AAA batteries

Power cord
Yes

RGB cable
Yes

USB cable
Yes—for PC operation

HDMI cable
Yes

Bluetooth dongle
Yes

Quick guide and safety instructions
Yes

OPS slot
Yes x 1

물리적 크기 (WxDxH)-기기 본체
1,345 × 119 x 770 mm
무게 - 기기 본체
43 kg
패널 유형
LCD multi touch-screen display
패널 크기
55 inches
백라이트
LED
유효 디스플레이 영역
1,209.6 x 680.4 mm
해상도
1,920 x 1,080 pixels
색재현
16.7 million colours maximum
색온도
11,000 K—cool
6,500 K—warm
9,300 K—neutral
5,000 K—low blue light
밝기
450 cd/m2
종횡비
16:9
대조
1100:1
디스플레이 설정

Landscape orientation, Picture Mode—including Low Blue Light Mode, Backlight, Contrast, Brightness, Chroma, Phase, Sharpness, Colour temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source PAP Setting, Aspect, Adjust screen, Touch feature, Language, Power Save Control Setting, Touch control settings, Set monitor ID, Advanced information

픽셀 피치
0.63 mm
응답 속도
12 ms
시야각 HV
Left and right 178 degrees, up and down 178 degrees
오디오

Input
1 x Line 3.5 mm

Output
1 x speaker out

비디오

Video input
1 x VGA
1 x HDMI
1 x DVI-D
1 x DisplayPort

Video output
1 x DisplayPort

마이크

Configuration
Built-in

Mic sensitivity
-28±3 dB

Signal to noise ratio
58 dB

Maximum input level
110 dB

Maximum pickup distance
5 m

터치 기술
ShadowSense
터치 포인트
10 points maximum—four points with finger
터치 해상도
80 pt/sec—1,920 x 1,080 spatial resolution
터치 출력
USB 2.0 Type B—not available when controller is installed
감지 시스템 전자펜
Radio frequency transmission
터치 패널 커버 유리
3 mm anti-glare
인터페이스 - 표준

Control
1 x serial RS-232C input
1 x serial RS-232C output
2 x USB 2.0 Type B—for touch control

USB Hub 1
2 x USB 2.0 Type A—for Bluetooth dongle

USB Hub 2
4 x USB 3.0 Type A

Bluetooth
Bluetooth v2.1+EDR v3.0, v4.0

Open Pluggable Specification (OPS) controller slot
1 slot with detachable cover

인터페이스 - 옵션
With Ricoh IWB controllers
10Base-T/100Base-Tx/1000Base-T (Wired LAN)
IEEE 802.11a/b/g/n (Wireless LAN)

Remote connection
Allows real-time sharing of content and drawings.
Remote connection is available in the same network (intranet) and VPN environments.
Windows

Multi-touch sensor
Windows 7—Ultimate, Professional, Home Premium
Windows Embedded 7—Standard
Windows 8—Windows 8, Pro, Enterprise
Windows Embedded 8—Standard
Windows 8.1—Windows 8.1, Pro, Enterprise
Windows 10—Home, Pro, Enterprise, IoT

Single-touch sensor
Windows 7—Home Basic

RICOH Interactive Whiteboard controller Type 1 (optional)
Windows Embedded Standard 8

RICOH OS-free Interactive Whiteboard controller Type 1 (optional)
Windows 7—must be installed after setup at customer site

Macintosh
Mac OS X 10.10–10.12—single-touch sensor
지원 언어
On-screen display languages
Japanese, English, French, German, Italian, Spanish, Dutch, Russian, Polish, Swedish, Norwegian, Finnish
전원
100–240 V, 50–60 Hz
소비 전력
255 W or less—full configuration
0.5 W or less—in Standby Mode
환경 민감 물질 저감
Restriction of Hazardous Substances (RoHS)
환경 표준
REACH
EU battery (2006/66/EC)
EU packaging (94/62/EC)
ErP Lot 3
ErP Lot 7
WEEE
Directive 2006/66/EC
Directive 2005/20/EC
안전 표준
EN60950-1 (CE marking)
EN60950-1 (TUV)
IEC60950-1 (CB attestation)
AS/NZS 3112:2000—Australia, New Zealand
CNS14336 (RPC)—Taiwan
전자기 호환성(EMC) 표준
EN55022
EN61000-3-2 or EN61000-3-12
EN61000-3-3 or EN61000-3-11
EN55024 (CE)
AS/NZS CISPR 22 (C-Tick)
CNS13438 (RPC)—Taiwan
유선 LAN 표준
NCC—Taiwan
무선 LAN 표준
EN300328 (CE Marking)
EN301489-1, EN301489-17 (CE Marking)
ACMA—Australia
iDA—Singapore
NCC—Taiwan
WPC—India
작동 환경

Temperature
0–40ºC—operating
-20–60ºC—storage

Humidity
10–90%—operating
10–80%—storage
